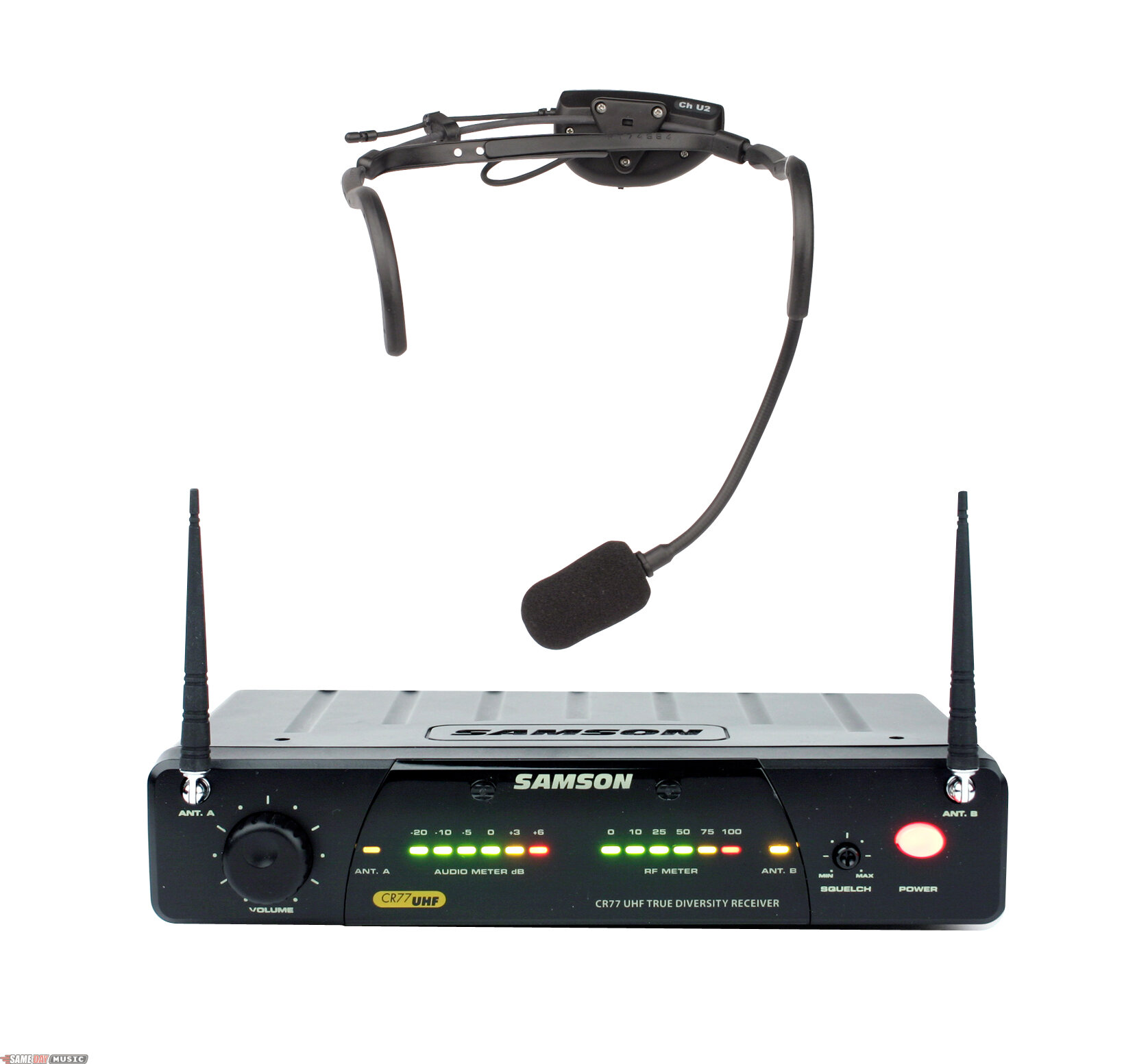

AirLine 77 is Samson's newest version of the AirLine series that features the first micro-technology transmitters in the industry. Traditional wireless systems consist of belt-packs and wires that hinder the performer. With AirLine, you get a true wireless system because there are no belt-packs and no cables, allowing the user complete freedom.
The AirLine headset transmitters feature the Samson QV Vocal microphone elements. QV headsets were designed to go around the back of your head rather than over the top. This allows the transmitter to be attached directly to the headband, out of the way and completely unobtrusive, while being comfortable and secure during performances or exercise routines.
All of the AirLine transmitters operate on inexpensive and lightweight AAA batteries that offer 14 hours of operation on a single battery.
The CR77 true-diversity half-rack UHF receiver works flawlessly with all AirLine UHF transmitters. The CR77 receiver features a front panel display with large multi-segment audio level and RF level LED meters, and a large rotary volume knob allows easy adjustment of audio output. The new synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The rear panel features balanced XLR and un-balanced 1/4-inch outputs allowing flexible connection options. Two CR77 receivers can be rack mounted together in a single space rack adapter available as an added accessory.
CR77 Receiver
The heart of Airline 77 is the new CR77 Receiver. This true-diversity half-rack unit with PLL frequency control works with all of the Airline transmitters. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference.
AH1 Headset Transmitters and QV Mic Element
For on stage performance, public speaking, DJs, health club applications. Samson makes a comfortable, lightweight headset mic with no belt pack. QV Performance The highest performance level attainable from an element of this size and type. Designed with music performance in mind.
The QV headset mic allows drummers, keyboardists and other musicians to perform "hands free" vocals without affecting their playing technique. It produces a full-range sound with a enough definition to ensure that every word is heard clearly, even at higher volume levels.
Channel Frequencies
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz
Receiver (CR77)
Type of Reception: Single Superheterodyne, True Diversity
Oscillation Type: Synthesized PLL Frequency Control
D-emphasis: 50 μsec
IF Frequency: 10.7 MHz
Antenna: 1/4 Wavelength Rod
In/Out: DC Inlet, Balanced Output, Unbalanced Output
Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)
Level Controls: Volume, Squelch
Operating Voltage: 12 Volts + 10 %
Current Consumption: 160 mA (at all LED lights)
Receiving Frequency Range: 801 - 805 MHz
Sensitivity: 18 dBμ @ THD 2%
Squelch Sensitivity: 0 - 40 dBμ (Adjustable)
Selectivity: ± 150 kHz (AF Out Ratio -60 dB)
S/N Ratio (Overall): 90 dB (w/ IHF-A fi lter)
Residual Noise: 90 dBv (w/ IHF-A fi lter)
Band Mute: ± 50 kHz / ± 100 kHz (RF IN: 46 dBu EMF)
AF Frequency Response: 50 Hz - 15 kHz (± 3 dB overall)
Audio Output Level - Unbalanced: 0 dBv
Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch
Selectable
Audio Output Impedance/Unbalanced: 5 k Ohms
Audio Output Impedance/Balanced: 600 Ohms
Dimensions: 8.5 in. (w) x 1.75 in. (h) x 4.6 in.(d) 216 mm (w) x 44 mm (h) x 116 mm (d)
Weight: .75 lb / 340 g
QV Headset
Sophisticated condenser mic element
Hypercardioid pattern helps eliminate feedback
50 Hz to 18 kHz frequency response for a balanced, full-range sound
Withstands high sound pressure levels
Lightweight and comfortable design
Adjustable metal gooseneck for easy mic positioning
Locking detachable P3 connector reduces cable/connection problems
PM4 phantom power adapter included
