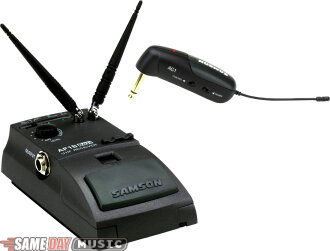

Samson Airline AP1B Bass Wireless System with Angled Plug
The revolutionary AirLine transmitter plugs-in directly to your bass. There is no body pack!
Product rated 7.7 out of 10 (13 ratings)
Read Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
ADDITIONAL VIEWS:
Main
Alt
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

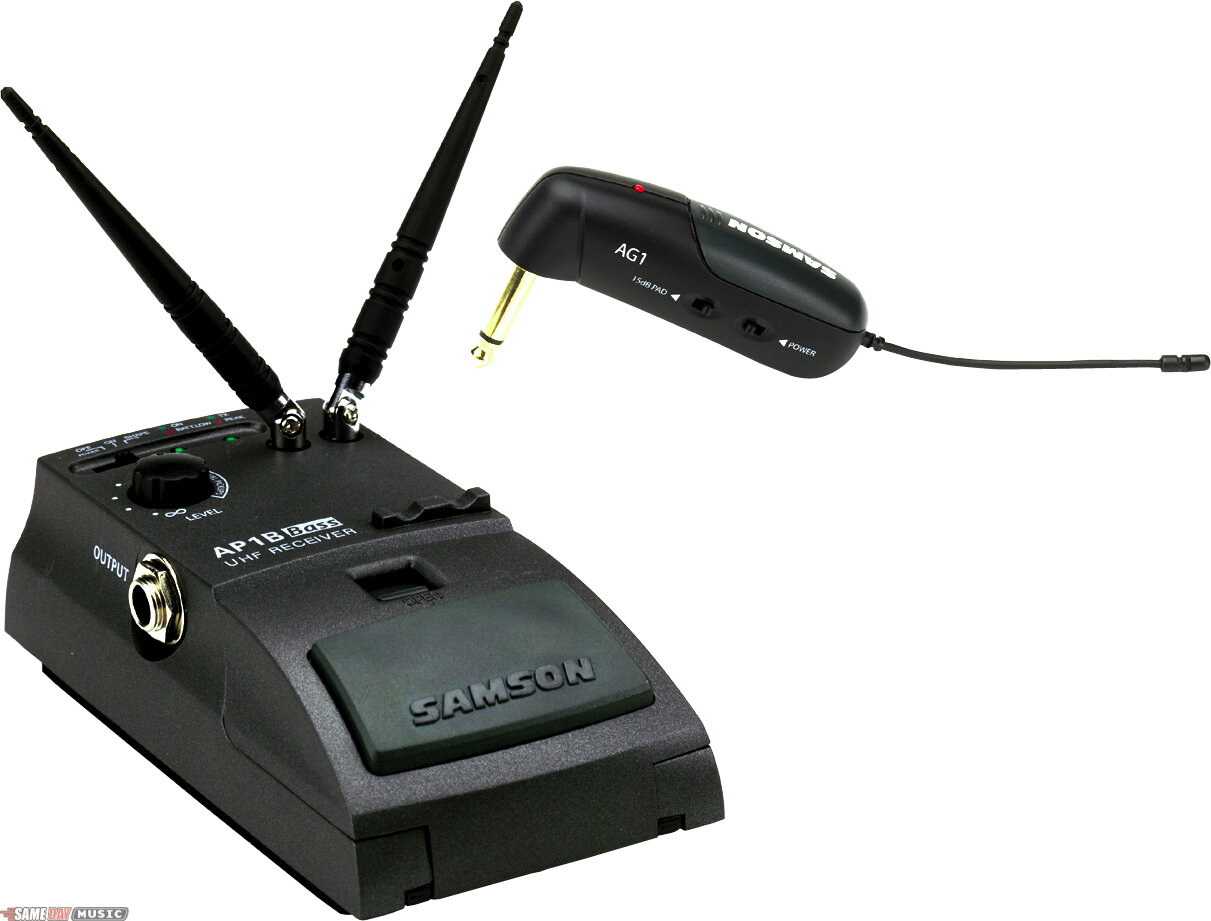

The ultimate in comfort, convenience, and performance, feather-light AIRLINE Series transmitters have made bulky beltpacks and cumbersome connecting cables obsolete. AIRLINE'S super efficient UHF circuits operate 14 hours on a single "AAA" battery introducing a new level of freedom to professional wireless performance. The revolutionary AirLine transmitter plugs-in directly to your bass. There is no body pack! The AIRLINE Bass system includes the AP1B UHF Receiver (looks like a stomp-box) featuring 1/4 in. unbalanced outputs.
The Airline UHF Bass Guitar System eliminates body packs with a tiny micro transmitter that plugs right into the bass guitar. The AP1B, the system's receiver, is designed to easily integrate into an effect pedal setup and features a shape circuitry yielding a fat bottom end and fullness never before heard in a wireless system for bass.
The revolutionary AirLine "plug-in" AG1 transmitter comes is designed for traditional end-mount inputs. Less than half the size of conventional body packs, this miniaturized transmitter runs on a tiny triple-A battery with 14-hours of battery life. It features an array of on-board controls: A Power On/Off and Mute switch, red/green LED for Power On/Off, a Peak LED and an Input Level control for different pickups. And UHF (Ultra High Frequency) means clearer frequencies with less interference.
Designed for use with your compact effect pedals, the APB1 diversity receiver gives you reception you can always depend on. It features a 1/4 in. output jack, Power switch, Peak LED and a Volume control. You can use a 9 volt battery or an AC adapter to power the receiver. When you unplug your the unit, the battery is disabled to conserve power.
The Airline UHF Bass Guitar System eliminates body packs with a tiny micro transmitter that plugs right into the bass guitar. The AP1B, the system's receiver, is designed to easily integrate into an effect pedal setup and features a shape circuitry yielding a fat bottom end and fullness never before heard in a wireless system for bass.
The revolutionary AirLine "plug-in" AG1 transmitter comes is designed for traditional end-mount inputs. Less than half the size of conventional body packs, this miniaturized transmitter runs on a tiny triple-A battery with 14-hours of battery life. It features an array of on-board controls: A Power On/Off and Mute switch, red/green LED for Power On/Off, a Peak LED and an Input Level control for different pickups. And UHF (Ultra High Frequency) means clearer frequencies with less interference.
Designed for use with your compact effect pedals, the APB1 diversity receiver gives you reception you can always depend on. It features a 1/4 in. output jack, Power switch, Peak LED and a Volume control. You can use a 9 volt battery or an AC adapter to power the receiver. When you unplug your the unit, the battery is disabled to conserve power.
TECHNICAL DESCRIPTION
Channel Frequencies
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz
Transmitter RF Output Power (5mW): -4dB Minimum, +3dB Maximum
Frequency Stability: -40kHz Minimum, 40kHz Maximum
Spurious: 1uW
Modulation Factor: 13kHz Minimum, 15kHz Typical, 17kHz Maximum, Input 1kHz-10dBv
Pre-emphasis: 50 usec
Maximum Input Level: +2 dBv
Input Impedance: 2K ohms
THD: < 2% (1 kHz deviation 15kHz)
Audio Frequency Response: 50Hz - 15kHz (+/-3.5 dB)
Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum
Current Consumption: 60mA Typical
Battery Life: 14 Hours (AAA size battery)
Output: 6.3mm / 1/4 in. mono Jack
Antenna: Permanently attached 1/4 wave length wire
Controls: Power Switch, 15 dB Pad Switch
Indicators: Power On (LED Flash), Low Battery (LED On when battery less than 1.1V)
Receiver (AP1) Receiving Frequencies: USA 801-805MHz (U1-U6), Europe 863-865 (E1-E4), One frequency in Channel Plan
Frequency Type: F3E
Modulation Type: Variable Reactance Modulation
Type of Reception: Single superheterodyne
OSC (Oscillator) System: Crystal controlled OSC (oscillator)
Local Oscillator Frequency: 79MHz Range
Intermediate Frequency: 10.7 MHz
Operating Distance: 100m (328 ft) receiver in sight
Noise Reduction: Compander type
Deemphasis: 50u/sec
Output Connector: 6.3mm / 1/4 in diameter phone jack (unbalanced)
Power Input Jack: 5.5mm/.21in diameter
Operating Temperature: 0C - +50C
Storage Temperature: -20C - +70C
Receiving Sensitivity: More than S/N60 dB (less than 2%) at 21 dBuv input
Squelch Sensitivity: 17dBuv +/-4dBuv
S/N Ratio (when comparing to S=0dBv):
More than 95dB (IHF-A)
More than 90dB (IHF-A)
Audio Output Level at div. f15 kHz: Unbalanced output 0dBv
Maximum Output Level: Audio OUT +8dBv +/-3dB at 3% distortion div. f36kHz
Audio Frequency Response: 50Hz - 15kHz (at -30dBv +/-4dB output)
THD (at SG output 56 dBuv): Less than 1% (at div. f20kHz AF 1 kHz)
Output Impedance: Unbalanced output 5K - 10K ohms
Power: AC adapter (12DVC/more than 200mA) or 9 V battery
Current Consumption: Less than 70mA Max
Peak LED Lighting div. frequency: Div. f23kHz +/-3kHz (at AF output approx. +7dBv)
Antenna: Dual 1/4 wave length rod antennas
Controls:
Audio level volume (front)
Squelch level volume (rear)
Display:
2-color LED x 2
Power On (Green) / Batt (Red) + TX (Green) / Peak (Red)
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz
Transmitter RF Output Power (5mW): -4dB Minimum, +3dB Maximum
Frequency Stability: -40kHz Minimum, 40kHz Maximum
Spurious: 1uW
Modulation Factor: 13kHz Minimum, 15kHz Typical, 17kHz Maximum, Input 1kHz-10dBv
Pre-emphasis: 50 usec
Maximum Input Level: +2 dBv
Input Impedance: 2K ohms
THD: < 2% (1 kHz deviation 15kHz)
Audio Frequency Response: 50Hz - 15kHz (+/-3.5 dB)
Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum
Current Consumption: 60mA Typical
Battery Life: 14 Hours (AAA size battery)
Output: 6.3mm / 1/4 in. mono Jack
Antenna: Permanently attached 1/4 wave length wire
Controls: Power Switch, 15 dB Pad Switch
Indicators: Power On (LED Flash), Low Battery (LED On when battery less than 1.1V)
Receiver (AP1) Receiving Frequencies: USA 801-805MHz (U1-U6), Europe 863-865 (E1-E4), One frequency in Channel Plan
Frequency Type: F3E
Modulation Type: Variable Reactance Modulation
Type of Reception: Single superheterodyne
OSC (Oscillator) System: Crystal controlled OSC (oscillator)
Local Oscillator Frequency: 79MHz Range
Intermediate Frequency: 10.7 MHz
Operating Distance: 100m (328 ft) receiver in sight
Noise Reduction: Compander type
Deemphasis: 50u/sec
Output Connector: 6.3mm / 1/4 in diameter phone jack (unbalanced)
Power Input Jack: 5.5mm/.21in diameter
Operating Temperature: 0C - +50C
Storage Temperature: -20C - +70C
Receiving Sensitivity: More than S/N60 dB (less than 2%) at 21 dBuv input
Squelch Sensitivity: 17dBuv +/-4dBuv
S/N Ratio (when comparing to S=0dBv):
More than 95dB (IHF-A)
More than 90dB (IHF-A)
Audio Output Level at div. f15 kHz: Unbalanced output 0dBv
Maximum Output Level: Audio OUT +8dBv +/-3dB at 3% distortion div. f36kHz
Audio Frequency Response: 50Hz - 15kHz (at -30dBv +/-4dB output)
THD (at SG output 56 dBuv): Less than 1% (at div. f20kHz AF 1 kHz)
Output Impedance: Unbalanced output 5K - 10K ohms
Power: AC adapter (12DVC/more than 200mA) or 9 V battery
Current Consumption: Less than 70mA Max
Peak LED Lighting div. frequency: Div. f23kHz +/-3kHz (at AF output approx. +7dBv)
Antenna: Dual 1/4 wave length rod antennas
Controls:
Audio level volume (front)
Squelch level volume (rear)
Display:
2-color LED x 2
Power On (Green) / Batt (Red) + TX (Green) / Peak (Red)
