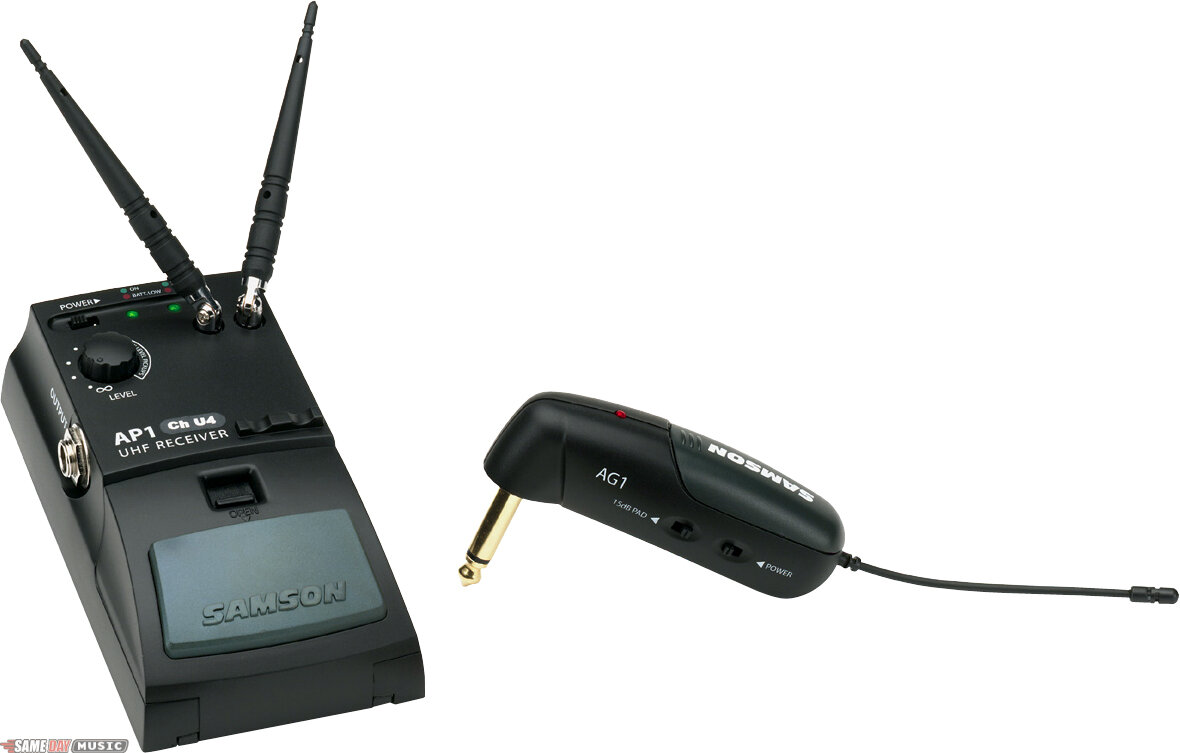

Samson Airline AG1 Guitar/Bass Wireless with Right Angled Plug
Gibson-style end at a right angle. System Includes: AP1 "Stomp Box" Style Receiver and AG1 Plug-In Micro Transmitter.
Product rated 5.7 out of 10 (15 ratings)
Read 3 Full Reviews >>
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
AirLine Guitar System
The revolutionary AirLine "plug-in" guitar transmitters come in 2 versions: the AF1 for Strat(R)-style inputs and the AG1 for traditional Gibson(R)-style end-mount inputs and all others. Less than half the size of conventional body packs, these miniaturized transmitters run on a tiny triple-A battery with 14-hour battery life. Both feature an array of on-board controls: a Power On/Off and Mute switch, red/green LED for Power On/Off, a Peak LED, and an Input Level control for different pickups. And UHF (Ultra High Frequency) means clearer frequencies with less interference.
Designed for use with your compact effect pedals, the AP1 diversity receiver gives you reception you can always depend on. It features a 1/4 in. output jack, Power On/Off switch, Peak LED, and a Volume control. You can use a 9-volt battery or optional AC adapter from Samson to power the receiver. When you unplug your the unit, the battery is disabled to conserve power.
About Samson Audio
Samson's mission is to create precision audio tools for professionals, all with exceptional sound, a wealth of practical features, and rugged construction to ensure consistent performance and long life in all kinds of applications. Their power amplifiers, equalizers, powered mixers, mixers, specialized products, racklight/power distribution systems, microphones, and other unique products to come, are all dedicated to one idea: The art of high technology is best served by making excellence more accessible to everyone.
System Includes: AP1 "Stomp Box" Style Receiver and AG1 Plug-In Micro Transmitter.
The revolutionary AirLine "plug-in" guitar transmitters come in 2 versions: the AF1 for Strat(R)-style inputs and the AG1 for traditional Gibson(R)-style end-mount inputs and all others. Less than half the size of conventional body packs, these miniaturized transmitters run on a tiny triple-A battery with 14-hour battery life. Both feature an array of on-board controls: a Power On/Off and Mute switch, red/green LED for Power On/Off, a Peak LED, and an Input Level control for different pickups. And UHF (Ultra High Frequency) means clearer frequencies with less interference.
Designed for use with your compact effect pedals, the AP1 diversity receiver gives you reception you can always depend on. It features a 1/4 in. output jack, Power On/Off switch, Peak LED, and a Volume control. You can use a 9-volt battery or optional AC adapter from Samson to power the receiver. When you unplug your the unit, the battery is disabled to conserve power.
About Samson Audio
Samson's mission is to create precision audio tools for professionals, all with exceptional sound, a wealth of practical features, and rugged construction to ensure consistent performance and long life in all kinds of applications. Their power amplifiers, equalizers, powered mixers, mixers, specialized products, racklight/power distribution systems, microphones, and other unique products to come, are all dedicated to one idea: The art of high technology is best served by making excellence more accessible to everyone.
System Includes: AP1 "Stomp Box" Style Receiver and AG1 Plug-In Micro Transmitter.
TECHNICAL DESCRIPTION
Channel Frequencies
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz
System Includes: AP1 "Stomp Box" Style Receiver and AG1 Plug-In Micro Transmitter.
Transmitter (AF1/AG1)
RF Output Power (5mW): -4dB Minimum, +3dB Maximum
Frequency Stability: -40kHz Minimum, 40kHz Maximum
Spurious: 1µW
Modulation Factor: 13kHz Minimum, 15kHz Typical, 17kHz Maximum, Input 1kHz-10dBv
Pre-emphasis: 50 µsec
Maximum Input Level: +2 dBv
Input Impedance: 2K ohms
THD: < 2% (1 kHz deviation 15kHz)
Audio Frequency Response: 50Hz - 15kHz (±3.5 dB)
Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum
Current Consumption: 60mA Typical
Battery Life: 14 hours (AAA size battery)
Output: 6.3mm, 1/4 in. mono Jack
Antenna: Permanently attached 1/4 wave length wire
Controls: Power Switch, 15 dB Pad Switch
Indicators: Power On (LED Flash), Low Battery (LED On when battery less than 1.1V)
Receiver (AP1)
Receiving Frequencies: USA 801-805MHz (U1-U6), One frequency in Channel Plan
Frequency Type: F3E
Modulation Type: Variable Reactance Modulation
Type of Reception: Single superheterodyne
OSC (Oscillator) System: Crystal controlled OSC (oscillator)
Local Oscillator Frequency: 79MHz Range
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz
System Includes: AP1 "Stomp Box" Style Receiver and AG1 Plug-In Micro Transmitter.
Transmitter (AF1/AG1)
RF Output Power (5mW): -4dB Minimum, +3dB Maximum
Frequency Stability: -40kHz Minimum, 40kHz Maximum
Spurious: 1µW
Modulation Factor: 13kHz Minimum, 15kHz Typical, 17kHz Maximum, Input 1kHz-10dBv
Pre-emphasis: 50 µsec
Maximum Input Level: +2 dBv
Input Impedance: 2K ohms
THD: < 2% (1 kHz deviation 15kHz)
Audio Frequency Response: 50Hz - 15kHz (±3.5 dB)
Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum
Current Consumption: 60mA Typical
Battery Life: 14 hours (AAA size battery)
Output: 6.3mm, 1/4 in. mono Jack
Antenna: Permanently attached 1/4 wave length wire
Controls: Power Switch, 15 dB Pad Switch
Indicators: Power On (LED Flash), Low Battery (LED On when battery less than 1.1V)
Receiver (AP1)
Receiving Frequencies: USA 801-805MHz (U1-U6), One frequency in Channel Plan
Frequency Type: F3E
Modulation Type: Variable Reactance Modulation
Type of Reception: Single superheterodyne
OSC (Oscillator) System: Crystal controlled OSC (oscillator)
Local Oscillator Frequency: 79MHz Range
