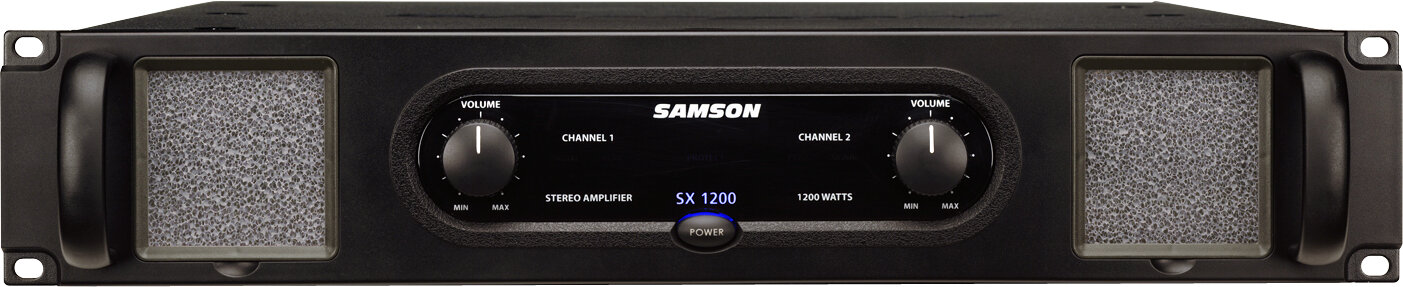

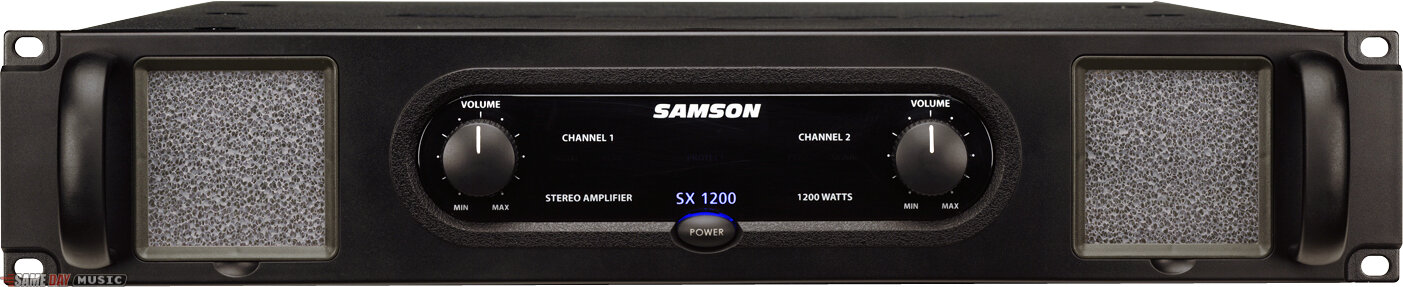

    Samson SX1200 Class A/B Stereo Power Amplifier, 900 Watts

    300 watts per side @ 8 ohms.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 9.4 Out of 10 (10 ratings)
    *********.*

    Samson SX1200 Stereo Power Amplifier Product Description

    The Samson SX1200 stereo power amplifier has been designed to provide robust, clean output with low distortion and wide dynamic range, along with the dependability demanded by professional audio engineers and installers.

    The convenient two rackspace design is compact, and yet there's plenty of power available, with 2 x 300 watts at 8 and 2 x 450 watts at 4 over the full frequency spectrum, from 10 Hz to 55 kHz.

    For mono applications, a bridged mode links both channels of the amplifiers, thus providing even more power, with a power rating of 900 watts for the Samson SX1200 into an 8 ohm load.

    Input connections are made via combination connectors allowing for both balanced XLR and balanced 1/4" TRS connections. For the outputs, the Samson SX1200 amplifier provides standard 5-way binding posts, as well as Speakon connectors. Front panel controls and displays include a power switch with LED indicator, as well as independent left and right channel input level controls. To help you set the correctoperating levels, the SX amplifiers include front panel Signal, Peak and Protection LED indicators.

    Like all serious power amplifiers, the Samson SX1200's internal electronics are based around a serious powercore, with oversized toroidal transformer and large extruded heatsinks. To keep the SX amplifiers running cool, their designs employ twin internal wind tunnels with forced-air cooling via two temperature-sensitive,variable speed fans, which greatly reduce the chance of thermal and overheating problems. Multi-stage protection for power-up, over-heating, over-current, short circuit, low output impedance and DC voltage, assures high reliability under the most demanding situations.

    The Samson SX1200 is road tough with its all steel chassis, 19-inch rackmount design and convenient carry handles, so it's ready for a life of travel, or to make it's home in a fixed installation.

    Features:

    - Professional Class AB Power Amplifier
    - 300 watts per side @ 8 ohms
    - 450 watts per side @ 4 ohms
    - 900 watts @ 8 ohms in bridged mono
    - Dual Variable-speed Fan Cooling System
    - Signal, Peak, and Protection Circuit Indicators
    - 5-way Binding Post and Speakon Speaker Outputs
    - XLR and TRS Input Connections
    - Dual Rack Space Design

    Same Day Music is an authorized dealer of Samson products.

    Samson SX1200 Technical Description

    WARNING: Bridge mode is to be used only when the SX Series is connected to an 8 or 16 ohm speaker load. Use of Bridge mode with speaker loads of less than 8 ohms can result in severe damage to the unit due to excessive heat and current limiting and will void your warranty!

    All Samson SX Series amps are designed to operate on 15 amp circuits and do not require special plugs or wiring. It is advisable to put each amp on a separate circuit to avoid popping a standard 15-20 amp breaker.

    Output at 8 ohms stereo: 300 watts per channel

    Same Day Music is an authorized dealer of Samson products.

    Samson SX1200 Stereo Power Amplifier Catalog Description

    Rugged power amp@Forced-air cooling@XLR and TRS inputs@Speakon and banana outputs@300 watts per channel at 8 ohms, 1200 watts at 4 ohms bridged

    Same Day Music is an authorized dealer of Samson products.

    User Reviews for Samson SX1200 Stereo Power Amplifier

    Product Rated 9.4 Out of 10 (10 ratings)
    *********.*

    10 users have rated this product, but no one has reviewed it yet. To rate this item and/or write a review, click the "Rate It" button.
