Product Description

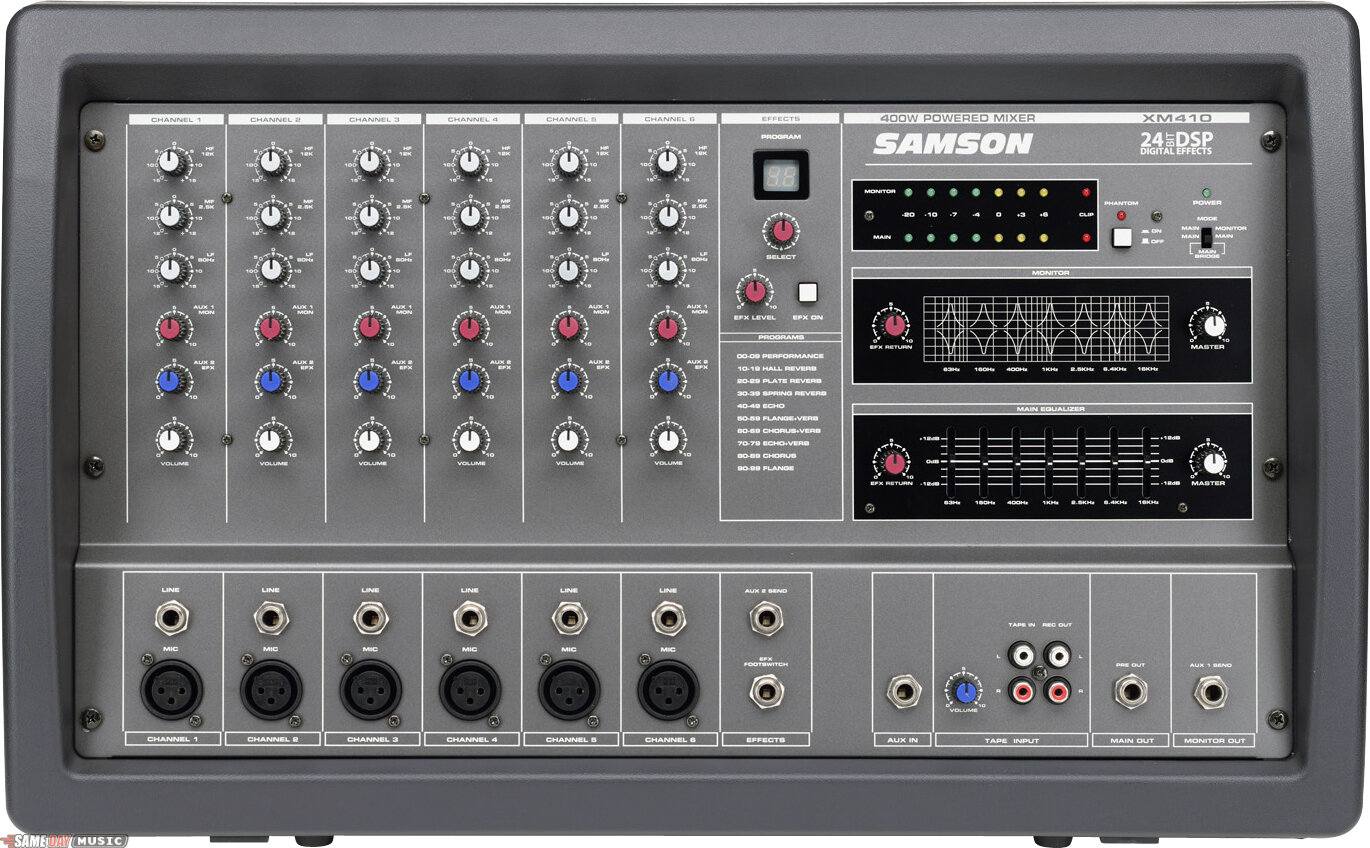

The XM410 is the latest in Samson's new line of powered mixers. Compact, light-weight and powerful, it has 6 mic/line inputs with 1/4 in. and XLR connections. It features low noise mic pre-amps with phantom power, 24-bit digital effects with 100 selectable presets of reverb, delay, and chorus. Three band equalization is available on each channel as well as effects and monitor sends. Seven-band graphic equalization is available on the main output section.

400 watts of total system power is split between main and monitor sections, utilizing low noise operational amplifiers with advanced circuit design. All of this is built into a rugged, high impact ABS kickback cabinet design with convenient carry handles.

Features
400 watts of total system power

6 mic/line inputs with 1/4 in. and XLR connections

24-bit digital effects with 100 selectable presets

3-band EQ on each channel, 7-band on main & monitor

RCA inputs and outputs for CD or tape

High impact ABS plastic kickback chassis design

Technical Description

Rated Output Power: 200 Watts at 4 Ohms per amplifier

Frequency Response:
- 20Hz ~ 20kHz +/-0.5dB at 1 Watt Output into 8 Ohms (AMP OUT)
- 20Hz ~ 20KHz +/-0.4 at +4dB Output into 10kOhms (MAIN OUT, MONITOR OUT, AUX 2 SEND)

Total Harmonic Distortion:
- Less than 0.06% at 20 Hz ~ 20 kHz, 75 Watts output into 4 Ohms (AMP OUT)
- Less than 0.1% at 20Hz ~ 20KHz +14dB output into 10kOhms (MAIN OUT, MON OUT, AUX 2 SEND) + 4dB

HUM & Noise: -121dB equivalent input noise
- Average, RS+150Ù: -100dB residual output noise (MAIN OUT, MONITOR OUT, AUX 2 OUT) with 22Hz~22KHz BPF: -79dB (MAIN OUT, MONITOR OUT) Master level control at maximum, all channel level control at minimum.

-79dB (AUX 2) Master level control at maximum all channel level controls at minimum

Maximum Voltage Gain:
- 67dB CH IN (MIC) to AMP OUT
- 48dB CH IN (MIC) to MAIN OUT, MONITOR OUT
- 54dB CH IN (MIC) to AUX 2 OUT
- 30dB CH IN (MIC) to REC OUT
- 32dB CH IN (LINE) to MAIN OUT, MONITOR OUT
- 26dB AUX IN to MAIN OUT
- 24dB TAPE IN to MAIN OUT

Crosstalk 1KHz: 70dB adjacent input, 70dB input to output

Input Channel Equalization:
- HIGH: 12KHz shelving (+/- 15dB Maximum)
- MID: 2.5KHz peaking (+/- 12dB Maximum)
- LOW :80Hz shelving (+/- 15dB Maximum)

Meters: 7 POINT LED METERS (-20, -10, -7, -4, 0, +3, +6dB)

Graphic Equalizer: 7 bands (63, 160, 400, 1K, 2.5K, 6.4K, 16KHz)

Internal DSP Effects: 24 BIT - 10 Presets each:
- 1 - Performance
- 2 - Hall Reverb
- 3 - Plate Reverb
- 4 - Spring Reverb
- 5 - Echo
- 6 - Flange + Verb
- 7 - Chorus + Verb
- 8 - Echo + Verb
- 9 - Chorus
- 10 - Flange

Phantom Power: +48V

CLIP Indicators: Turn on: THD> 0.1%

Foot Switch: DIGITAL EFFECT MUTE: ON/OFF

General
Power Requirement: 110V-240V, 50/60Hz

Power Consumption:
- At one-eighth power: 516 Watts
- At full power: 800 Watts

Weight: 40 lbs. (18.2Kg)

Dimensions: 21 (W) x 14 (H) x 13-3/4 inches (D) (534 x 356 x 350 mm)
