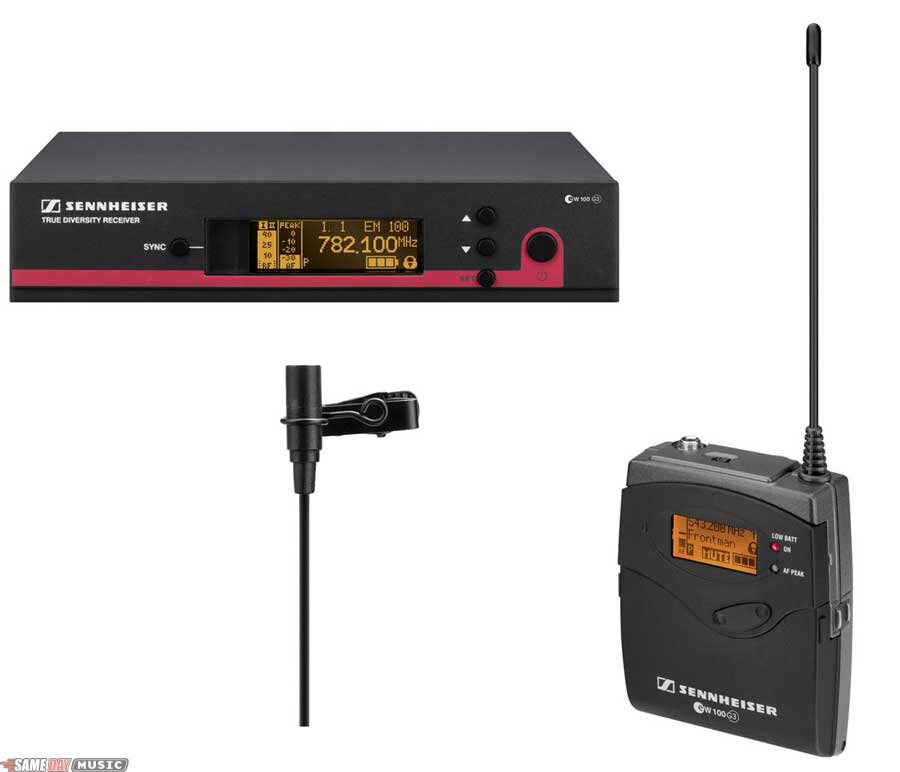

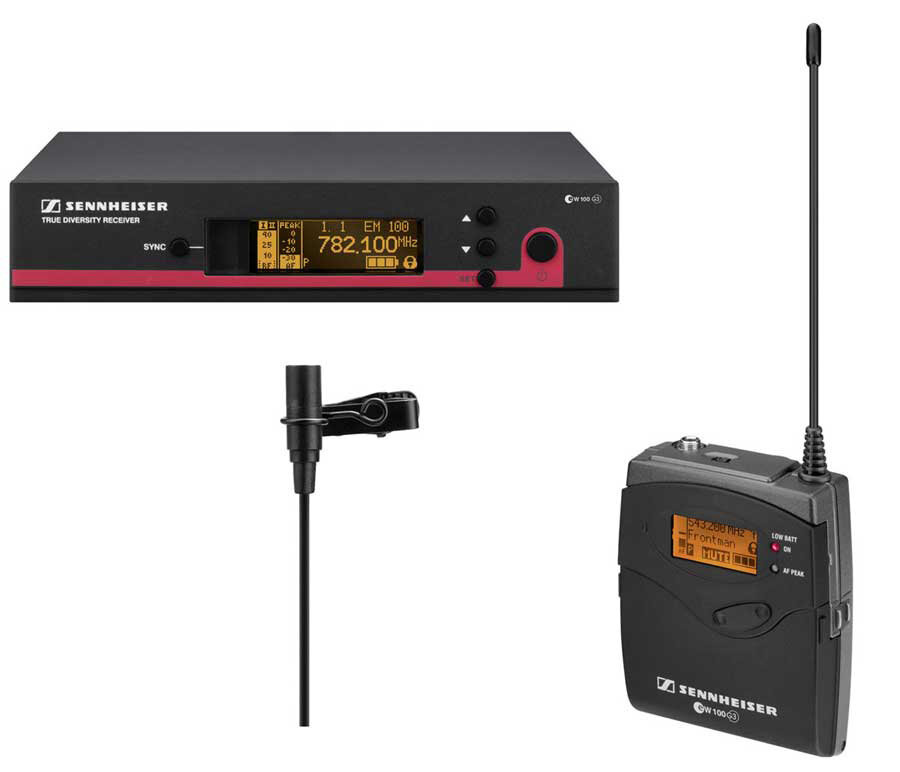

    Sennheiser Evolution G3 100 Series ew110G3 UHF Wireless Lavalier System

    36 MHz bandwidth: 1680 tunable UHF frequencies. Includes bodypack transmitter, ME 2 omni lavalier and rack mountable receiver, LE Version.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Sennheiser ew110G3 Evolution G3 100 Series UHF Lavalier Wireless Product Description

    With the Evolution G3 LE lapel wireless system your presentations come to life. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small. The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation, not on purchasing batteries. Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.

    Features
    - Sturdy metal housing (transmitter and receiver)
    - 36 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
    - Enhanced frequency bank system with up to 12 compatible frequencies
    - High-quality true diversity reception
    - Pilot tone squelch for eliminating RF interference when transmitter is turned off
    - Automatic frequency scan feature searches for available frequencies
    - Enhanced AF frequency range
    - Increased range for audio sensitivity
    - Wireless synchronization of transmitters via infrared interface
    - User-friendly menu operation with more control options
    - Illuminated graphic display (transmitter and receiver)
    - Auto-Lock function avoids accidental changing of settings
    - HDX compander for crystal-clear sound
    - Transmitter feature battery indication in 4 steps, also shown on receiver display
    - Programmable Mute function
    - Integrated Equalizer and Soundcheck mode
    - Contacts for recharging BA 2015 accupack directly in the transmitter
    - Includes bodypack transmitter, ME 2 omni lavalier and rack mountable receiver, LE Version

    Consumer Alert
    Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

    NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

    Same Day Music is an authorized dealer of Sennheiser products.

    Sennheiser ew110G3 Evolution G3 Lavalier Wireless Technical Description

    Specifications
    Modulation: Broadband FM

    Frequency Ranges (MHz):
    - 518 - 554 (A2)
    - 626 - 662 (B2)

    Switching bandwidth: 36 MHz

    Frequency Banks:
    - 20 (fixed)
    - 1 (rewritable) Maximum # or presets per bank: 6

    Pilot tone squelch: as ew G2, switchable
    - Compander: HDX, compatible with ew G2 and ew G1

    Sennheiser Evolution G3 100 LE Receiver
    Principle: True Diversity

    Sensitivity (52dBAeff S/N: < 2.5 uV

    Adjacent channel rejection: greater than or equal to 65 dB

    Intermodulation rejection: greater than or equal to 65 dB

    Blocking: greater than or equal to 70 dB

    Squelch:
    - Lo: 5 dBuV
    - MID: 15 dBuV
    - Hi: 25 dBuV Antenna inputs: 2 x BNC / 50 ohms

    S/N: greater than or equal to 110 dB
    - AF Frequency response: 80-18,000 Hz
    - AF outputs:

    1/4 inch jack: +12 dBu (unbal.)

    XLR: +18 dBu + 6 dB gain (bal.) AF gain range: 48 dB (3 dB steps)

    EQ presets:
    - Flat
    - LoCut (-3 dB / 180 Hz)
    - HiBoost (+6 dB / 10 kHz)

    LoCut/HiBoost Temperature Range: -10*C - +55*C

    Power Supply: NT 2-3

    Nominal voltage: 12 V DC

    Current comsumption: 300 mA

    Operation time (batteries, BA2015 accupack): typically 8 hrs

    Dimensions (BxHxT): 212 x 43 x 190mm

    Weight: approximately 900 grams

    Sennheiser Evolution G3 LE 100 Bodypack Transmitter
    RF Output power: 30 mW

    Antenna output: whip antenna (SK)

    AF frequency response: 25 - 18,000 Hz

    AF Sensitivity range: 60 dB / 3 dB steps

    THD: less than or equal to 0.9 per cent

    Maximum input voltage: +12 dBu

    Input impedance: 1 M ohms

    Input capacity: 4 steps, switchable

    Temperature range: -10C - +55C

    Power Supply: 2 x AA batteries, 1.5V

    Nominal Voltage: 2.4 V DC

    Current Consumption: typically 180 mA (30 mW)

    Operation time (batteries/BA2015): typically 8 hours

    Dimensions: 82 x 64 x 24 mm

    Weight (including batteries): approximately 160 grams

    Same Day Music is an authorized dealer of Sennheiser products.
