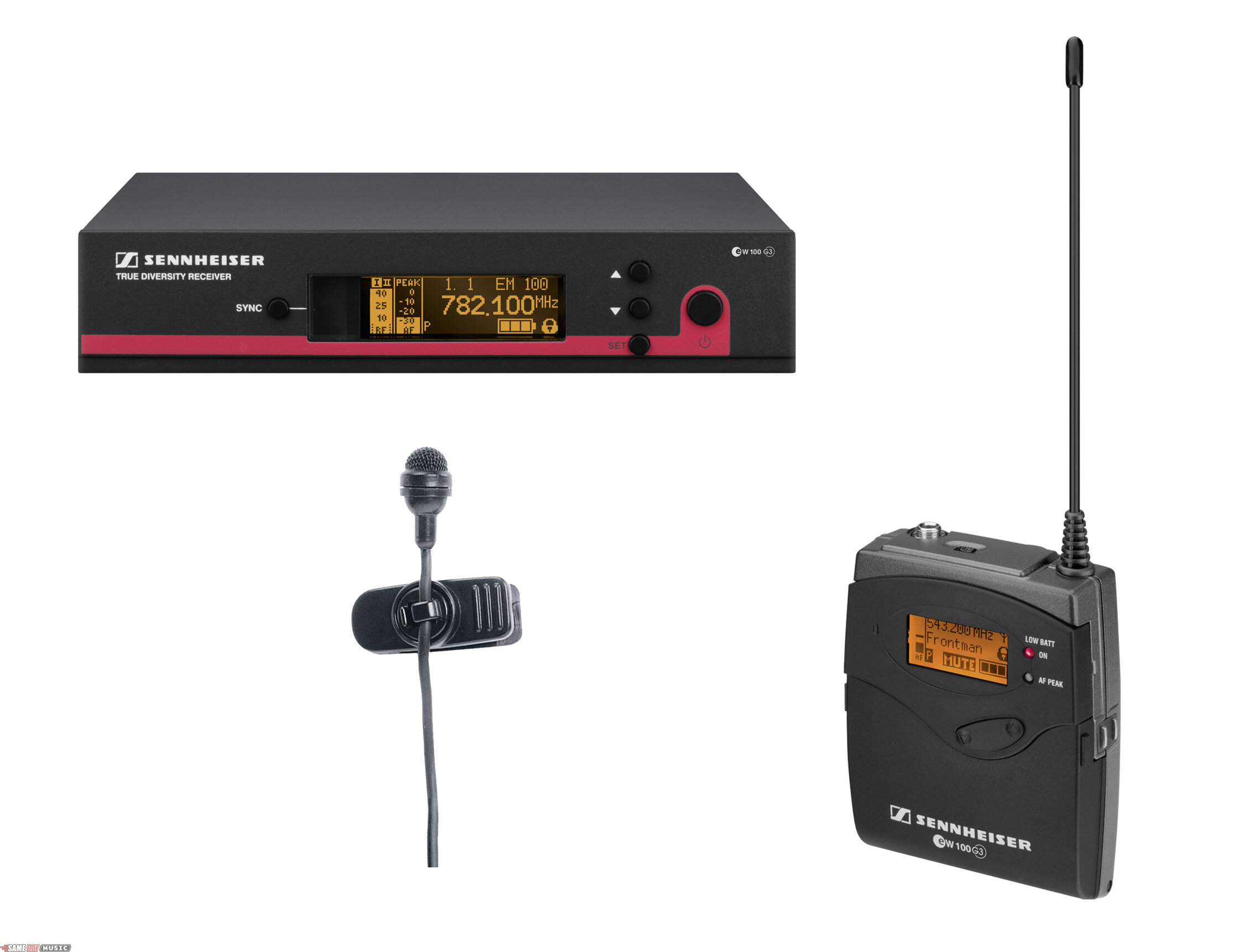

Sennheiser Evolution G3 100 Series ew112G3 UHF Wireless Lavalier System

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Make your presentations come to life. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small. The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation - not on purchasing batteries. Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.

Features
Sturdy metal housing (transmitter and receiver)

42 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception

Enhanced frequency bank system with up to 12 compatible frequencies

High-quality true diversity reception

Pilot tone squelch for eliminating RF interference when transmitter is turned off

Automatic frequency scan feature searches for available frequencies

Enhanced AF frequency range

Increased range for audio sensitivity

Wireless synchronization of transmitters via infrared interface

User-friendly menu operation with more control options

Illuminated graphic display (transmitter and receiver)

Auto-Lock function avoids accidental changing of settings

HDX compander for crystal-clear sound

Transmitter feature battery indicatation in 4 steps, also shown on receiver display

Programmable Mute function

Integrated Equalizer and Soundcheck mode

Contacts for recharging BA 2015 accupack directly in the transmitter

Wide range of accessories adapts the system to any requirement

Frequency Ranges:

Channel A: 516 - 558 MHz

Channel B: 626 - 668 MHz

Channel G: 566 - 608 MHz

Same Day Music is an authorized dealer of Sennheiser products.

Technical Data
RF frequency range: 516 - 865 MHz
Transmission/receiving frequencies: 1680
Presets: 12
Switching bandwidth : 42 MHz
Compander: HDX
Frequency response: 25-18.000 Hz
Signal-to-noise ratio: >110 dB(A)
THD, total harmonic distortion: < 0,9 %

Receivers
True diversity
Antenna connector: 2x BNC, 50 Ohm
Audio output level (balanced) XLR: +18 dBu max Jack: +12 dBu max
Audio output level (unbalanced) Jack: +12dBu max 12 V DC
Dimensions: 202x212x43mm
Weight: ~900g

Transmitter
RF output power ty.: 30 mW battery AA (Mignon)
Power supply: 2x AA batteries
Operating time typ.: 8h
Input voltage range: 1,8 V line
Input voltage range: 3 V eff. line
Dimensions: 82x64x24mm
Weight: ~160g
Clip-on microphone
Transducer, Microphone type: Permanent polarized 130 dB(SPL) max.
AF sensitivity: 20 mV/Pa omni- directional
Sound pressure level (SPL): 130 dB(SPL) max.
Pick-up pattern: Omni-directional

Same Day Music is an authorized dealer of Sennheiser products.

Shipping Weights and Dimensions

Channel A

Shipping Weight: 5 lbs

Channel B

Shipping Weight: 5 lbs

Channel G

Shipping Weight: 5 lbs
