Sennheiser Evolution G3 100 Series ew114G3 UHF Wireless Lavalier System

Bring your presentations to life With the Evolution G3 LE lapel wireless system. The included omni-directional microphone provides natural speech reproduction while remaining inconspicuously small. The bodypack transmitter has a rechargeable battery option so you can concentrate on your presentation, not on purchasing batteries. Demand the best in wireless presentation technology with quick setup, user-friendly operation, and absolute reliability due to the true diversity receiver. Now featuring wireless infrared transmitter sync for easy setup.

Features
- Sturdy metal housing (transmitter and receiver)
- 36 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 12 compatible frequencies
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Programmable Mute function
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter

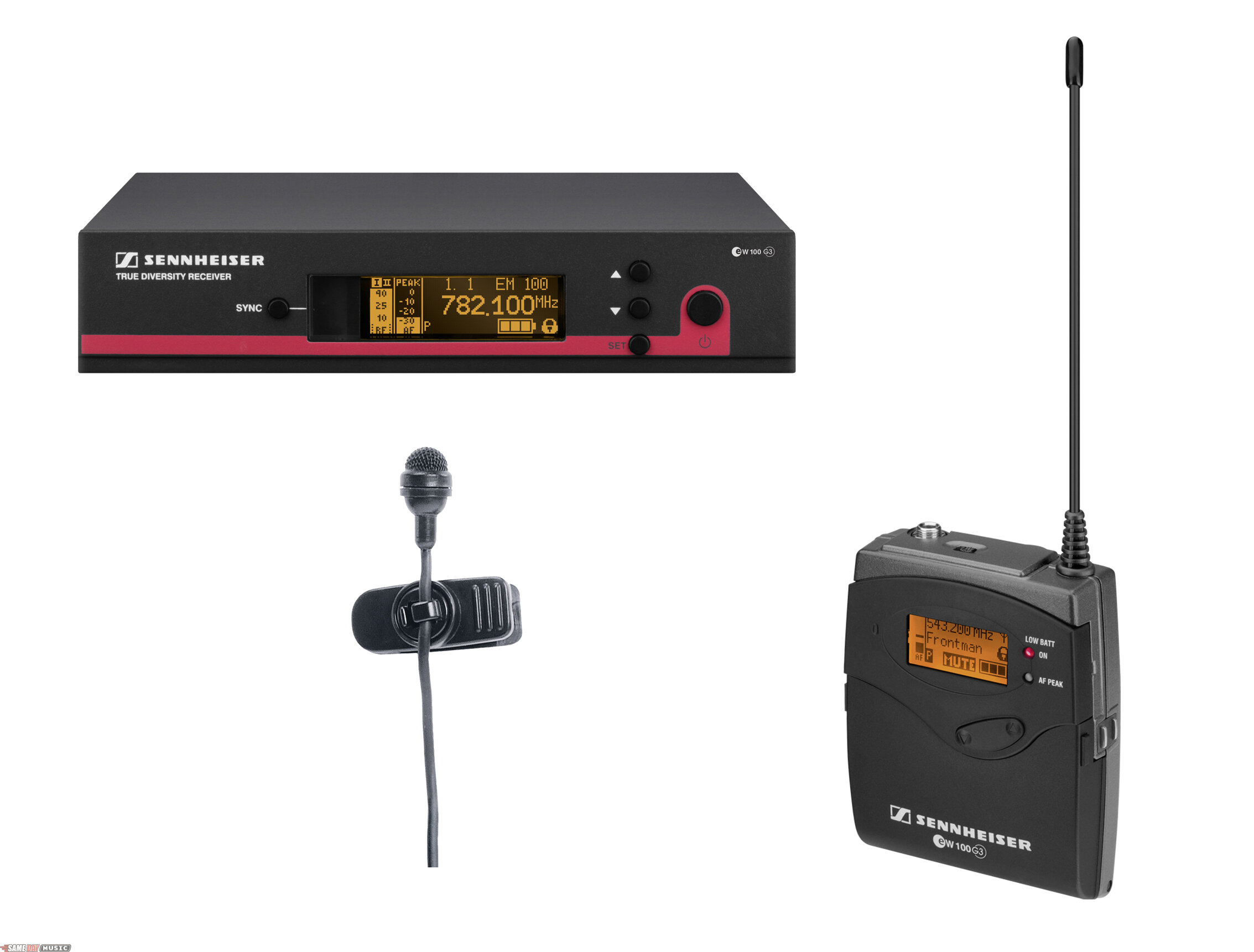

- Includes bodypack transmitter, ME 4 cardioid lavalier and rack mountable receiver, LE Version

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of Sennheiser products.

Specifications
Modulation: Broadband FM

Frequency Ranges (MHz):
- 518 - 554 (A2)
- 626 - 662 (B2) Switching bandwidth: 36 MHz

Frequency Banks: 20 (fixed)

1 (rewritable) Maximum # or presets per bank: 6

Pilot tone squelch: as ew G2, switchable

Compander: HDX, compatible with ew G2 and ew G1

Sennheiser Evolution G3 100 LE Receiver
Principle: True Diversity

Sensitivity (52dBA eff S/N): < 2.5 uV

Adjacent channel rejection: greater than or equal to 65 dB

Intermodulation rejection: greater than or equal to 65 dB

Blocking: greater than or equal to 70 dB

Squelch:
- Lo: 5 dBuV
- MID: 15 dBuV
- Hi: 25 dBuV Antenna inputs: 2 x BNC / 50 ohms

S/N: greater than or equal to 110 dB

AF Frequency response: 80-18,000 Hz

AF outputs:
- 1/4 inch jack: +12 dBu (unbal.)
- XLR: +18 dBu + 6 dB gain (bal.) AF gain range: 48 dB (3 dB steps)

EQ presets:
- Flat
- LoCut (-3 dB / 180 Hz)
- HiBoost (+6 dB / 10 kHz)

LoCut/HiBoost Temperature Range: -10*C - +55*C

Power Supply: NT 2-3

Nominal voltage: 12 V DC

Current comsumption: 300 mA

Operation time (batteries, BA2015 accupack): typically 8 hrs

Dimensions (BxHxT): 212 x 43 x 190mm

Weight: approximately 900 grams

Sennheiser Evolution G3 LE 100 Bodypack Transmitter
RF Output power: 30 mW

Antenna output: whip antenna (SK)

AF frequency response: 25 - 18,000 Hz

AF Sensitivity range: 60 dB / 3 dB steps

THD: less than or equal to 0.9 per cent

Maximum input voltage: +12 dBu

Input impedance: 1 M ohms

Input capacity: 4 steps, switchable

Temperature range: -10C - +55C

Power Supply: 2 x AA batteries, 1.5V

Nominal Voltage: 2.4 V DC

Current Consumption: typically 180 mA (30 mW)

Operation time (batteries/BA2015): typically 8 hours

Dimensions: 82 x 64 x 24 mm

Weight (including batteries): approximately 160 grams

Same Day Music is an authorized dealer of Sennheiser products.

Shipping Weights and Dimensions

Shipping Weight: 5 lbs
