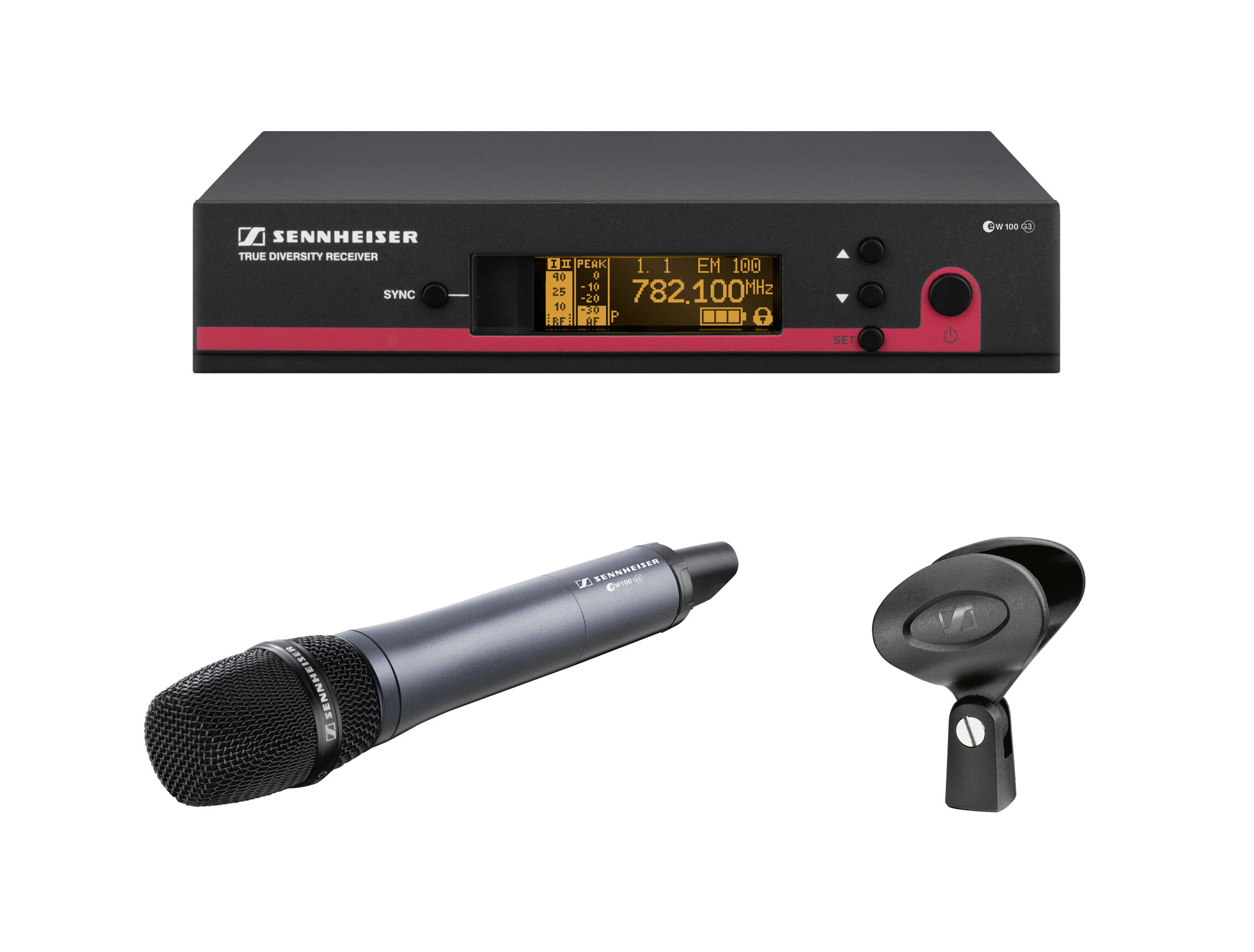

Sennheiser Evolution G3 100 Series ew115G3 UHF Wireless Handheld System

Experience a great performance with the versatile Evolution G3 LE 100 handheld vocal system. An excellent handheld system for every style of music and presentations. The handheld microphone now allows you to charge the optional rechargeable pack while it remains in the transmitter. Wirelessly link up the transmitter with the receiver with a single touch of the sync button. The true diversity receiver has a backlit graphic display that makes it easy to read under all lighting conditions.

Features
- Sturdy metal housing (transmitter and receiver)
- 36 MHz bandwidth: 1680 tunable UHF frequencies for interference-free reception
- Enhanced frequency bank system with up to 12 compatible frequencies
- High-quality true diversity reception
- Pilot tone squelch for eliminating RF interference when transmitter is turned off
- Automatic frequency scan feature searches for available frequencies
- Enhanced AF frequency range
- Increased range for audio sensitivity
- Wireless synchronization of transmitters via infrared interface
- User-friendly menu operation with more control options
- Illuminated graphic display (transmitter and receiver)
- Auto-Lock function avoids accidental changing of settings
- HDX compander for crystal-clear sound
- Transmitter feature battery indicatation in 4 steps, also shown on receiver display
- Integrated Equalizer and Soundcheck mode
- Contacts for recharging BA 2015 accupack directly in the transmitter
- Includes handheld transmitter with e815 capsule and rack mountable receiver, LE Version

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of Sennheiser products.

Specifications
- Modulation: Broadband FM
- Frequency Ranges (MHz): 518 - 554 (A2), 626 - 662 (B2) Switching bandwidth: 36 MHz
- Frequency Banks: 20 (fixed), 1 (rewritable) Maximum # or presets per bank: 6
- Pilot tone squelch: as ew G2, switchable
- Compander: HDX, compatible with ew G2 and ew G1

Sennheiser Evolution G3 100 LE Receiver
- Principle: True Diversity
- Sensitivity (52dBAeff S/N: < 2.5 microvolts
- Adjacent channel rejection: greater than or equal to 65 dB
- Intermodulation rejection: greater than or equal to 65 dB
- Blocking: greater than or equal to 70 dB
- Squelch: Lo: 5 dB microvolts, MID: 15 dB microvolts, Hi: 25 dB microvolts Antenna inputs: 2 x BNC / 50 ohms
- S/N: greater than or equal to 110 dB
- AF Frequency response: 80-18,000 Hz
- AF outputs: 1/4 inch jack: +12 dBu (unbal.), XLR: +18 dBu + 6 dB gain (bal.) AF gain range: 48 dB (3 dB steps)
- EQ presets: Flat, LoCut (-3 dB / 180 Hz), HiBoost (+6 dB / 10 kHz), LoCut/HiBoost
- Temperature Range: -10 degrees C - +55 degrees C
- Power Supply: NT 2-3
- Nominal voltage: 12 V DC
- Current comsumption: 300 mA
- Dimensions (BxHxT): 212 x 43 x 190mm
- Weight: approximately 900 grams

Sennheiser Evolution G3 LE 100 Bodypack Transmitter
- RF Output power: 30 mW
- Antenna output: short antenna (SK)
- AF frequency response: 80 - 18,000 Hz
- AF Sensitivity range: 48 dB / 6 dB steps
- THD: less than or equal to 0.9 per cent
- Maximum input voltage: +12 dBu
- Input impedance: 1 M ohms
- Input capacity: 4 steps, switchable
- Temperature range: -10 degrees C - +55 degrees C
- Power Supply: 2 x AA batteries, 1.5V
- Nominal Voltage: 2.4 V DC
- Current Consumption: typically 180 mA (30 mW)
- Operation time (batteries/BA2015): typically 8 hours
- Dimensions: 50 x 265 mm
- Weight (including batteries): approximately 450 grams

Same Day Music is an authorized dealer of Sennheiser products.

Shipping Weights and Dimensions

Channel A2

Shipping Weight: 6 lbs

Channel B2

Shipping Weight: 6 lbs
