Sennheiser ew122G2 Cardioid Lavalier UHF Wireless System
1440 tunable UHF frequencies for interference-free reception. See below for channel frequencies.
- LIMITED TIME OFFER
- Free Gator GM1W Wireless Bag (a $60 value) with new purchase while supplies last! Must select 'New, with Free Gator Wireless Bag' option.
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- Shure PG58 Vocal Mic
- from $60
- Shure SM58 Microphone
- from $99
- Shure PGX24 SM58
- $399
ADDITIONAL VIEWS:
Main
All
PRODUCT DESCRIPTION

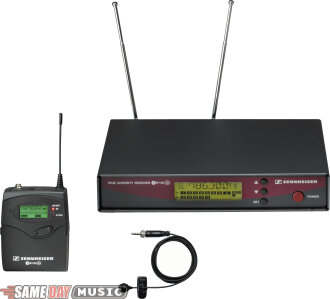

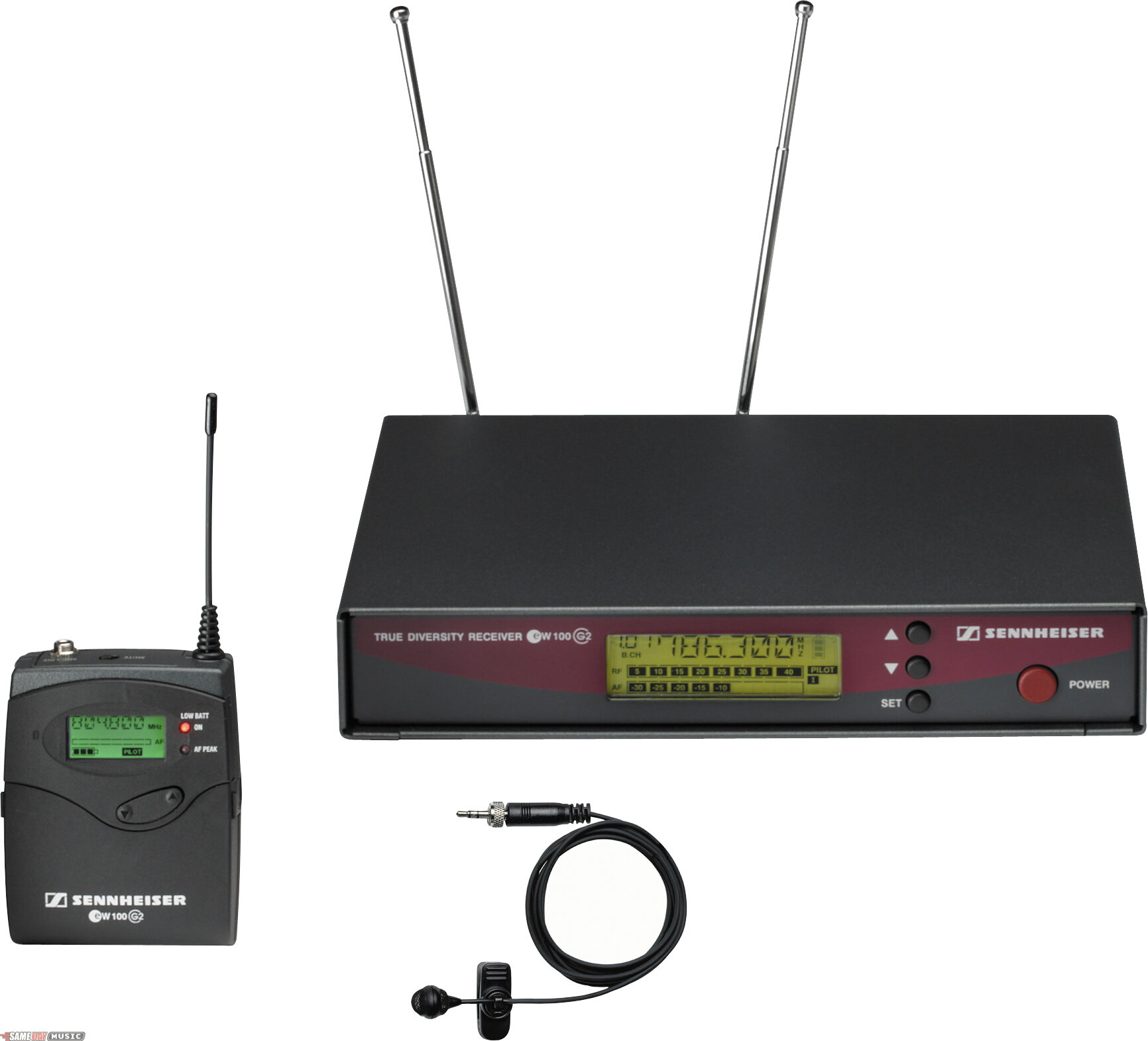

This 100 Series system is ideal for stage productions and presentations. The unobtrusive ME 4 clip-on microphone is virtually invisible and has excellent feedback rejection. The extremely small SK 100 G2 bodypack transmitter as well as the EM 100 rack-mount receiver feature 9 frequency banks with 4 frequency presets each for direct channel selection and are ready for immediate use.
Features
1440 tunable UHF frequencies for interference-free reception
Absolutely reliable transmission and extended range due to high RF output power
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Transmitter and receiver with rugged metal housings
Receiver features user-friendly menu operation via backlit display
Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter and receiver feature "Low Battery" indicators
Mute function for the transmitter
Wide range of accessories adapts the system to any requirement
Delivery Includes
1 EM 100 G2 rack-mount receiver
1 SK 100 G2 bodypack transmitter
1 ME 4 clip-on microphone (cardioid)
1 NT 2-1 power supply unit
2 telescopic antennas
2 AA batteries
Operating instructions
Features
1440 tunable UHF frequencies for interference-free reception
Absolutely reliable transmission and extended range due to high RF output power
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Transmitter and receiver with rugged metal housings
Receiver features user-friendly menu operation via backlit display
Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
Transmitter and receiver feature "Low Battery" indicators
Mute function for the transmitter
Wide range of accessories adapts the system to any requirement
Delivery Includes
1 EM 100 G2 rack-mount receiver
1 SK 100 G2 bodypack transmitter
1 ME 4 clip-on microphone (cardioid)
1 NT 2-1 power supply unit
2 telescopic antennas
2 AA batteries
Operating instructions
TECHNICAL DESCRIPTION
Channel Frequencies
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
RF frequency range: 518..... 866 MHz
Transmission/receiving frequencies: 1440
Presets: 4
Switching bandwidth: 36 MHz
Peak deviation: +/- 48 kHz
Compander: HDX
Frequency response (microphone): 40.....18000 Hz
Signal-to-noise ratio: > 110 dB(A)
THD, total harmonic distortion: < 0,9 %
In compliance with: ETS 300422 , ETS 300445 , CE , FCC
Antenna connector: 2 BNC, 50 Ohm
Audio-XLR connector: 6,3 mm
Audio output level (balanced): XLR: +18 dBu max
Audio output level (unbalanced): Jack: +12 dBu max
Power supply: 10,5 - 16 V DC
Dimensions (Receiver): 212 x 145 x 38 mm
Weight (Receiver): 1100 g
RF output power: 30 mW
Power supply: 2x 1.5 V battery AA (Mignon)
Operating time (transmitter): > 8 h
Input voltage range: mic 1,8 V
Input voltage range: line 2,4 V
Dimensions (Transmitter): 82 x 64 x 24 mm
Weight (Transmitter): 158 g
Transducer; Microphone type: elektret
AF sensitivity: 40 mV/Pa
Sound pressure level (SPL): 120 dB(SPL) max.
Pick-up pattern: cardioid
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
RF frequency range: 518..... 866 MHz
Transmission/receiving frequencies: 1440
Presets: 4
Switching bandwidth: 36 MHz
Peak deviation: +/- 48 kHz
Compander: HDX
Frequency response (microphone): 40.....18000 Hz
Signal-to-noise ratio: > 110 dB(A)
THD, total harmonic distortion: < 0,9 %
In compliance with: ETS 300422 , ETS 300445 , CE , FCC
Antenna connector: 2 BNC, 50 Ohm
Audio-XLR connector: 6,3 mm
Audio output level (balanced): XLR: +18 dBu max
Audio output level (unbalanced): Jack: +12 dBu max
Power supply: 10,5 - 16 V DC
Dimensions (Receiver): 212 x 145 x 38 mm
Weight (Receiver): 1100 g
RF output power: 30 mW
Power supply: 2x 1.5 V battery AA (Mignon)
Operating time (transmitter): > 8 h
Input voltage range: mic 1,8 V
Input voltage range: line 2,4 V
Dimensions (Transmitter): 82 x 64 x 24 mm
Weight (Transmitter): 158 g
Transducer; Microphone type: elektret
AF sensitivity: 40 mV/Pa
Sound pressure level (SPL): 120 dB(SPL) max.
Pick-up pattern: cardioid
CATALOG DESCRIPTION
Affordable pro-level diversity UHF wireless system@Autoscan automatically chooses the best of 1400 frequencies@Rugged all-metal receiver@Compact bodypack transmitter@Cardioid lavalier microphone
