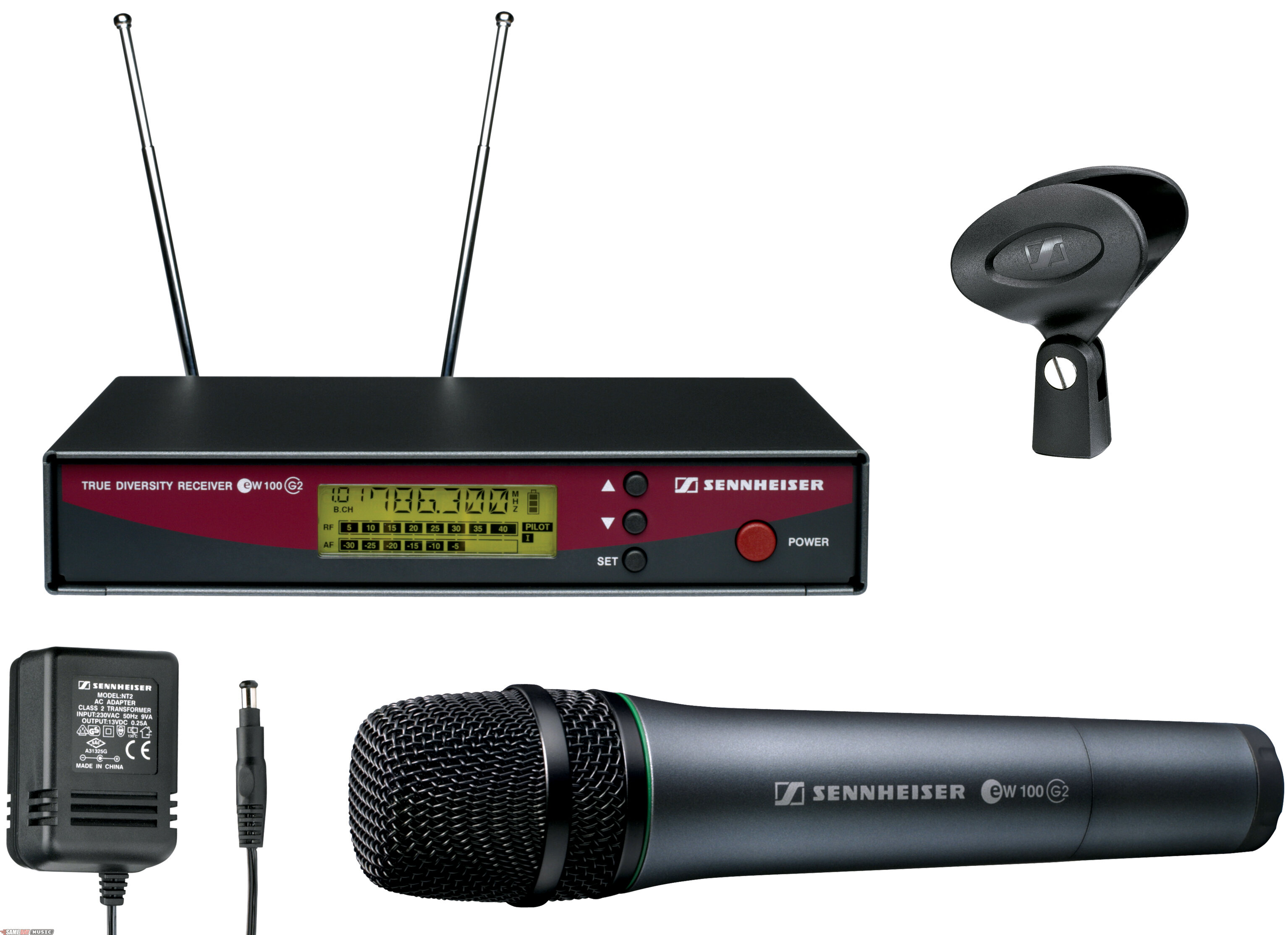

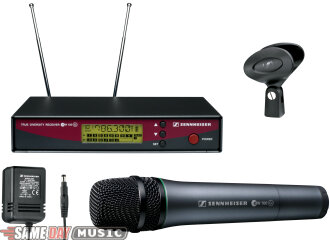

Sennheiser ew135G2 Evolution G2 100 Series UHF Handheld Wireless
Autoscan, 1440 frequencies, metal construction. See below for channel frequencies.
Product rated 9.1 out of 10 (27 ratings)
Read Reviews >>
- LIMITED TIME OFFER
- Free Gator GM1W Wireless Bag (a $60 value) with new purchase while supplies last! Must select 'New, with Free Gator Wireless Bag' option.
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
PRODUCT DESCRIPTION
Simply the best, most affordable way to get professional caliber UHF wireless! Sennheiser's original evolution series introduced startling new technology and innovative design. Now, they're again pushing the limits of performance, audio quality, ruggedness and ease of use. With redesigned features such as much smaller body packs, larger backlit LCD displays, AutoScan function on all receivers, 36MHz switching bandwidth, and more, evolution G2 is today's most advanced, best sounding, easy-to-use, road-worthy wireless system. The amazing 100 Series offers 4 switchable presets (reprogrammable to any of 1,440 available frequencies), a true diversity, and - unlike other wireless systems at this price - metal construction that will stand up to the rigors of life on the road. The system features variable-level 1/4" TRS and XLR balanced connectors.
Features
Autoscan on all receivers for simple and secure frequency selection
1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility
Robust metal construction for durability
Pilot tone squelch(defeatable for backwards compatibility with original EW systems)
New battery concept(AA cells and rechargeable battery accessories)
Transmitter battery status telemetry on all models
Audio signal metering on transmitter LCD display
External charging contacts on 300 and 500 series bodypacks
XLR jacks on all rack-mountable units
Features
Autoscan on all receivers for simple and secure frequency selection
1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility
Robust metal construction for durability
Pilot tone squelch(defeatable for backwards compatibility with original EW systems)
New battery concept(AA cells and rechargeable battery accessories)
Transmitter battery status telemetry on all models
Audio signal metering on transmitter LCD display
External charging contacts on 300 and 500 series bodypacks
XLR jacks on all rack-mountable units
TECHNICAL DESCRIPTION
Channel Frequencies
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
General Specs
Frequency Range: 518-554, 626-662, 740-776, 786-822, 830-866MHz
Switchable Frequencies: 1440
Af Freq Response: 40-18000Hz
Signal To Noise Ratio: >110dB
Compander System: HDX HDX
Pilot Tone: 32768kHz, deafeatable
Receiver
Weight: approx.1100g
Dimensions: 212 x 145 x 38mm
Squelch: Low: 5dB?V Mid: 15dB?V Hi: 25dB?V
Nominal Peak Deviation: XLR: Bal.:-24 to +18dBu Jack: Unbal.:-30 to +12dBu(adjustable in 6 dB-steps)
Current Consumption: approx.200mA
Power Supply: 10.5-16V DC, 12V nom.
Adjacent Channel Rejection: >65dB
Image Rejection: >70dB
Sensitivity: <2.5?V
Intermodulation Spacing: >65dB
Receiver Principle: True Diversity
Booster Dc Supply: None(only via antenna splitter ASP2)
Transmitter
Weight: approx. 450g
Power Supply: 2.4V DC
Nominal Peak Deviation:
Mic: 1.8V eff.
Line: approx. 2,4Veff
Operating Voltage: >8h
Current Consumption: <170mA <250?A
Rf Outputs: typ. 30mW
Input Impedance:
Mic: 10kOhm
Line: 1MOhm
Max Sound Pressure Level: approx. 154dB
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
General Specs
Frequency Range: 518-554, 626-662, 740-776, 786-822, 830-866MHz
Switchable Frequencies: 1440
Af Freq Response: 40-18000Hz
Signal To Noise Ratio: >110dB
Compander System: HDX HDX
Pilot Tone: 32768kHz, deafeatable
Receiver
Weight: approx.1100g
Dimensions: 212 x 145 x 38mm
Squelch: Low: 5dB?V Mid: 15dB?V Hi: 25dB?V
Nominal Peak Deviation: XLR: Bal.:-24 to +18dBu Jack: Unbal.:-30 to +12dBu(adjustable in 6 dB-steps)
Current Consumption: approx.200mA
Power Supply: 10.5-16V DC, 12V nom.
Adjacent Channel Rejection: >65dB
Image Rejection: >70dB
Sensitivity: <2.5?V
Intermodulation Spacing: >65dB
Receiver Principle: True Diversity
Booster Dc Supply: None(only via antenna splitter ASP2)
Transmitter
Weight: approx. 450g
Power Supply: 2.4V DC
Nominal Peak Deviation:
Mic: 1.8V eff.
Line: approx. 2,4Veff
Operating Voltage: >8h
Current Consumption: <170mA <250?A
Rf Outputs: typ. 30mW
Input Impedance:
Mic: 10kOhm
Line: 1MOhm
Max Sound Pressure Level: approx. 154dB
CATALOG DESCRIPTION
Affordable pro-level diversity UHF wireless system@Autoscan automatically chooses the best of 1400 frequencies@Rugged all-metal receiver@Cardioid dynamic mic/transmitter
