Sennheiser Evolution G3 100 Series ew152G3 UHF Wireless Headset System

The Evolution G3 100 headset system allows complete freedom, whether you are a singer, dancer or fitness trainer. Keep your hands free while you move across the entire stage during your performance. The headset system is ultra-light and comfortable to wear -- plus it supplies a powerful sound to reach the very last row with crystal clear quality.

Features:

- Sturdy metal housing
- Automatic frequency management for transmitter and receiver
- Tunable UHF frequencies within a large switching bandwidth
- Programmable MUTE switch
- Wireless synchronization of transmitters via infrared interface
- Enhanced frequency bank management with up to 12 compatible frequencies per bank
- 42 MHz bandwidth with 1680 switchable frequencies
- :Increased range for audio sensitivity
- Easy-to-read illuminated dot matrix display
- 4-level charge indicator for transmitter battery
- More control options (menu)
- Enhanced AF frequency range
- Soundcheck mode
- Integrated equalizer
- Contacts for recharging the BA 2015 accupack directly in the transmitter
- 2 AA batteries for more than 8 hours of use
- HDX compander for crystal-clear sound
- True diversity receiver for optimum reception
- High RF output power for large range
- Suitable for 19 inch rack mounting (1 U)

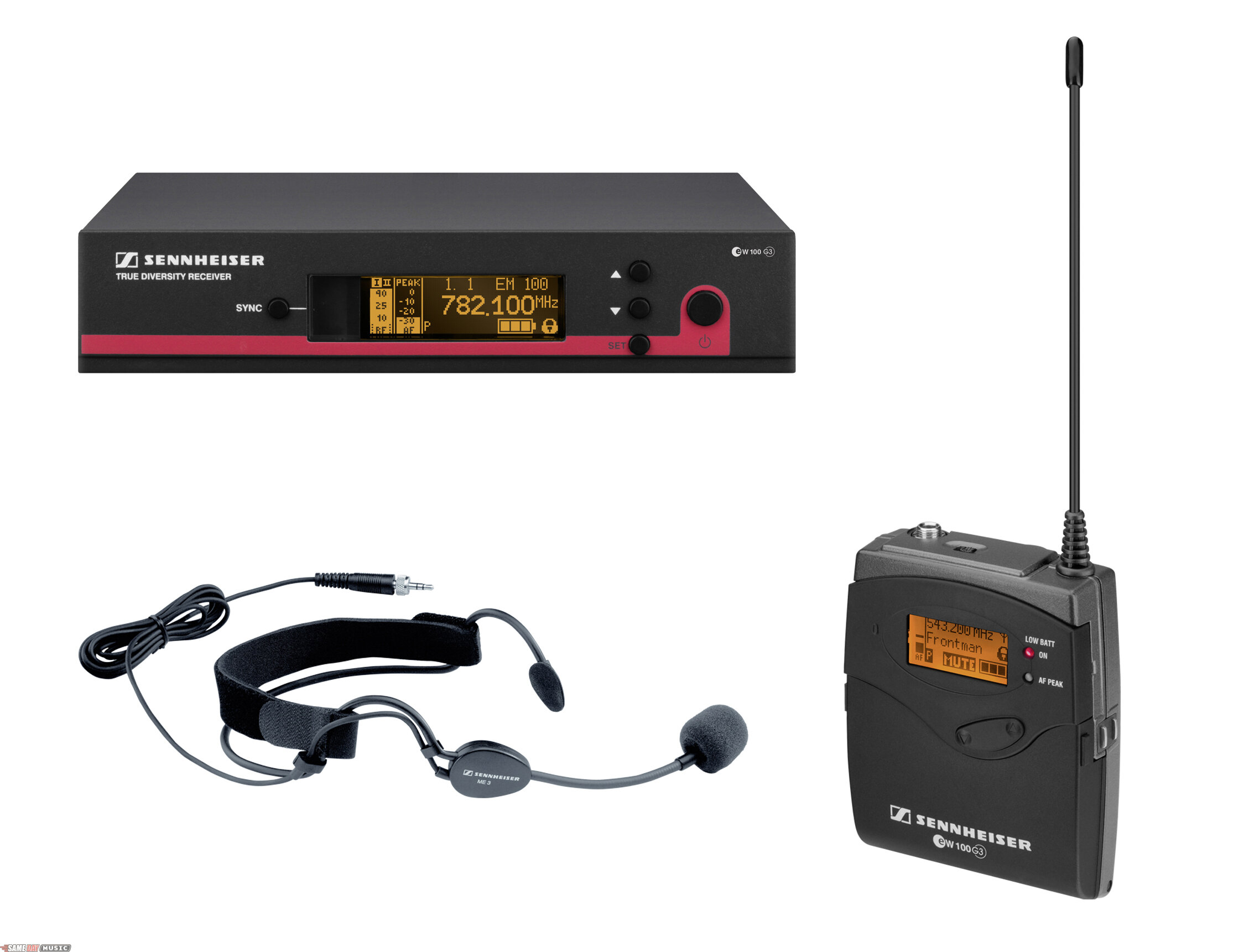

- Bodypack transmitter, ME 3 cardioid headset and rack mountable receiver

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of Sennheiser products.

Specifications
- Modulation: Broadband FM
- Frequency Ranges (MHz):
516 - 558 (A)
566 - 608 (G)
626 - 668 (B) S
- Switching bandwidth: 42 MHz
- Frequency Banks: 20 (fixed), 1 (rewritable) Maximum # or presets per bank: 12
- Pilot tone squelch: as ew G2, switchable
- Compander: HDX, compatible with ew G2 and ew G1

Sennheiser Evolution G3 100 Receiver
- Principle: True Diversity
- Sensitivity (52dBAeff S/N: < 2.5 uV
- Adjacent channel rejection: greater than or equal to 65 dB
- Intermodulation rejection: greater than or equal to 65 dB
- Blocking: greater than or equal to 70 dB
- Squelch:
Lo: 5 dBuV
MID: 15 dBuV
Hi: 25 dBuV Antenna inputs: 2 x BNC / 50 ohms
- S/N: greater than or equal to 110 dB
- AF Frequency response: 80-18,000 Hz
- AF outputs:
1/4 inch jack: +12 dBu (unbal.)
XLR: +18 dBu + 6 dB gain (bal.) AF gain range: 48 dB (3 dB steps)
- EQ presets:
Flat
LoCut (-3 dB / 180 Hz)
HiBoost (+6 dB / 10 kHz)
- LoCut/HiBoost Temperature Range: -10*C - +55*C
- Power Supply: NT 2-3
- Nominal voltage: 12 V DC
- Current comsumption: 300 mA
- Operation time (batteries, BA2015 accupack): typically 8 hrs
- Dimensions (B x H x T): 212 x 43 x 190mm
- Weight: approximately 900 grams

Sennheiser Evolution G3 100 Bodypack Transmitter
- RF Output power: 30 mW
- Antenna output: whip antenna (SK)
- AF frequency response: 25 - 18,000 Hz
- AF Sensitivity range: 60 dB / 3 dB steps
- THD: less than or equal to 0.9 per cent
- Maximum input voltage: +12 dBu
- Input impedance: 1 M ohms
- Input capacity: 4 steps, switchable
- Temperature range: -10C - +55C
- Power Supply: 2 x AA batteries, 1.5V
- Nominal Voltage: 2.4 V DC
- Current Consumption: typically 180 mA (30 mW)
- Operation time (batteries/BA2015): typically 8 hours
- Dimensions: 82 x 64 x 24 mm
- Weight (including batteries): approximately 160 grams

Same Day Music is an authorized dealer of Sennheiser products.

Shipping Weights and Dimensions

Channel A (516 - 558 MHz)

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 15 x 3 in

Channel B (626-668 MHz)

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 15 x 3 in

Channel G (556 - 608 MHz)

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 15 x 3 in
