Sennheiser ew335G2 Handheld UHF Wireless System
1440 tunable UHF frequencies for interference-free reception. See below for channel frequencies.
This product has been discontinued or is no longer sold by SameDayMusic.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
RECOMMENDED ACCESSORIES:
- Whirlwind MC20 Mic Cable
- from $10
ADDITIONAL VIEWS:
Main
All
PRODUCT DESCRIPTION

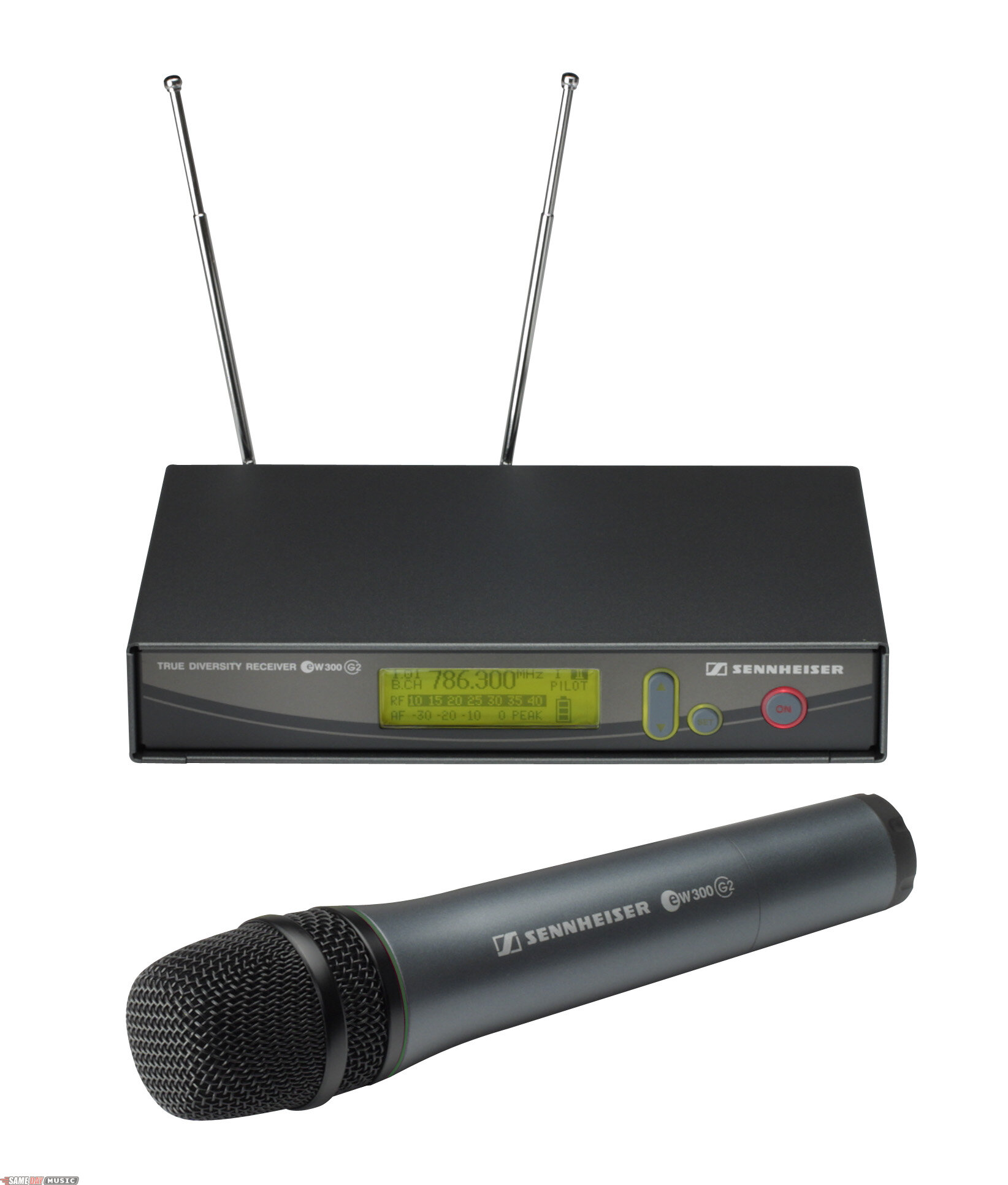

The ew 335 G2 RF wireless system is an ideal choice for vocals and speech applications. It includes the SKM 335 G2 handheld transmitter with dynamic, cardioid microphone head and the EM 300 G2 rack-mount receiver. They feature nine frequency banks with eight directly accessible presets each -- ready for immediate use.
Features
1440 tunable UHF frequencies for interference-free reception
Absolutely reliable transmission and extended range due to high RF output power
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Transmitter and receiver with rugged metal housings
Rack mount included
Transmitter with backlit display (lights up when a button is pushed)
Receiver features user-friendly menu operation via two-colour backlit graphics display (green = OK; red = warning)
Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
4-step battery status display, also transmitted to receiver
Mute function for the transmitter
Wide range of accessories adapts the system to any requirement
Delivery Includes
1 EM 300 G2 rack-mount receiver
1 SKM 335 G2 handheld transmitter (cardioid, dynamic)
1 MZQ 1 microphone clip
1 GA 2 rack mount
1 NT 2-1 power supply unit
2 telescopic antennas
2 AA size batteries
Operating instructions
Features
1440 tunable UHF frequencies for interference-free reception
Absolutely reliable transmission and extended range due to high RF output power
High-quality true diversity reception
Pilot tone squelch for eliminating RF interference when transmitter is turned off
Automatic frequency scan feature searches for available frequencies
Transmitter and receiver with rugged metal housings
Rack mount included
Transmitter with backlit display (lights up when a button is pushed)
Receiver features user-friendly menu operation via two-colour backlit graphics display (green = OK; red = warning)
Lock function avoids accidental changing of settings
HDX compander for crystal-clear sound
4-step battery status display, also transmitted to receiver
Mute function for the transmitter
Wide range of accessories adapts the system to any requirement
Delivery Includes
1 EM 300 G2 rack-mount receiver
1 SKM 335 G2 handheld transmitter (cardioid, dynamic)
1 MZQ 1 microphone clip
1 GA 2 rack mount
1 NT 2-1 power supply unit
2 telescopic antennas
2 AA size batteries
Operating instructions
TECHNICAL DESCRIPTION
Channel Frequencies
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
RF frequency range: 518 ..... 866 MHz
Transmission/receiving frequencies: 1440
Presets: 8
Switching bandwidth: 36 MHz
Peak deviation: +/- 48 kHz
Compander: HDX
Frequency response (microphone): 40.....18000 Hz
Signal-to-noise ratio: > 112 dB(A)
THD, total harmonic distortion: < 0,9 %
In compliance with: ETS 300422 , ETS 300445 , CE , FCC
Antenna connector: 2 BNC, 50 Ohm
Audio-XLR connector: 6,3 mm
Audio output level (balanced): +18 dBu max
Audio output level (unbalanced): +10 dBu max
Power supply: 10,5 - 16 V DC
Dimensions (Receiver): 212 x 145 x 38 mm
Weight (Receiver): 1100 g
RF output power: 30 mW
Power supply: 2x 1.5 V battery AA (Mignon)
Operating time (transmitter): >8 h
Dimensions (Transmitter): d= 50 mm, l= 225 mm
Weight (Transmitter): 450 g
Transducer; Microphone type: dynamic
AF sensitivity: 1,5 mV/Pa
Sound pressure level (SPL): 150 dB(SPL) max.
Pick-up pattern: cardioid
Channel A: 519.600 to 549.325 MHz (TV Channels 22-27)
Channel B: 630.300 to 661.400 MHz (TV Channels 40-45)
Channel C: 740.100 to 768.400 MHz (TV Channels 59-64)
RF frequency range: 518 ..... 866 MHz
Transmission/receiving frequencies: 1440
Presets: 8
Switching bandwidth: 36 MHz
Peak deviation: +/- 48 kHz
Compander: HDX
Frequency response (microphone): 40.....18000 Hz
Signal-to-noise ratio: > 112 dB(A)
THD, total harmonic distortion: < 0,9 %
In compliance with: ETS 300422 , ETS 300445 , CE , FCC
Antenna connector: 2 BNC, 50 Ohm
Audio-XLR connector: 6,3 mm
Audio output level (balanced): +18 dBu max
Audio output level (unbalanced): +10 dBu max
Power supply: 10,5 - 16 V DC
Dimensions (Receiver): 212 x 145 x 38 mm
Weight (Receiver): 1100 g
RF output power: 30 mW
Power supply: 2x 1.5 V battery AA (Mignon)
Operating time (transmitter): >8 h
Dimensions (Transmitter): d= 50 mm, l= 225 mm
Weight (Transmitter): 450 g
Transducer; Microphone type: dynamic
AF sensitivity: 1,5 mV/Pa
Sound pressure level (SPL): 150 dB(SPL) max.
Pick-up pattern: cardioid
