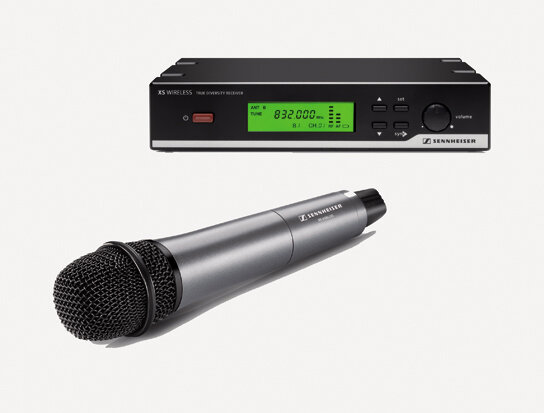

Sennheiser XSW35A Handheld Wireless Vocal Set

Rugged, reliable and easy-to-use, XS Wireless delivers renowned Sennheiser sound to small venues, conference rooms or houses of worship. The Sennheiser XSW 35 Vocal Set with e835 cardioid dynamic capsule provides up to 10 hours of operation, a convenient mute button and excellent feedback rejection. An all-metal True Diversity receiver offers 960 tunable frequencies, with powerful scan and sync functions that ensure worry-free operation.

Features

- True Diversity reception for worry-free operation
- 24 MHz switching bandwidth
- 960 available frequencies, tunable in 25 kHz steps
- 8 frequency banks containing 12 coordinated channels each
- Powerful scan function identifies available channels within a bank
- Component synchronization at a distance with new "Remote Channel" sync
- Up to 10 hours of operation with (2) AA batteries
- Up to 250 feet of transmission range
- Illuminated audio mute button on transmitters
- Balanced (XLR) and unbalanced (1/4") outputs
- 2 frequency ranges: A (548572 MHz) and B (614638 MHz)

Includes

- (1) SKM35 Handheld Transmitter
- (1) EM10 True Diversity Receiver
- (1) NT 2-3 power supply
- (1) MZQ1 mic clip
- (2) rod antennas
- (2) AA batteries
- (1) Pouch
- (1) Instruction manual

Same Day Music is an authorized dealer of Sennheiser products.

- System:

- Modulation: Wideband FM

- Receiver principle: True diversity

- Sensitivity (at peak deviation) : < 3 microV at 52 dBarms S/N

- Frequency range:

- A: 548-572 MHz

- B: 614-638 MHz

- Switching bandwidth: 24 MHz

- Adjacent channel rejection: >/= 60 dB

- Intermodulation rejection: >/= 50 dB

- Frequencies: 960, tunable in 25 kHz steps

- Frequency presets: 8 frequency banks, each with 12 coordinated factory-preset channels

- Blocking: >/= 65 dB

- AF frequency response: 60 Hz - 16 kHz

- Signal-to-noise ratio: >/= 103 dBa

- Total harmonic distortion (THD) :

- Temperature range: 32 degree F to 104 degree F (0 degree C to +40 degree C)

- Antenna input 2: BNC connectors, 50 ohms

- AF output voltage (at peak dev., 1 kHz AF) :

- XLR (balanced): +14 dBu

- 1/4 in. (unbalanced): +8 dBu

- Receiver power supply: 12 VDC nom. / 300 mA

- Dimensions (single) : 13.39 x 13.58 x 3.35 in.

- Weight (single) : 3.99 lbs.

- Dimensions (master carton) : 15.35 x 13.98 x 11.02 in

- Weight (master carton) : 14.33 lbs.

- Receiver EM 10:

- Receiver principle: True Diversity

- Sensitivity (at peak deviation) : < 3 microV at 52 dBarms S/N

- Adjacent channel rejection: = 60 dB

- Intermodulation rejection: = 50 dB

- Blocking: = 65 dB

- AF frequency response: 60 Hz - 16 kHz

- Pilot tone: 32.768 kHz

- Antenna input: 2 BNC connectors, 50 ohms

- AF output voltage (at peak dev., 1 kHz AF) :

- XLR (balanced): +14 dBu

- 1/4 in. (unbalanced): +8 dBu

- Power supply: 12 VDC nom. / 300 mA

- Dimensions: 7.9 x 1.7 x 5.0 in. (200 x 42 x 127 mm)

- Weight: 1.6 lbs. (730 g)

- FCC ID: DMOXSWEM (for 2.4 GHz synchronization link)

- SKM35 Transmitter:

- RF Output Power: 10mW

- AF Frequency response: 80 Hz-16 kHz

- Power Supply: (2) AA batteries, 1.5V

- Operating time: Approximately 10 hours

- Dimensions: 9.8 x 2.1in.

- Weight: 8.5 oz.

- Microphone type: e835 dynamic

- Input sensitivity: 1.5 mV/Pa

- Pick-up pattern: Cardiod

- Maximum SPL: 149 dB SPL

Same Day Music is an authorized dealer of Sennheiser products.

Shipping Weights and Dimensions

Channel A

Shipping Weight: 4 lbs

Shipping Dimensions: 3 x 14 x 13 in

Channel B

Shipping Weight: 4 lbs

Shipping Dimensions: 3 x 14 x 13 in
