Product Description

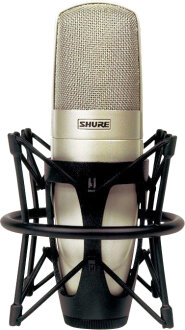

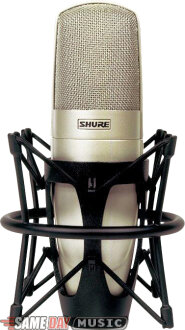

The Shure KSM32 is a side-address, cardioid condenser microphone for highly critical studio recording and live sound productions. It offers an extended frequency response for an open, natural sounding reproduction of the original sound source.

Features
Class A, transformerless preamplifier circuitry eliminates cross-over distortion for improved linearity across the full frequency range

Embossed, high-compliance diaphragm provides extended low frequency response

Ultra-thin, gold-layered, low mass, Mylar diaphragm for excellent transient response

15 dB attenuation switch for handling extremely high sound pressure levels (SPL)

Switchable low-frequency filter provides greater flexibility to reduce background noise or to counteract proximity effect

Integrated 3-stage pop protection grille reduces "pop" and other breath noise

Internal shock mount reduces transmission of handling noise

Some typical applications for the KSM32 are listed below. Microphone use, however, is largely a matter of personal taste. The KSM32 may be used for a variety of applications other than those listed.

Applications
Voice: solo, background, voice-over, broadcasting

Acoustic instrument: such as piano, guitar, drums, percussion, strings

Wind instruments: brass and woodwind

Low frequency instruments: such as double bass, electric bass, kick drum

Overhead miking: drums or percussion

Ensembles: choral or orchestral

Room ambience pick-up: guitar amplifier or drums

Both the acoustic environment and microphone placement have significant effects on the sound obtained when miking a source. You may need to experiment with these variables to achieve the best overall sound for each application.

Technical Description

Cartridge Type: Permanently-biased condenser

Frequency Response: 20 Hz to 20 kHz

Directional Pattern: Cardioid

Sensitivity (at 1000 Hz): Open Circuit Voltage -36 dBV/Pa (16 mV) typical (1 Pa = 94 dB SPL)

Self Noise (equivalent SPL): 13 dB typical, A-weighted (IEC 651)

Total Harmonic Distortion (20 Hz to 20 kHz , 2500 W load): < 0.08%* for a 120 dB equivalent SPL input

Maximum SPL (20 Hz to 20 kHz, THD < 1%*):
2500 W Load 139 dB (154 dB w/ attenuation)
1000 W Load 133 dB (148 dB w/ attenuation)

Output Clipping Level (20 Hz to 20 kHz, THD < 1%*):
2500 W Load +9 dBV (2.82 V rms)
1000 W Load +3 dBV (1.41 V rms)

Dynamic Range (20 Hz to 20 kHz, 2500 W load): 126 dB (maximum SPL minus A-weighted noise level)

Signal-to-Noise Ratio: 81 dB (IEC 651)

Output Impedance: 150 W (actual)

Attenuation Switch: 0 or -15 dB

Low Frequency Response Switch: Flat, -6 dB/octave below 115 Hz, -18 dB/octave below 80 Hz

Power: Phantom Power: 48 Vdc 4 Vdc (IEC-268-15/DIN 45 596),positive pins 2 and 3

Current Drain: 4.65 mA typical at 48 Vdc

Common Mode Rejection Ratio (CMRR): 50 dB, 20 Hz to 20 kHz

Connector: Gold plated, 3-in (XLR) professional audio

Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3

Dimensions: 55.9 mm (2.20 in.) maximum body diameter, 187 mm (7.37 in.) long.

Net Weight: 490 g (17.3 oz.

Conforms to European Union directives, eligible to bear CE marking; meets European Union EMC Immunity Require-ments (EN 50 082?1, 1992).

Furnished Accessories
ShureLock Elastic Shock Mount (SL model only) A32SM

ShureLock Swivel Adapter A32M

Aluminum Carrying Case (SL model only) A32SC

Padded, Zippered Carrying Bag (CG model only) A32ZB

Protective Velveteen Pouch (SL model only) A32VB

Optional Accessories
Foam Windscreen (Charcoal Gray) A32WS (Measured 0.6 m (2 ft) from a spherical sound source, free-field conditions)
