Shure P4R Wireless Bodypack Receiver for PSM400
New Channel X1 frequency that meets 2009 FCC frequency reallocation requirements.
Product rated 10.0 out of 10 (1 rating)
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION

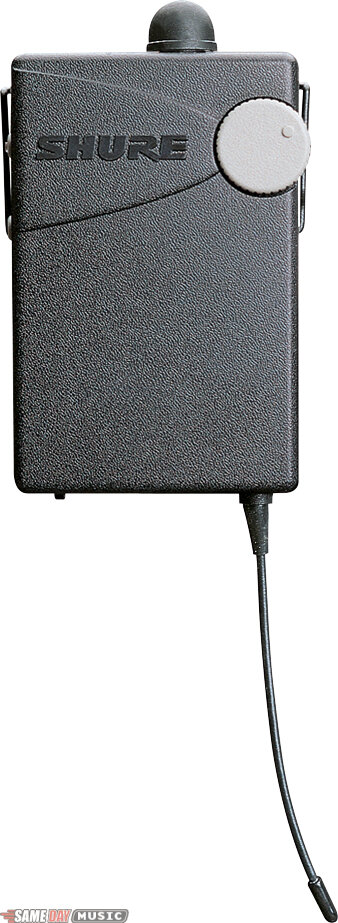

The Shure P4R is an add on wireless bodypack for the PSM400 monitor system.
Features
High-impact plastic chassis
Frequency locater
Features
High-impact plastic chassis
Frequency locater
TECHNICAL DESCRIPTION
Operating Controls:
Operating mode (Stereo, Mono, MixMode)
Volume knob
Balance
Defeatable limiter
High-frequency boost
Frequency select
Backlit LCD Indicators:
RF reception
Battery life
Operating mode
Frequency
RF Frequency Range: 722 to 865 MHz (country dependent)
Operating Range: 300 feet (environment dependent)
Audio Frequency Response: 50 Hz to 12 kHz (+/- 3 dB)
RF Sensitivity: 1 mV typical
Image Rejection: 55 dB typical
Spurious Rejection: 60 dB typical
Squelch Threshold: 4.5 mV typical
Antenna: attached whip
Power Requirements: 9 V alkaline battery
Battery Life: up to 8 hours, volume dependent
Audio Output Connector: 3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)
Minimum Load Impedance: 16 ohms
Net Weight: .28 lbs.(125 g )
Overall Dimensions: 3-1/4 x 2-1/2 x 1-1/32 in.(82.6 mm X 63.5 mm X 26.2 mm)
Important NOTE:
Due to the FCC reallocation and auction of frequencies in the 700 MHz band, Shure has chosen to move the PSM 400 products from the HF band (722 to 746 MHz) to the new X1 band (944 to 952 MHz). There are no changes to pricing.
The X1 band extends from 944 to 952 MHz (8 MHz total). This portion of the RF spectrum is called the “STL band” because it is used for Studio-Transmitter Links between a radio station studio and a transmitter in a different location. It is outside of the TV band, new wireless services, and public safety bands.
NOTE: PSM 400 systems operating in the X1 band are not compatible with the PA770 antenna combiner.
Operating mode (Stereo, Mono, MixMode)
Volume knob
Balance
Defeatable limiter
High-frequency boost
Frequency select
Backlit LCD Indicators:
RF reception
Battery life
Operating mode
Frequency
RF Frequency Range: 722 to 865 MHz (country dependent)
Operating Range: 300 feet (environment dependent)
Audio Frequency Response: 50 Hz to 12 kHz (+/- 3 dB)
RF Sensitivity: 1 mV typical
Image Rejection: 55 dB typical
Spurious Rejection: 60 dB typical
Squelch Threshold: 4.5 mV typical
Antenna: attached whip
Power Requirements: 9 V alkaline battery
Battery Life: up to 8 hours, volume dependent
Audio Output Connector: 3.5 mm Stereo (Left = tip, Right = ring, Ground = sleeve)
Minimum Load Impedance: 16 ohms
Net Weight: .28 lbs.(125 g )
Overall Dimensions: 3-1/4 x 2-1/2 x 1-1/32 in.(82.6 mm X 63.5 mm X 26.2 mm)
Important NOTE:
Due to the FCC reallocation and auction of frequencies in the 700 MHz band, Shure has chosen to move the PSM 400 products from the HF band (722 to 746 MHz) to the new X1 band (944 to 952 MHz). There are no changes to pricing.
The X1 band extends from 944 to 952 MHz (8 MHz total). This portion of the RF spectrum is called the “STL band” because it is used for Studio-Transmitter Links between a radio station studio and a transmitter in a different location. It is outside of the TV band, new wireless services, and public safety bands.
NOTE: PSM 400 systems operating in the X1 band are not compatible with the PA770 antenna combiner.
