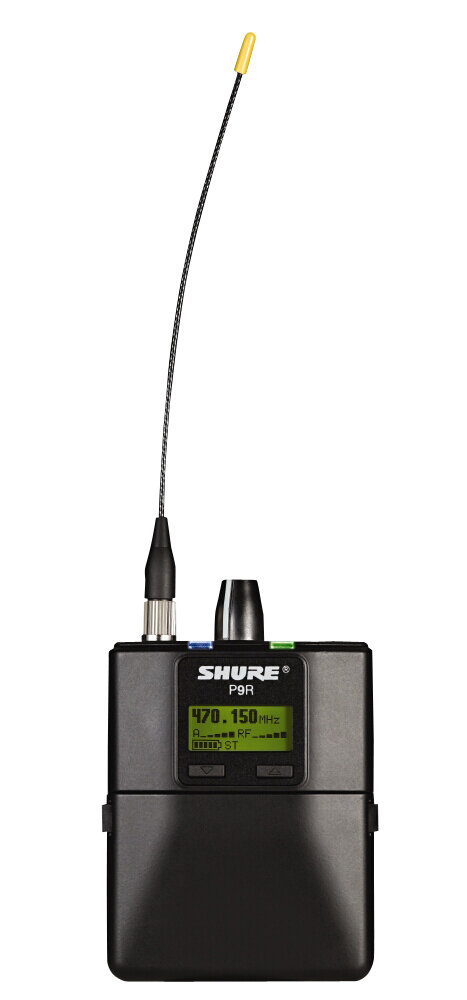

    Shure P9R Wireless Receiver Bodypack for PSM900

    The P9R is a compact, stereo bodypack receiver for use with the PSM(R)900 Wireless Personal Monitor System.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Shure P9R Wireless Bodypack Receiver for PSM900 Product Description

    The P9R is a compact, stereo bodypack receiver for use with the PSM(R)900 Wireless Personal Monitor System. It offers premium features like RF Scan and Automatic Gain Control for unparalleled RF stability and channel availability, all packed in the thinnest form factor available.

    Patent-pending CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy reference. The P9R is compatible with all Shure SCL Sound Isolating Earphones, designed specifically for use with Shure PSM systems.

    Features
    - Ultra-thin, low profile bodypack allows discreet placement on the performer

    - Enhanced digital stereo encoder provides an expansive soundstage for excellent audio clarity and detail

    - RF Scan: stand where the artist will be on stage and instantly check RF level

    - Automatic Gain Control greatly prevents signal dropout due to RF overload and allows more channels to be used simultaneously

    - Syncs to a P9T transmitter quickly and easily over IR link using Scan and Sync

    - Switchable 10/50/100 mW output power provides a robust RF link in a variety of performance environments

    - Separate, easily visible audio and RF status indicator LED's

    - Audio level and battery life metering

    - Selectable high-frequency EQ boost (+3/+6 dB @ 10 kHz)

    - Volume and balance controls

    - Extruded aluminum construction for rugged dependability

    Same Day Music is an authorized dealer of Shure products.

    Shure P9R PSM900 Bodypack Receiver Technical Description

    Front-End RF Filtering: -3 dB point 30.5 MHz from center frequency

    Active RF Gain Control: 31 dB (adjusts RF sensitivity to provide more RF dynamic range)

    RF Sensitivity: (20 dB SINAD) 2.2 V

    Squelch Threshold: (+/-3 dB SINAD) 22 dB SINAD

    Adjacent Channel Rejection: >70 dB

    Intermodulation Attenuation: >70 dB

    Blocking: >80 dB

    Image Rejection: >100 dB

    Audio Output Power: (1kHz @ <1% distortion, peak power, @32Ohm) 100 mW

    Minimum Load Impedance: 9.5 Ohm

    High Boost Selectable: +3 dB, +6 dB @ 10 kHz

    Battery Life: 5-7 hours (continuous use)

    Net Weight: 200 g with batteries

    Dimensions: 83 mm x 65 mm x 22 mm (3.3 in x 2.6 in x .9 in)

    Same Day Music is an authorized dealer of Shure products.
