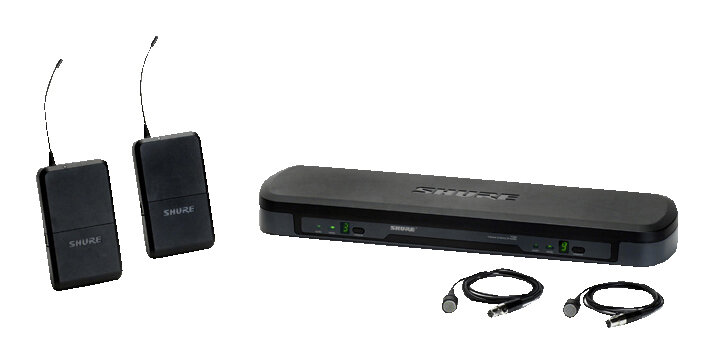

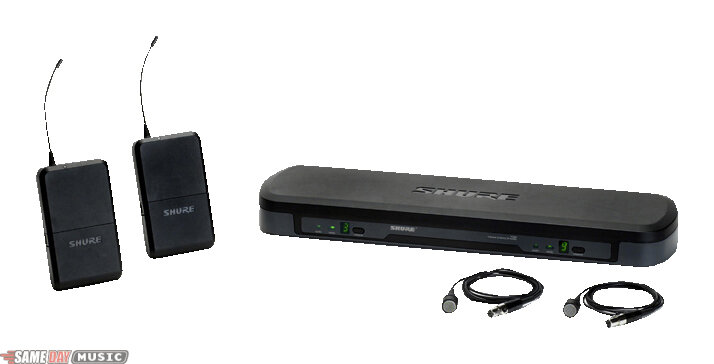

Product Description

Performance Gear Wireless
A comprehensive first step into professional wireless, Performance Gear Wireless Systems are engineered to the same uncompromising quality standards as PGX, SLX, ULX and UHF-R wireless. Marrying superior sound quality and stage-proven endurance with advanced features like Internal Antenna Diversity and frequency selectability, Performance Gear Wireless fulfils the promise of independent, confident performance in freedom from the wire.

Features:
Reliable wireless performance

Up to 8 compatible systems (across multiple bands)

Shure's patented Predictive Diversity ensures continuous reception

Confident, portable setup

Internal Antenna

First in the industry

Internal 1/4 wave antennas minimize poor positioning and breakage

Durable construction

Superior sound quality

Variable companding ratio for clear sound

80 years of microphone expertise

PG185 Condenser Lavalier Microphone
Clothing clip for secure placement

Acoustic windscreen minimizes wind noise in outdoor applications

PG88 Dual Receiver
Internal Antenna Diversity

Dual receiver with up to 10 selectable channels per side

4 compatible dual receivers

2 x 1/4 in. and 2 x XLR outputs

PG1 Bodypack Transmitter
Power, mute and battery status LED

Power and mute switch

9V battery (included) provides 8 hours of battery life

75m (250 ft.) operating range

Technical Description

System
Working Range: 75m (250 ft.) Note: actual range depends on RF signal absorption, reflection, and interference.

Audio Channel Response: Minimum: 45 Hz. Maximum: 15 kHz (overall system channel depends on microphone element).

Total Harmonic Distortion: 0.5%, typical Ref. +/- 33 kHz deviation, 1 kHz tone

Dynamic Range: >100 dB A-weighted, typical

Operating Temperature Range: -18 degreesC (0 degreesF) to +57 degreesC (+135 degreesF) Note: battery characteristics may limit this range

Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PG1 Bodypack Transmitter
Audio Input Level: -10 dBV maximum at "mic" gain position +10 dBV maximum at 0dB gain position +20 dBV maximum at -10dB gain position

Gain Adjustment Range: 30 dB

Input Impedance: 1M ohm

RF Transmitter Output: 10 mW typical (dependent on applicable country regulations)

Dimensions: 110 mm H x 64 mm W x 21 mm D (4.3 x 2.5 x 0.8 in.)

Weight: 75 grams (2.6 oz.) without battery

Housing: Molded ABS

Power Requirements: One 9V alkaline or rechargeable battery

Battery Life: >8 hours (alkaline)

Catalog Description

Professional wireless with economical dual design@Internal diversity antennas@PG 88 dual receiver with up to 10 selectable channels per side
