    Shure PGX1485 UHF Wireless Lavalier System, WL185 Microphone

    Audio Reference Companding, Automatic Transmitter Setup, Automatic Frequency Selection. See below for channel frequencies.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 8.3 Out of 10 (3 ratings)
    ********.**

    Shure PGX14/85 UHF Wireless System with Lavalier Product Description

    It's never been easier to go wireless and sound like a pro. Shure's PGX Performance Gear Wireless brings the superior sound of Shure Microphones together with innovative setup features in eight easy-to-use packages. Durably constructed, with included carrying case, PGX Performance Gear is the perfect system for performers on the go who want worry-free performance, every time.

    PGX Performance Gear Wireless Systems feature Shure's patented Audio Reference Companding for crystal-clear sound beyond the limits of conventional wireless technology.

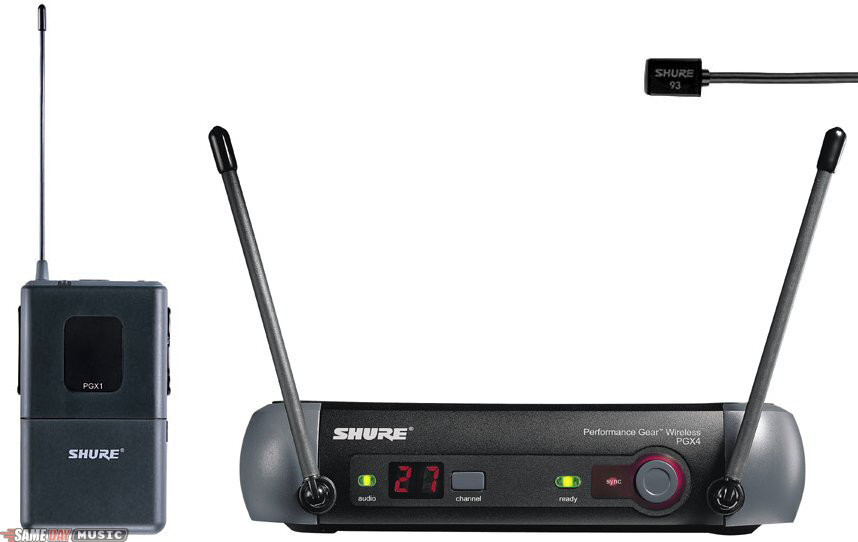

    Model PGX14/85 includes:

    - WL185 lavalier mic
    - PGX1 bodypack transmitter
    - PGX4 diversity receiver

    WL185 Lavalier Mic (Cardioid)

    The WL185 is a lavalier electret condenser microphone designed for use with a wireless body-pack transmitter. This microphone has a 1.2 meter (4 ft.) cable terminated with a miniature 4-pin mini connector. The furnished tie clip can be rotated in 90 degree intervals for placement flexibility.

    Recommended for general purpose sound reinforcement applications requiring good rejection of ambient noise. Use of windscreen highly recommended. Pickup angle is 130 degrees.

    PGX1 Bodypack Transmitter

    Designed to meet the needs of traveling performers, Shures PGX1 can be used with headworn, lavalier, or instrument microphones, or with guitars or basses.

    - Automatic Transmitter Setup
    - Multi-function LED Indicator ((power, lockout, mute, low battery)
    - 10db pad
    - 2 AA batteries provide 8 hours of continuous use
    - 18 MHz operating range

    PGX4 Diversity Receiver

    Shures PGX4 receiver makes wireless setup a snap. With features like Automatic Frequency Selection and Automatic Transmitter Setup, the PGX4 offers the best in wireless to performers on the go.

    - Automatic Transmitter Setup
    - Automatic Frequency Selection
    - 90 Selectable frequencies across 18 MHz bandwidth
    - 1/4 wave antennas
    - Microprocessor- controlled diversity
    - Channel display LED
    - XLR and 1/4 in. outputs

    Consumer Alert
    Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

    NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

    Same Day Music is an authorized dealer of Shure products.

    Shure PGX1485 UHF Diversity Lavalier Technical Description

    Channel Frequencies
    Channel H6: 524.000 to 542.000 MHz
    Channel J6: 572.250 to 589.875 MHz
    Channel L5: 644.000 to 662.000 MHz

    System Working Range: 100 m (300 ft.)
    Note: actual range depends on RF signal absorption, reflection, and interference

    Audio Frequency Response (+/- 2 dB):
    Minimum: 45 Hz
    Maximum: 15 kHz
    (Overall system frequency depends on microphone element.)


    Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical

    Dynamic Range: >100 dB A-weighted

    Operating Temperature Range:
    18 deg. C (0 deg. F) to 50 deg. C (122 deg. F)
    Note: battery characteristics may limit this range


    Transmitter Audio Polarity:
    Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

    PGX4 Receiver
    Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)

    Weight: 327 g (11.5 oz.)

    Housing: ABS

    Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone):
    XLR connector (into 600 & load): 19 dBV
    1/4 inch connector (into 3000 & load): 5 dBV


    Output Impedance:
    XLR connector: 200 Ohms
    1/4 inch connector: 1kOhm


    XLR output:
    Impedance balanced
    Pin 1: Ground (cable shield)
    Pin 2: Audio
    Pin 3: No Audio


    Sensitivity: 105 dBm for 12 dB SINAD, typical

    Image Rejection: >70 dB, typical

    Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply

    PGX1 Bodypack Transmitter
    Audio Input Level:
    -10 dBV maximum at "mic" gain position
    +10 dBV maximum at 0dB gain position
    +20 dBV maximum at -10dB gain position


    Gain Adjustment Range: 30 dB

    Input Impedance 1 MOhm

    RF Transmitter Output: 30 mW maximum
    (dependent on applicable country regulations)

    Dimensions: 108 mm H x 64 mm W x 19 mm D (4.25 x 2.50 x 0.75 in.)

    Weight: 81 grams (3 oz.) without batteries

    Housing: Molded polycarbonate case

    Power Requirements: 2 AA-size alkaline or rechargeable batteries

    Battery Life: >8 hours (w/ alkaline batteries)

    Same Day Music is an authorized dealer of Shure products.

    Shure PGX14/85 UHF Wireless System with Lavalier Catalog Description

    Simple setup, superb sound@Automatic frequency selection@Audio Reference Companding for high-quality sound@Cardioid WL185 lavalier condenser mic@Lightweight bodypack transmitter

    Same Day Music is an authorized dealer of Shure products.

    User Reviews for Shure PGX14/85 UHF Wireless System with Lavalier

    Product Rated 8.3 Out of 10 (3 ratings)
    ********.**

    3 users have rated this product, but no one has reviewed it yet. To rate this item and/or write a review, click the "Rate It" button.
