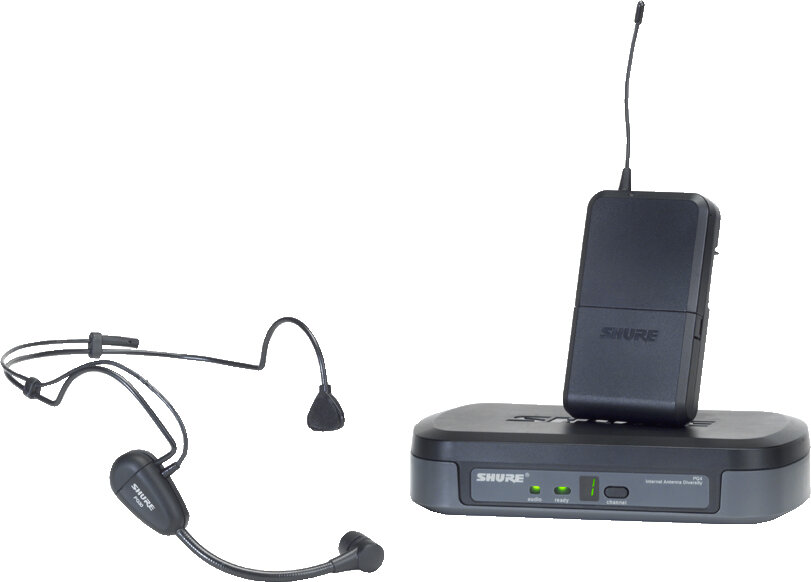

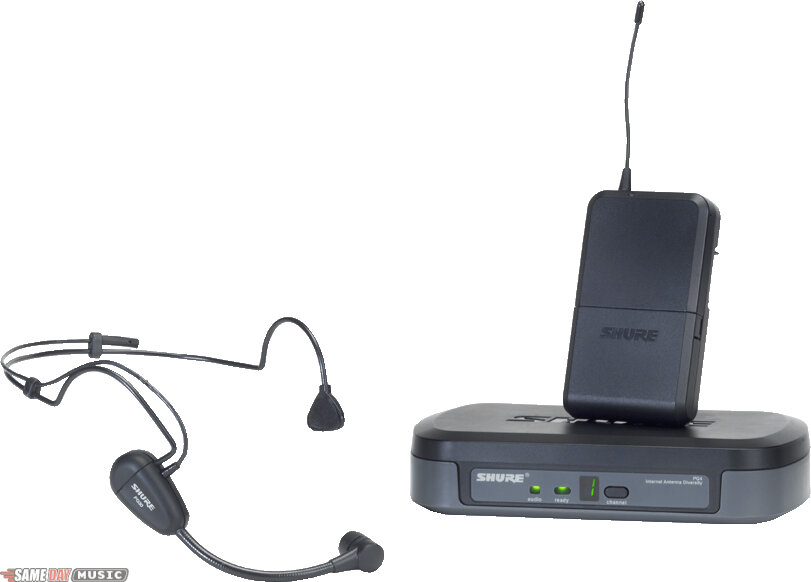

Shure PGX14/PG30 UHF Wireless System, PG30 Headset Microphone

Shure PGX Wireless Series
Created for active musicians and presenters who also manage their own sound, Shure PGX Wireless improves your performance and simplifies your setup. Innovations such as automatic frequency selection and automatic transmitter setup make wireless quicker and completely worry-free. PGX systems now feature Shure's patented Audio Reference Companding, delivering the crystal clear sound quality that pro audio engineers trust. It's the best-sounding, simplest choice in wireless, from the leader in live performance sound.

PGX1 Bodypack Transmitter
Designed to meet the needs of traveling performers, Shure's PGX1 can be used with headworn, lavalier, or instrument microphones, or with guitars or basses.

PGX1 Features
- Audio Reference Companding: crystal-clear sound beyond the limits of conventional wireless technology.
- Automatic Transmitter Setup
- Multi-function LED Indicator (power, lockout, mute, low battery)
- 10db pad
- 2 AA batteries provide 8 hours of continuous use
- 18 MHz operating range

This system includes:
- Shure PGX4 receiver
- Shure PG30 Headset Microphone with PGX1 Beltpack Transmitter
- (2) AA batteries
- Power supply
- User guide
- Carrying case

Optional Accessories
- Zipper Bag (PGX1): model #26A13
- Universal Rack Tray: model #URT

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of Shure products.

Channel Frequencies
- Channel H6: 524.000 to 542.000 MHz
- Channel J6: 572.250 to 589.875 MHz
- Channel L5: 644.000 to 662.000 MHz
- System Working Range: 100 m (300 ft.) Note: actual range depends on RF signal absorption, reflection, and interference
- Audio Frequency Response (+/- 2 dB): Minimum 45 Hz, Maximum 15 kHz (Overall system frequency depends on microphone element.)
- Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical
- Dynamic Range: >100 dB A-weighted
- Operating Temperature Range: 18 deg. C (0 deg. F) to 50 deg. C (122 deg. F) (Note: battery characteristics may limit this range)
- Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

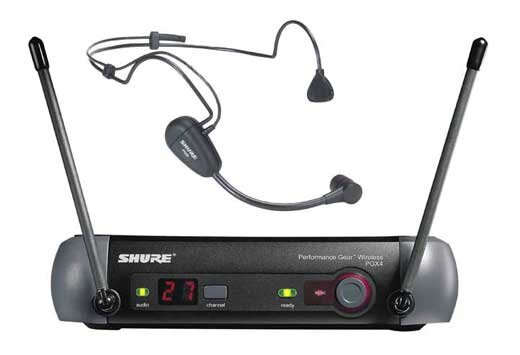

PGX4 Receiver
- Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)
- Weight: 327 g (11.5 oz.)
- Housing: ABS
- Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone): XLR connector (into 600 & load): 19 dBV, 1/4 inch connector (into 3000 & load): 5 dBV
- Output Impedance: XLR connector: 200 Ohms. 1/4 inch connector: 1kOhm
XLR output: Impedance balanced, Pin 1: Ground (cable shield), Pin 2: Audio, Pin 3: No Audio
- Sensitivity: 105 dBm for 12 dB SINAD, typical
- Image Rejection: >70 dB, typical
- Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply

PGX1 Bodypack Transmitter
- Audio Input Level: -10 dBV maximum at "mic" gain position, +10 dBV maximum at 0dB gain position, +20 dBV maximum at -10dB gain position
- Gain Adjustment Range: 30 dB
- Input Impedance 1 MOhm
- RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)
- Dimensions: 108 mm H x 64 mm W x 19 mm D (4.25 x 2.50 x 0.75 in.)
- Weight: 81 grams (3 oz.) without batteries
- Housing: Molded polycarbonate case
- Power Requirements: 2 AA-size alkaline or rechargeable batteries
- Battery Life: >8 hours (w/ alkaline batteries)

Same Day Music is an authorized dealer of Shure products.

Shipping Weights and Dimensions

Channel H6 (524 - 542 MHz)

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 13 x 4 in

Channel J6 (572 - 590 MHz)

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 13 x 4 in

Channel L5 (644 - 662 MHz)

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 13 x 4 in
