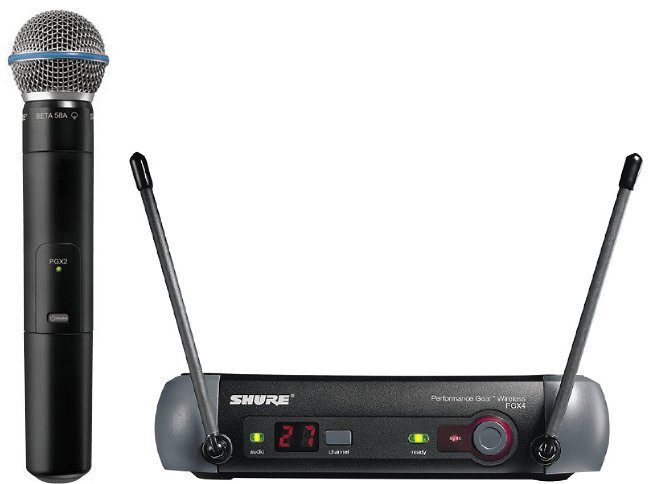

Shure PGX24 UHF Handheld Wireless System with Beta58 Microphone
Frequency-agile system. Automatic frequency selection. Use up to 9 PGX systems together. See below for channel frequencies.
Product rated 7.8 out of 10 (8 ratings)
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
PRODUCT DESCRIPTION
Shure PGX Wireless Series
Created for active musicians and presenters who also manage their own sound, Shure PGX Wireless improves your performance and simplifies your setup. Innovations such as automatic frequency selection and automatic transmitter setup make wireless quicker and completely worry-free. PGX systems now feature Shure's patented Audio Reference Companding, delivering the crystal clear sound quality that pro audio engineers trust. It's the best-sounding, simplest choice in wireless, from the leader in live performance sound.
Shure Beta 58A Microphone with PGX2 Transmitter
In the tradition of the SM58, the Beta 58A dynamic microphone has become a top choice among vocalists and touring sound professionals.
The Shure Beta 58A is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It maintains a true supercardioid pattern throughout its frequency range. This insures high gain-before-feedback, maximum isolation from other sound sources, and minimum off-axis tone coloration. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille. Typical applications for the Beta 58A include lead vocals, backup vocals and speech.
Features
Smooth, extended frequency response for outstanding sound for professional live vocal use
Consistent supercardioid pattern provides the best gain-before-feedback among dynamic microphones
Pneumatic shock mount reduces handling noise
Frequency response: 50 to 16,000 Hz
This system includes:
Shure PGX4 receiver
Shure Beta 58A Microphone with PGX2 Transmitter
(2) AA batteries
Power supply
User guide
Carrying case
Microphone clip
Optional Accessories
Black Microphone Grille: model #RK323G
Zipper Bag (PGX2): model # 26A14
Universal Rack Tray: model #URT
Created for active musicians and presenters who also manage their own sound, Shure PGX Wireless improves your performance and simplifies your setup. Innovations such as automatic frequency selection and automatic transmitter setup make wireless quicker and completely worry-free. PGX systems now feature Shure's patented Audio Reference Companding, delivering the crystal clear sound quality that pro audio engineers trust. It's the best-sounding, simplest choice in wireless, from the leader in live performance sound.
Shure Beta 58A Microphone with PGX2 Transmitter
In the tradition of the SM58, the Beta 58A dynamic microphone has become a top choice among vocalists and touring sound professionals.
The Shure Beta 58A is a high-output supercardioid dynamic vocal microphone designed for professional sound reinforcement and project studio recording. It maintains a true supercardioid pattern throughout its frequency range. This insures high gain-before-feedback, maximum isolation from other sound sources, and minimum off-axis tone coloration. The Beta 58A has a shaped frequency response that is ideal for close-up vocals. The superb performance of this microphone is not affected by rough handling because of its rugged construction, proven shock mount system, and hardened steel mesh grille. Typical applications for the Beta 58A include lead vocals, backup vocals and speech.
Features
Smooth, extended frequency response for outstanding sound for professional live vocal use
Consistent supercardioid pattern provides the best gain-before-feedback among dynamic microphones
Pneumatic shock mount reduces handling noise
Frequency response: 50 to 16,000 Hz
This system includes:
Shure PGX4 receiver
Shure Beta 58A Microphone with PGX2 Transmitter
(2) AA batteries
Power supply
User guide
Carrying case
Microphone clip
Optional Accessories
Black Microphone Grille: model #RK323G
Zipper Bag (PGX2): model # 26A14
Universal Rack Tray: model #URT
TECHNICAL DESCRIPTION
Channel Frequencies
Channel H6: 524.000 to 542.000 MHz
Channel J6: 572.250 to 589.875 MHz
Channel L5: 644.000 to 662.000 MHz
System Working Range: 100 m (300 ft.)
Note: actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response (+/- 2 dB):
Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)
Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical
Dynamic Range: >100 dB A-weighted
Operating Temperature Range:
18 deg. C (0 deg. F) to 50 deg. C (122 deg. F)
Note: battery characteristics may limit this range
Transmitter Audio Polarity:
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
PGX4 Receiver
Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)
Weight: 327 g (11.5 oz.)
Housing: ABS
Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone):
XLR connector (into 600 & load): 19 dBV
1/4 inch connector (into 3000 & load): 5 dBV
Output Impedance:
XLR connector: 200 Ohms
1/4 inch connector: 1kOhm
XLR output:
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Sensitivity: 105 dBm for 12 dB SINAD, typical
Image Rejection: >70 dB, typical
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
PGX2 Handheld Transmitter
Audio Input Level:
+2 dBV maximum at -10dB position
-8 dBV maximum at 0dB position
Gain Adjustment Range: 10dB
RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)
Dimensions: 254 mm x 51 mm dia. (10 x 2 in.) (including SM58 cartridge)
Weight: 290 grams (10.2 oz.) (without batteries)
Housing: Molded PC/ABS handle and battery cup
Power Requirements: 2 AA-size alkaline or rechargeable batteries
Battery Life: >8 hours (alkaline batteries)
Channel H6: 524.000 to 542.000 MHz
Channel J6: 572.250 to 589.875 MHz
Channel L5: 644.000 to 662.000 MHz
System Working Range: 100 m (300 ft.)
Note: actual range depends on RF signal absorption, reflection, and interference
Audio Frequency Response (+/- 2 dB):
Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)
Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical
Dynamic Range: >100 dB A-weighted
Operating Temperature Range:
18 deg. C (0 deg. F) to 50 deg. C (122 deg. F)
Note: battery characteristics may limit this range
Transmitter Audio Polarity:
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.
PGX4 Receiver
Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)
Weight: 327 g (11.5 oz.)
Housing: ABS
Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone):
XLR connector (into 600 & load): 19 dBV
1/4 inch connector (into 3000 & load): 5 dBV
Output Impedance:
XLR connector: 200 Ohms
1/4 inch connector: 1kOhm
XLR output:
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio
Sensitivity: 105 dBm for 12 dB SINAD, typical
Image Rejection: >70 dB, typical
Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
PGX2 Handheld Transmitter
Audio Input Level:
+2 dBV maximum at -10dB position
-8 dBV maximum at 0dB position
Gain Adjustment Range: 10dB
RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)
Dimensions: 254 mm x 51 mm dia. (10 x 2 in.) (including SM58 cartridge)
Weight: 290 grams (10.2 oz.) (without batteries)
Housing: Molded PC/ABS handle and battery cup
Power Requirements: 2 AA-size alkaline or rechargeable batteries
Battery Life: >8 hours (alkaline batteries)
CATALOG DESCRIPTION
Automatic frequency selection@Automatic transmitter setup@Includes supercardioid Beta 58 mic
