Product Description

Shure PGX Wireless Series
Created for active musicians and presenters who also manage their own sound, Shure PGX Wireless improves your performance and simplifies your setup. Innovations such as automatic frequency selection and automatic transmitter setup make wireless quicker and completely worry-free. PGX systems now feature Shure's patented Audio Reference Companding, delivering the crystal clear sound quality that pro audio engineers trust. It's the best-sounding, simplest choice in wireless, from the leader in live performance sound.

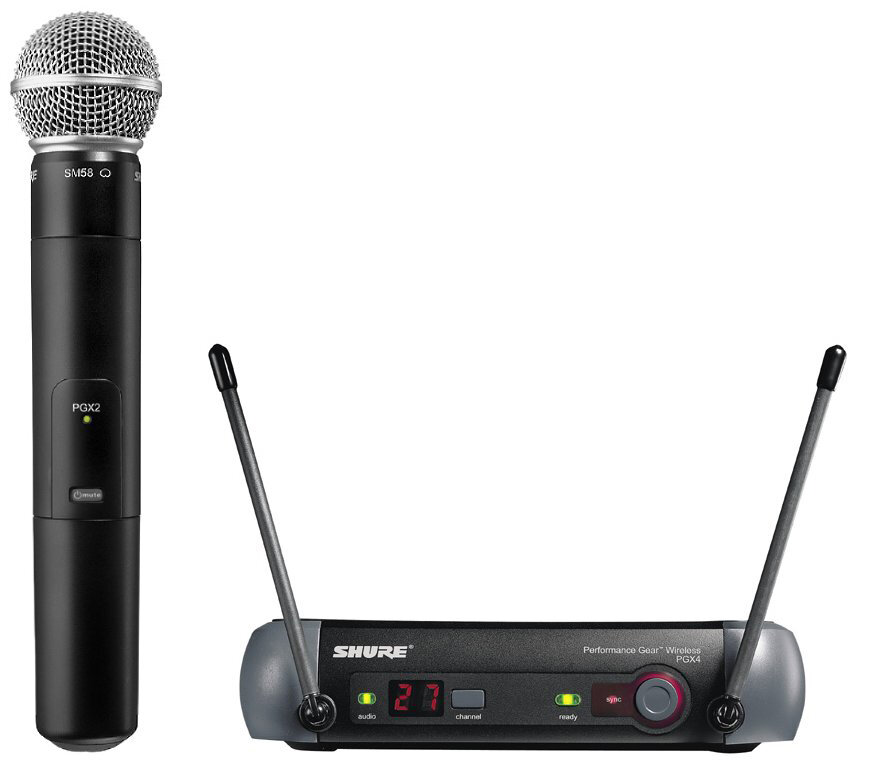

Shure SM58 Microphone with PGX2 Transmitter
This legendary Shure vocal mic is tuned to accentuate the warmth and clarity of lead and back-up vocals. Consistently the first choice of performers around the globe, the Shure SM58 is a unidirectional (cardioid) dynamic vocal microphone designed for professional vocal use in live performance, sound reinforcement, and studio recording. A highly effective, built-in, spherical filter minimizes wind and breath "pop" noise. A cardioid pickup pattern isolates the main sound source while minimizing unwanted background noise. The SM58 has a tailored vocal response for a sound which is a world standard. Rugged construction, a proven shock mount system, and a steel mesh grille ensure that even with rough handling, the SM58 will perform consistently. Outdoors or indoors, singing, speech - the SM58 is the overwhelming choice of professionals.

Features
Frequency response tailored for vocals, with brightened midrange and bass rolloff

Uniform cardioid pickup pattern isolates the main sound source and minimizes background noise

Pneumatic shock-mount system cuts down handling noise

Effective, built-in spherical wind and pop filter

Supplied with break-resistant stand adapter which rotates 180 degrees

Lengendary Shure quality, ruggedness and reliability

Pattern: Cardioid (unidirectional); dynamic microphone

Frequency response: 50 to 15,000 Hz

This system includes:
Shure PGX4 receiver

Shure SM58 Microphone with PGX2 Transmitter

(2) AA batteries

Power supply

User guide

Carrying case

Microphone clip

Optional Accessories
Zipper Bag (PGX2): model # 26A14

Universal Rack Tray: model #URT

Technical Description

Channel Frequencies
Channel H6: 524.000 to 542.000 MHz
Channel J6: 572.250 to 589.875 MHz
Channel L5: 644.000 to 662.000 MHz

System Working Range: 100 m (300 ft.)
Note: actual range depends on RF signal absorption, reflection, and interference

Audio Frequency Response (+/- 2 dB):
Minimum: 45 Hz
Maximum: 15 kHz
(Overall system frequency depends on microphone element.)

Total Harmonic Distortion (Ref. +/- 33 kHz deviation, 1 kHz tone): 0.5 %, typical

Dynamic Range: >100 dB A-weighted

Operating Temperature Range:
18 deg. C (0 deg. F) to 50 deg. C (122 deg. F)
Note: battery characteristics may limit this range

Transmitter Audio Polarity:
Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4-inch output.

PGX4 Receiver
Dimensions: 40 mm H x 181 mm W x 104 mm D (1.6 x 7.125 x 4.1 in.)

Weight: 327 g (11.5 oz.)

Housing: ABS

Audio Output Level (Ref. +/- 33 kHz deviation with 1 kHz tone):
XLR connector (into 600 & load): 19 dBV
1/4 inch connector (into 3000 & load): 5 dBV

Output Impedance:
XLR connector: 200 Ohms
1/4 inch connector: 1kOhm

XLR output:
Impedance balanced
Pin 1: Ground (cable shield)
Pin 2: Audio
Pin 3: No Audio

Sensitivity: 105 dBm for 12 dB SINAD, typical

Image Rejection: >70 dB, typical

Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply

PGX2 Handheld Transmitter
Audio Input Level:
+2 dBV maximum at -10dB position
-8 dBV maximum at 0dB position

Gain Adjustment Range: 10dB

RF Transmitter Output: 30 mW maximum (dependent on applicable country regulations)

Dimensions: 254 mm x 51 mm dia. (10 x 2 in.) (including SM58 cartridge)

Weight: 290 grams (10.2 oz.) (without batteries)

Housing: Molded PC/ABS handle and battery cup

Power Requirements: 2 AA-size alkaline or rechargeable batteries

Battery Life: >8 hours (alkaline batteries)

Catalog Description

Top-quality sound, simple setup@Frequency-agile system with automatic frequency selection@Use up to 9 PGX systems together@Audio Reference Companding delivers crystal clear sound quality@Cardioid SM58 dynamic mic with frequency response tailored for vocals
