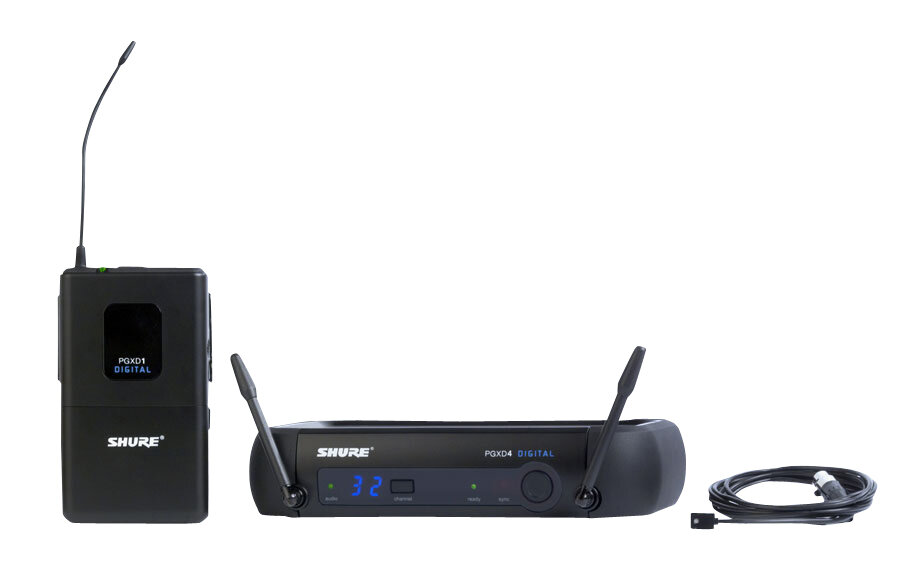

Shure PGX Wireless Lavalier Digital Microphone System (with WL93 Mic)

The PGX Digital Vocal Wireless System from Shure adds the clarity of 24-bit digital audio to the legacy of trusted Shure microphone options for wireless performance. This system includes the WL93 sub-miniature omnidirectional condenser lavalier for natural voice reproduction and discreet placement. Also included is a tie clip and windscreen.

Features

- Sub-miniature lavalier design with inconspicuous mounting hardware for discreet placement
- Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
- Power, mute, and battery status LED
- Up to 10 hours of continuous use from 2 AA batteries
- 200 ft (60 m) operating range
- Rugged construction for reliable performance show after show
- Low profile bodypack, easily clips onto belts or clothing

Features

- 24-bit / 48 kHz digital technology for incredibly accurate sound
- Automatic frequency selection locates a clear channel instantly
- One-touch sync automatically links the transmitter and receiver
- True digital diversity for rock-solid wireless signal reliability
- Up to 10 compatible channels per frequency band
- 1/4-inch and XLR audio outputs
- Included padded carrying case for portability and protection

This system includes:
- PGXD4 wireless receiver
- PGXD1 bodypack transmitter
- WL93 lavalier microphone
- Tie clip
- Windscreen
- Padded carrying case

Consumer Alert

Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Same Day Music is an authorized dealer of Shure products.

Shure PGXD4 Receiver:

- Housing: ABS
- Audio Output Level (ref. +/- 38 kHz deviation, 1 kHz tone):
- - XLR connector (into 3000 Ohms load): -2.5 dBV
- - 1/4 inch connector (into 10000 Ohms load): +10 dBV
- Impedance: XLR: 50 Ohms, 1/4 inch: 50 Ohms
- Sensitivity: -102 dBm at 10-5 BER
- Image Rejection: > 70 dB, typical
- Audio Outputs: Balanced XLR; TRS 1/4 inch
- Audio LED: Red: 2 dB below clip, Amber: 12 dB below clip, Green: 50 dB below clip
- Power Requirements: 12-18 Vdc at 150 mA, supplied by external power supply
- Dimensions (HxWxD): 1.6 x 7.125 x 4.1 inches (40 x 181 x 104 mm)
- Weight: 289 g (10.2 oz.)

Shure PGXD1 Bodypack Transmitter Specifications

- Audio Input Level: +10 dBV maximum, at minimum gain setting, -16 dBV maximum, at maximum gain setting
- Gain Adjustment Range: 26 dB
- Input Impedance: 1 M ohms
- RF Output Level: 10 mW maximum (dependent on applicable country regulations)
- Dimensions (HxWxD): 4.25 x 2.50 x 0.75 inches (108 x 64 x 19 mm)
- Weight: 128 grams (4.5 oz.) without batteries
- Housing: Molded polycarbonate case
- Power Requirements: 2 AA size batteries
- Battery Life: Up to 10 hours

Same Day Music is an authorized dealer of Shure products.

Shipping Weights and Dimensions

Group X8, Frequencies 902.00 - 928.00

Shipping Weight: 5 lbs

Shipping Dimensions: 18 x 13 x 5 in

Group X8 with Gator GM1W Wireless Bag

Shipping Weight: 7 lbs
