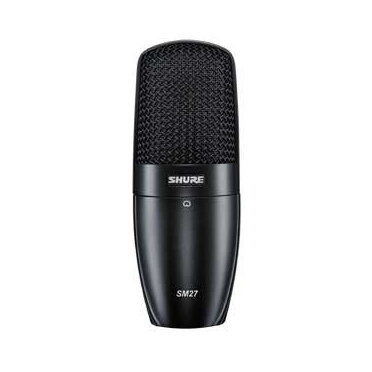

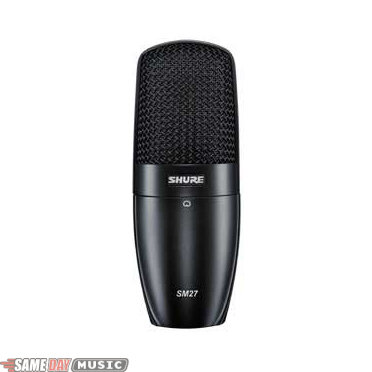

A rugged and versatile large-diaphragm, side-address cardioid microphone, with low self-noise and extended frequency response, the Shure SM27 Condenser Microphone picks up vocal and instrument nuances with clarity. Durable Shure construction features three separate mesh layers that reduce wind and breath noise. The SM27 is equally comfortable on stage or in the studio and works just as hard as you do.
FeaturesUniform cardioid pattern for superior off axis rejection
Superior transient response from a low-mass large Mylar diaphragm
Flat, neutral frequency response for natural reproduction on stage or in the studio
3-position switchable low-frequency filter helps reduce unwanted background noise or counteract proximity effect for consistent, extended low-end
Durable metal construction
Three separate mesh layers reduces wind and breath noise
15dB pad for performance consistency across a wider range of high SPL sources

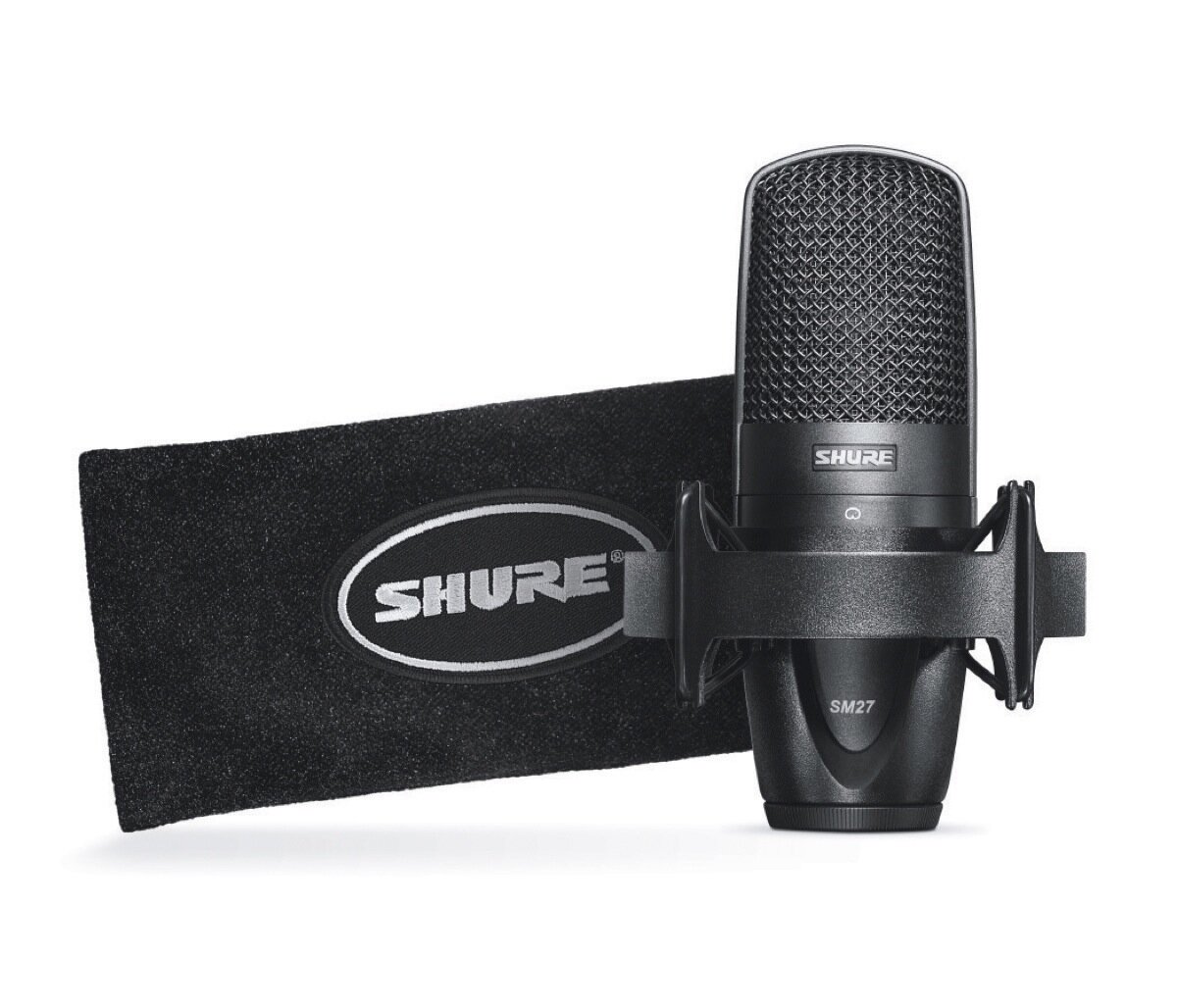

NOTE: The SM27 SC version includes a rubber suspension shock mount, and velveteen storage pouch (U.S. Only).
Same Day Music is an authorized dealer of
Shure
products.
Cartridge Type: Externally Biased Condenser
Frequency Response: 20 to 20,000 Hz
Directional Polar Pattern: Cardioid
Output Impedance: EIA Rated at 150 ohms (140 ohms actual)
Attenuation Switch: 0 or 15 dB attenuation
Low Frequency response switch: Flat
- -6 db/octave below 115 Hz
- -18 dB/octave below 80 Hz
Phantom Power: 48 Vdc +/- 4 Vdc (positive pins 2 and 3)
Current Drain: 5.4 mA typical at 48 Vdc
Common Mode Rejection: >50 dB, 20 Hz to 20 kHz
Polarity: Positive pressure on diaphragm produces positive voltage on output pin 2 relative to pin 3
Sensitivity: -37 dBV/Pa (typical, at 1000 Hz; 1Pa = 94 dB SPL)
Selfnoise: 9.5 dB (typical, equivalent SPL; Aweighted, IEC 651)
Maximum SPL: at 1000 Hz
- 2500 ohm load (Attenuator on): 137 (152) dB
- 1000 ohm load (Attenuator off): 132 (147) dB
Output Clipping Level:
- 2500 ohm load: 7 dBV
- 1000 ohm load: 1 dBV
Dynamic Range:
- 2500 ohm load: 123 dB
- 1000 ohm load: 118 dB
Signal to Noise ratio: 80 dB
Dimensions:
- 2.08 inches (53 mm) maximum body diameter
- 6.15 inches (156.2 mm) long
Weight: 22.6 ounces (642 g)
Same Day Music is an authorized dealer of
Shure
products.
- Shipping Weights and Dimensions
- Shipping Weight: 3 lbs
-
Shipping Dimensions:
11 x
9 x
5 in
