Product Description

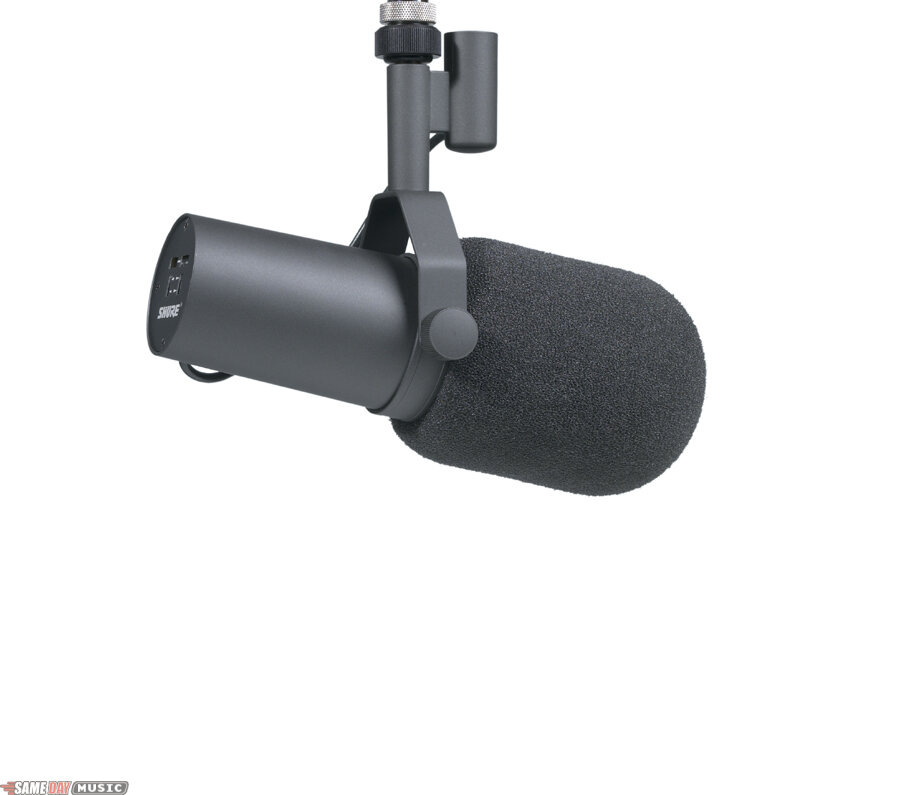

The SM7B dynamic microphone has a smooth, flat, wide-range frequency response appropriate for music and speech in all professional audio applications. It features excellent shielding against electromagnetic hum generated by computer monitors, neon lights, and other electrical devices. The SM7B has been updated from earlier models with an improved bracket design that offers greater stability. In addition to it's standard windscreen, it also includes the A7WS windscreen for close-talk applications.

Features

Flat, wide-range frequency response for exceptionally clean and natural reproduction of both music and speech

Bass rolloff and mid-range emphasis (presence boost) controls with graphic display of response setting

Improved rejection of electromagnetic hum, optimized for shielding against broadband interference emitted by computer monitors

Internal "air suspension" shock isolation virtually eliminates mechanical noise transmission

Highly effective pop filter eliminates need for any add-on protection against explosive breath sounds, even for close-up vocals or narration

Now shipping with the A7WS detachable windscreen, designed to reduce plosive sounds and gives a warmer tone for close-talk vocals

Yoke mounting with captive stand nut for easy mounting and dismounting provides precise control of microphone position

Classic cardioid polar pattern, uniform with frequency and symmetrical about axis, to provide maximum rejection and minimum coloration of off-axis sound

Rugged construction and excellent cartridge protection for outstanding reliability

SM7B includes foam windscreen, close-talk windscreen, locking yoke mount.

Technical Description

Type: Dynamic

Frequency Response: 50 to 20,000 Hz

Polar Pattern: Cardioid (unidirectional)

Impedance: Microphone impedance rating is 150 ohms (150 ohms actual) for connection to microphone inputs rated at 19 to 300 ohms.

Polarity:
- Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3.

- Output Level (at 1,000 Hz)

- Open Circuit Voltage*: -59.0 dB (1.12 mV)

- 0 dB = 1 volt per Pascal

Electromagnetic Hum Sensitivity (Typical, Equivalent SPL/milliOersted):
- 60 Hz: 11 dB
- 500 Hz: 24 dB
- 1 kHz: 33 dB

Switches: Bass rolloff and mid-range emphasis: Slotted response selector switches.

Cartridge Shock Mount: Internal air-suspension shock and vibration isolator.

Microphone Connector: Three-pin professional audio (XLR)

Swivel Assembly: Integrated, captive nut for ease of attachment to stand, fits 5/8 in.-27 thread.

Mic Chassis: Dark gray enamel aluminum and steel case with dark gray foam windscreen.

Net Weight: 765.4 grams (1 lb, 11 oz)
