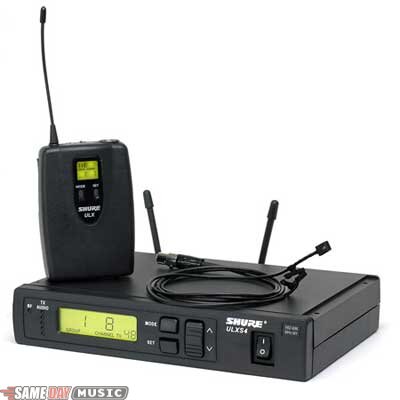

    Shure ULXS1493 UHF Wireless Lavalier System

    Free up your hands and free yourself from cables with the SHura ULXS1493 UHF wireless lavalier system.
    Product Rated 9.4 Out of 10 (13 ratings)
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 1ZY-8NMY

    Web Item #SHUULXS1493

    Shure ULXS1493 Lavalier Wireless

    More Resources

    Manuals and Documents: Spec Sheet User Guide
    Shure Warranty: If you have additional warranty questions, please call the manufacturer at 800-25-SHURE
    Order Now | Limited Qty
    • 2 Day: $4
    • Overnight: $16
    This product ships to: Can ship to United States

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Shure ULXS14/93 UHF Subminiature Lavalier Wireless System Product Description

    ULX Standard UHF systems represent a breakthrough in performance and price for both working musicians and professional sound installers. Multiple system configurations provide limitless options, each with a choice of legendary Shure microphone transmitters. Over 1400 selectable, pre-programmed frequencies are available, and Automatic Frequency Selection provides a straight shot to a clear channel.

    WL93 Lavalier Microphone

    WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a
    visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications.

    ULXS4 Diversity Receiver

    - Automatic Frequency Selection
    - Over 1400 selectable frequencies
    - Predictive Diversity
    - RF presence LED
    - 5 segment audio meter
    - 3 segment transmitter battery fuel gauge
    - Multi-function LCD
    - 1/2 rack design
    - Detachable 1/4 wave antennas
    - Durable plastic chassis
    - Locking DC connector
    - XLR and 1/4 in. outputs
    - Mic/line switchable

    ULX1 Transmitter

    - 3 segment battery fuel gauge
    - Backlit LCD shows group and channel
    - Frequency and power settings
    - Control lockout
    - 8-hour battery life
    - 300 ft (92m) operating range
    - 20dB pad switch on ULX1

    About ULX Series

    Shure's ULX Series is wireless the way it should be - simple, agile, and bulletproof solutions that are affordable for working musicians and professional sound installers. Wireless traffic jamming your transmissions? The frequency agile ULX features Automatic Frequency Selection finds open frequencies for you. Whether ULX Standard or Professional Series Systems, the clear channels and strong transmission free you to concentrate on what matters most - your sound.

    Consumer Alert
    Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at

    NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

    Same Day Music is an authorized dealer of Shure products.

    Shure ULXS1493 UHF Diversity Lavalier Technical Description

    Channel Frequencies
    Channel J1: 554 to 590 MHz
    Channel M1: 662 to 698 MHz

    RF Carrier Frequency Range: 554.000 to 865.000 MHz (Available frequencies depend on the applicable regulations in the country where the system is used).

    Effective Range: 100 m (300 ft.) under optimal conditions

    Note: Actual working range depends on RF signal absorption, reflection, and interference.

    Audio Frequency Response: 25 to 15,000 Hz, +/-2 dB

    Note: Overall system frequency response depends on the micro-phone element. *Output Level: Microphone Level = Line Level - 20 dB

    Transmitter Audio Polarity: Positive pressure on microphone diaphragm (or positive volt-age applied to tip of WA302 phone plug) produces positive volt-age on pin 2 (with respect to pin 3 of low impedance output) and the tip of the high impedance 1/4 in. output

    Transmitter Gain Adjustment Range: 25 dB

    Receiver Audio Output Level (+/-38 kHz deviation, 1 kHz tone):
    XLR connector (into 600 ohm load): +3.9 dBV (line), 17 dBV (mic)
    1/4 in.connector (into 3000 ohm load) : 2 dBV

    ULX1 (input): 1 Megohm
    ULXS4 (output): 50 ohms at line level; 2000 ohms at mic level

    Modulation: +/-38 kHz deviation compressor-expander system with pre- and de-emphasis.

    RF Power Output: 30 mW maximum

    Dynamic Range: >100 dB, A-weighted

    RF Sensitivity: 1.26 uV for 12 dB SINAD (typical)

    Image Rejection: 80 dB typical

    Spurious Rejection: 75 dB typical

    Ultimate Quieting (reference +/-38 kHz deviation): >105 dB, A-weighted

    System Distortion (reference +/-38 kHz deviation, 1 kHz modulation): 0.3% total harmonic distortion, typical

    Power Requirements
    ULX1: 9V alkaline battery (Duracell MN1604 recommended); 8.4V Nicad optional
    ULXS4: 14 - 18 Vdc (negative ground), 550 mA

    Battery Life: 8 to 9 hrs (with 9V Duracell MN1604 alkaline battery)

    Operating Temperature Range: -20 degrees to 49 degrees C (-4 degrees to 120 degrees F)

    Note: Battery characteristics may limit this range.

    Overall Dimensions
    ULX1 (H x W x D): 96.5 x 67 x 26.7 mm (3.86 x 2.68 x 1.10 in.)
    ULX4S (H x W x D): 43 x 214 x 163 mm (1.72 x 8.56 x 6.52 in.)

    Net Weight
    ULX1: 79 g (2.8 oz.), without battery
    ULXS4: 1049 g (2 lbs., 5 oz.)

    Same Day Music is an authorized dealer of Shure products.

    User Reviews for Shure ULXS14/93 UHF Subminiature Lavalier Wireless System

    Product Rated 9.4 Out of 10 (13 ratings)

    13 users have rated this product, but no one has reviewed it yet. To rate this item and/or write a review, click the "Rate It" button.
