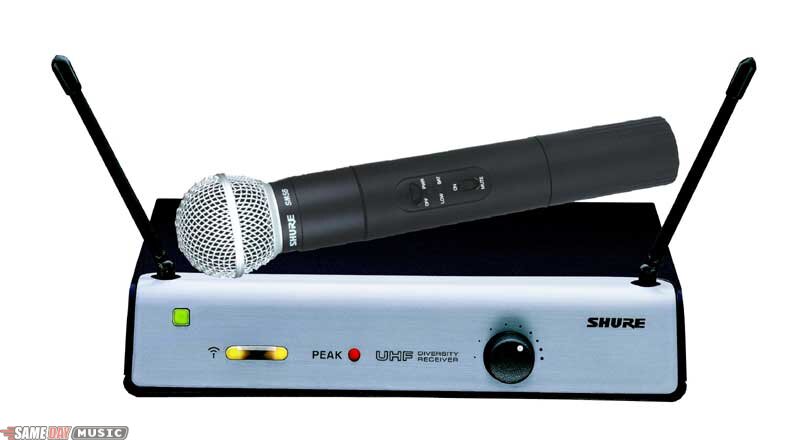

Shure UT Series Vocal Artist UHF Wireless System with SM58 Microphone Element

    System Includes: UT4 MARCAD Diversity Receiver, UT2/58 Handheld Transmitter with SM58 Cardioid Mircophone.

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    Product Rated 9.7 Out of 10 (39 ratings)
    **********

    Product Description

    The Vocal Artist UHF System
    If you're a vocalist who is serious about delivering energetic, great-sounding performances, The Vocal Artist UHF is the system for you.

    The system comes complete with the world standard SM58. The SM58 utilizes a specially designed internal shock mount that minimizes the rumble caused by mic handling and stand vibration.

    Includes
    (1) UT2/58 Handheld Transmitter with SM58 Cardioid Microphone
    (1) 9V Duracell(TM) Battery

    (1) UT4 MARCAD Diversity Receiver
    (1) Swivel Adapter

    (1) PS20 Power Supply
    (1) Zippered Transmitter/Accessory Bag

    Finally, a high-quality UHF wireless system that's highly affordable.
    From the innovative minds of Shure comes the first affordable UHF systems that are as good as their name: the UT Series UHF Wireless Systems.

    For the money, you'll find no better UHF wireless system. The UT Series gives you all the freedom and flexibility of the popular T Series VHF system, now in a UHF format. So you'll get a less crowded operating band for a clear, interference-free sound.

    Shure's "battery saver" technology provides up to 12 hours of battery life and operates in conjunction with 2 LED indicators; one for on/off and another to warn when battery life is low. A convenient mute switch delivers noiseless control of audio on/off functions, while Shure's noise squelch circuitry virtually eliminates noise bursts.

    With a UT Series UHF Wireless System, you'll have the freedom to deliver your most professional performance every time.

    Technical Description

    System Includes: UT4 MARCAD Diversity Receiver, UT2/58 Handheld Transmitter with SM58 Cardioid Mircophone.

    RF Carrier Frequency Range:
    Approximately 596 to 862 MHz (Available frequencies depend on applicable regulations in country where system is used).

    Operating Range: 100 m (approximately 300 ft) under typical conditions

    Audio Frequency Response: 20 to 16,000 Hz, +/-3 dB

    Image Rejection: 75 dB typical

    Spurious Rejection: 75 dB typical

    System Distortion (ref. +/- 45 kHz deviation, 1 kHz modulation): 0.1% THD typical

    Signal/Noise Ratio: 90 dB

    Sensitivity: 110 dBm for 12 dB SINAD typical

    Maximum Recommended Input Level, UT1 (attenuation switch at 20 dB, gain at minimum): +32 dBV

    Minimum Recommended Input Level, UT1 (attenuation switch at 0 dB, gain at maximum): ?80 dBV

    Operating Temperature Range
    -29 to 74 degrees C (20 to 165 degrees F) NOTE: Battery characteristics may limit this range.

    Battery Life
    UT2: 12 hours with 9V alkaline battery (Duracell MN1604 recommended).

    UT2
    RF Output: 15 mW Typical

    Dimensions (H x D):
    UT2/58: 241 x 51 mm (9.49 x 2.01 in.)
    UT2/Beta 58: 241.3 x 36.83 mm (9.5 x 1.45 in.)

    Net Weight: 296 g (10.4 oz.)

    Power Requirement:
    9 V alkaline battery (Duracell MN1604 recommended)
    9 V lithium ULTRALIFE battery optional

    Nominal Current Drain: 40 mA

    UT4
    Maximum Output Levels:
    XLR Line Level: +10 dBV, Mic Level: 22 dBV
    1/4 in.: +4 dBV

    Nominal Output Levels:
    XLR: Line Level: 26 dBV, Mic Level: 62 dBV
    1/4 in.: 32 dBV

    Output Configuration: Active Balanced Unbalanced

    Actual Impedance:
    XLR: Line Level: 138 Ω, Mic Level: 500 Ω
    1/4 in.: 1 k

    Connector Pin Assignments:
    XLR: Pin 1: ground, Pin 2: hot, Pin 3: cold
    1/4 in.: Tip: hot, sleeve: ground

    Dimensions (H x W x D): 41 x 197 x 138 mm (1.625 x 7.77 x 5.42 in.)

    Net Weight 419.6 g (14.8 oz.)

    Power Requirements: 12-18 Vdc nominal, 200mA

    Power Supply: 120 V or 230V AC adapter with 2.1 mm female plug

    Voltage/Current/Phantom Power Protection: Yes
