SM Pro Audio CT2 Cable Tester
6-position rotary selector with individual LED's for up to five pins plus internal battery life check, Rugged construction, multiple connections
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
ADDITIONAL VIEWS:

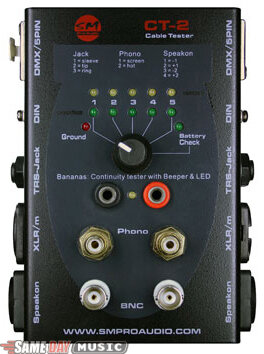

Main
With Cables - Top
Side
With Cables - Side
PRODUCT DESCRIPTION
The CT2 is a multi-format cable/connector test unit designed to quickly and efficiently test a wide variety of standard audio cables and connectors. Built to withstand the rigours of even the most hardened road crews, the CT2 is a compact battle-proof tool that should not be left out of any serious audio toolbox. Equally suited to stage and studio as it is for Home Theatre and Hi-Fi, the CT2 adapts to all manner of audio interconnections and situations.
Features:
6-position rotary selector with individual LED's for up to five pins plus internal battery life check
Allows connection between different format connectors with ease.
Connections include:
- 2 x Speakon
- 2 x 1/4" (6.5mm) TRS/TS
- 2 x XLR
- 2 x RCA Phono
- 2 x BNC
- 2 x MIDI (5-pin DIN)
- 2 x DMX (5-pin)
- 2 x Banana
'Banana' connector continuity tester with beeper and LED indicator
Super rugged construction for durability and long life
The CT2 requires power for operation from a standard 9v battery for operation (battery not included). You can check battery performance by simply selecting the rotary selector fully clockwise to the ‘Battery Check’ position. If the LED indicator illuminates you battery has tested OK. If the LED fails to illumintate your battery is drained of power and requires replacement.
The basic operation guide for testing cables is to connect one end of your cable to the left hand side connector sockets of the CT2, and the other end of your cable to the right hand side of the CT2. Depending on how many pin to -> pin cable connections are housed within your currently connected cable, simply turn the rotary dial through each position and take note of the LED indicators status (on/off). If the selected pin to -> pin connection is OK, the paired LED’s for the appropriate selection will be illuminated. Afailed connection status can be observed by taking note of non illumated pairs.
For single pin 1 to ->1 connections there are two (2) banana connections on the front panel permanently wired as a continuity tester with LED and beeper indicators. simply connect each end of your single pin cable to indicate operational status with an illunminated LED and status beep.
Features:
6-position rotary selector with individual LED's for up to five pins plus internal battery life check
Allows connection between different format connectors with ease.
Connections include:
- 2 x Speakon
- 2 x 1/4" (6.5mm) TRS/TS
- 2 x XLR
- 2 x RCA Phono
- 2 x BNC
- 2 x MIDI (5-pin DIN)
- 2 x DMX (5-pin)
- 2 x Banana
'Banana' connector continuity tester with beeper and LED indicator
Super rugged construction for durability and long life
The CT2 requires power for operation from a standard 9v battery for operation (battery not included). You can check battery performance by simply selecting the rotary selector fully clockwise to the ‘Battery Check’ position. If the LED indicator illuminates you battery has tested OK. If the LED fails to illumintate your battery is drained of power and requires replacement.
The basic operation guide for testing cables is to connect one end of your cable to the left hand side connector sockets of the CT2, and the other end of your cable to the right hand side of the CT2. Depending on how many pin to -> pin cable connections are housed within your currently connected cable, simply turn the rotary dial through each position and take note of the LED indicators status (on/off). If the selected pin to -> pin connection is OK, the paired LED’s for the appropriate selection will be illuminated. Afailed connection status can be observed by taking note of non illumated pairs.
For single pin 1 to ->1 connections there are two (2) banana connections on the front panel permanently wired as a continuity tester with LED and beeper indicators. simply connect each end of your single pin cable to indicate operational status with an illunminated LED and status beep.
CATALOG DESCRIPTION
Tests phono, XLR, TRS/TS, MIDI, DMX, banana, and BNC connectors@Individual LEDs for up to 5 pins
