SM Pro Audio EP84 8-Channel Microphone Preamp
8-pristine microphone preamps. Can send an additional 8 outputs with optional PR8IIA mod unit.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
- dbx 266XL Compressor
- $150
- Audio-Technica AT2020
- from $99
- Whirlwind MC20 Mic Cable
- from $10
ADDITIONAL VIEWS:

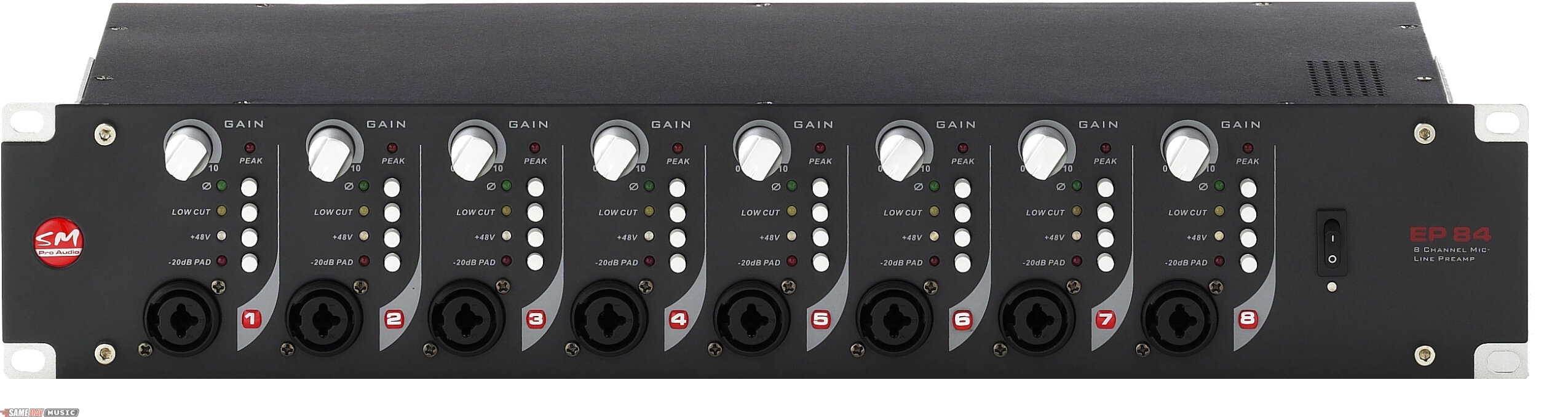

Main
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The EP84 is the latest multi-channel microphone preamplifier from SM Pro Audio. Packed with quality features and connectivity options, this sturdy 2RU rack-mountable unit is designed to provide studio users with 8 channels of pristine microphone preamplification. The EP84 is the perfect front end for computer audio systems, stand-alone hard disk recorders, or just about any other analog or digital workstation.
With all the functionality of a top line preamplifier, the EP84 features independent variable gain control, -20dB pad, phase reverse, low cut filters, 48v Phantom power, and insert points on each of the eight (8) channels.
Each mic-pre provides some 60dB of gain with a massive 23db of maximum output.
Eight (8) ADAT format channel outputs can be added to the EP84 via installation of the optional PR8IIA ADAT output module. With this simple user installed option, the EP84 integrates superbly into today’s digital studio environments without a hitch. Great for connection to the latest ADAT compatible audio interfaces, the EP84 expands your recording possibilities. Why not make use of the features you have and mic up the whole band!
*Note: The analog outputs (both +4dB XLR & -10 dB TS) and the digital ADAT ouput (when fitted with the PR8IIA output module) operate simultaneously.
With all the functionality of a top line preamplifier, the EP84 features independent variable gain control, -20dB pad, phase reverse, low cut filters, 48v Phantom power, and insert points on each of the eight (8) channels.
Each mic-pre provides some 60dB of gain with a massive 23db of maximum output.
Eight (8) ADAT format channel outputs can be added to the EP84 via installation of the optional PR8IIA ADAT output module. With this simple user installed option, the EP84 integrates superbly into today’s digital studio environments without a hitch. Great for connection to the latest ADAT compatible audio interfaces, the EP84 expands your recording possibilities. Why not make use of the features you have and mic up the whole band!
*Note: The analog outputs (both +4dB XLR & -10 dB TS) and the digital ADAT ouput (when fitted with the PR8IIA output module) operate simultaneously.
TECHNICAL DESCRIPTION
8 x discrete microphone preamplifiers
Mic In: Min sensitivity -60 dB
Modular PCB design
Mic In: Peak input level +9.5 dB
XLR and TRS inputs and outputs
Line In: Impedance 47K
Insert points per channel
Line In: Min sensitivity: -35dB
Ultra-Wide Dynamic Range
Line In: Peak input level: +32 dB
Low-Noise Operating Levels
Output: Impedance: 600 Ohms
Peak Light per channel
Peak output level:+23dB
48V Phantom Power per channel
Frequency response: 20Hz- 20KHz 0dB- -0.5dB
Phase reverse per channel
Distortion: 0.005%
-20dB Pad per channel
S/N: > 105dB
Gain control per channel
Crosstalk rejection: >120dB @1KHz; -20dB input
80 Hz Low cut filter per channel
Max Gain: 58dB
optional ADAT Module (PR8IIA)
Housing: Metal
Mic Ins: Impedance 47K Ohms
Mic In: Min sensitivity -60 dB
Modular PCB design
Mic In: Peak input level +9.5 dB
XLR and TRS inputs and outputs
Line In: Impedance 47K
Insert points per channel
Line In: Min sensitivity: -35dB
Ultra-Wide Dynamic Range
Line In: Peak input level: +32 dB
Low-Noise Operating Levels
Output: Impedance: 600 Ohms
Peak Light per channel
Peak output level:+23dB
48V Phantom Power per channel
Frequency response: 20Hz- 20KHz 0dB- -0.5dB
Phase reverse per channel
Distortion: 0.005%
-20dB Pad per channel
S/N: > 105dB
Gain control per channel
Crosstalk rejection: >120dB @1KHz; -20dB input
80 Hz Low cut filter per channel
Max Gain: 58dB
optional ADAT Module (PR8IIA)
Housing: Metal
Mic Ins: Impedance 47K Ohms
