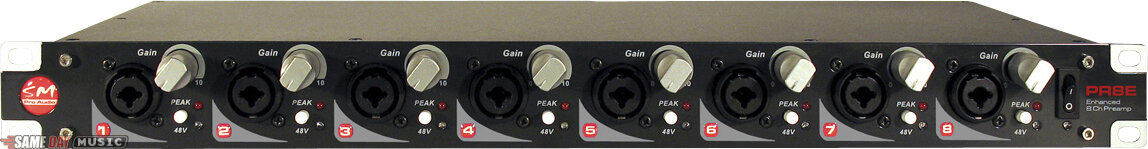

SM Pro Audio PR8E 8-Channel Microphone Preamp

The new PR8-E multi-channel mic/line preamp is the vanguard of the "next-generation" in the SMPRO range. Using the latest components available and redesigned from the ground up, the PR8-E's carefully structured single circuit board design results is an exceptionally low noise pre-amp boasting a very high gain structure.

Tailored to suit a wide variety of applications, the PR8E is perfectly suited for use as a front-end device for many hard disk recording systems, as well as adding additional mic pre's to digital mixers and sound cards.

Each pre-amp features it's own XLR/TRS jack "Combo" input connector, 48v phantom power switch for the mic-pre and a built-in -20dB pad in the 1/4 in. (6.5mm) TRS line-in jack sockets. Individual phase reversal switches are provided next to the eight balanced 1/4 in. (6.5mm) TRS output sockets on the rear panel. All this is housed inside a hardened steel chassis, complete with rack mounting panels.

Each mic-pre provides some 60dB of gain with a massive 23db of maximum output! Ultimately however, the quest is about sound quality. To this end, the PR8-E is certainly designed to deliver and will outperform just about any other device in it’s class.

Typical applications include:
- Expansion for multi-channel DAW's.
- Improved mic performance for many existing mixing consoles.
- Direct Injection for line-level devices, such as keyboards, drum machines and effects processors

Features:
8 x discrete microphone preamplifiers

Ultra-Wide Dynamic Range

Low-Noise Operating Levels

XLR/combo Inputs, TRS Outputs

48V Phantom Power per channel

Phase Reverse per channel

Gain control per channel

Peak Light Per channel

Same Day Music is an authorized dealer of SM Pro Audio products.

Mic Input:
Connector: XLR COMBO

Type: Balanced

Impedance: 4K7 Ohms

Min sensitivity: -60 dB

Peak input level: +9.5 dB

Phantom Power: +48V, (switchable)

Line Input:
Type: Balanced 1/4 in. on combo

Impedance: 47K

Min sensitivity: -35dB

Peak input level: +32 dB

Output:
Connector: 1/4 jack (balanced TRS)

Type: Balanced

Impedance: 600 Ohms

Peak output level:+23dB

Frequency response: 20Hz- 20KHz 0dB- -0.5dB

Distortion: 0.005%

S/N: > 105dB

Crosstalk rejection: >120dB @1KHz; -20dB input

Max Gain: 58dB
