Product Description

Featuring upgraded electronics and a sleek new look, the new SP microphone product line is the result of 5 years of research and development by Brent Casey, veteran microphone designer and Vice President of Engineering of Studio Projects. The new electronics allow for better signal to noise ratio, as well as greater dynamic range.

All C Series microphones (except the T3) now have -10dB and -20dB pads, and 75Hz and 150Hz high pass filters.

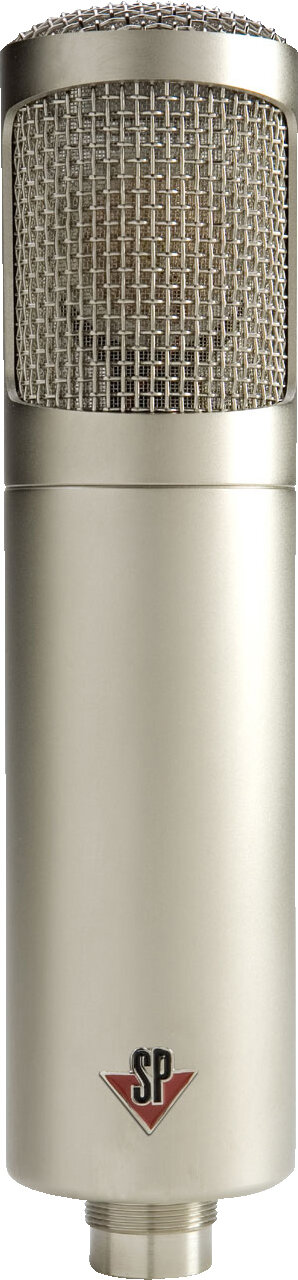

The Studio Projects C1 is a large diaphragm, fixed-cardioid condenser microphone employing a 1.06 in. (27mm) capsule, high quality, low noise amplifier and balanced, transformerless output circuitry. It features switchable -10dB and -20dB pads, and 75Hz and 150Hz high pass filters for added control in various recording applications and a clear, full response expected from a large capsule microphone design.

Versatility is key in the recording arena, and the Studio Projects C1 is a well-proven and award winning tool. It is designed to deliver the finest quality vocal and instrumental recordings and will serve to enhance any professional or project studio at an unbelievably low price. As a result of uncompromising dedication and advanced production capabilities, Studio Projects will continue to broaden the range of quality pro audio microphones & electronics for today's recording environment.

Features:
Pressure-Gradient Transducer: 1.06 in. (27mm) 6um mylar diaphragm

High Pass Filter

10db Pad

Applications:
Designed for the professional and home project studio

A do-all, general purpose recording Mic

Great for close miking amplifiers with high sound pressure levels

Production, broadcast, and voice-over work

A quality vocal mic suitable for most vocal styles

Included Accessories:
Shock mounted elastic suspension

Foam wind screen

Case

Technical Description

Type: Pressure gradient solid state condenser microphone

Polar Pattern: Cardioid

Frequency response: 20~20000Hz

Sensitivity: 14mV/Pa=-37dB(0dB=1V/Pa)

Output Impedance: <200 Ohm

Load Impedance: >1000 Ohm

Maximum SPL: 142dB SPL for 1% THD @1000Hz(0dB SPL=0.00002Pa)

Noise: (Line): 27dB (A weighted)---17dB

S/N: 77dB

Power Requirement: 48 +/- 4V

Current Consumption: <2.5mA

Circuit: Discrete FET balanced symmetrical output

Connector: Gold-plated 3-pin XLR

Size: dia: 2.1 in. length: 8.9 in.

Weight: 26.9oz

Catalog Description

Versatile large-diaphragm condenser@Cardioid polar pattern@High-pass filter and 10dB pad switches@Includes shockmount, windscreen, and case
