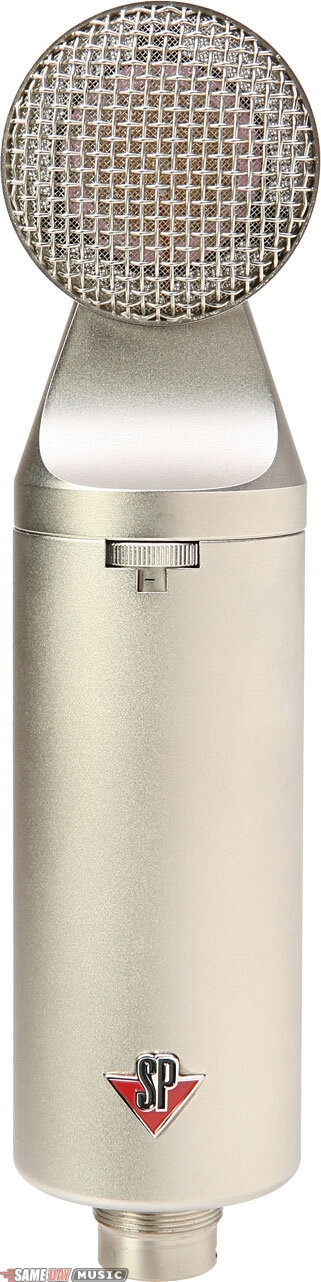

Studio Projects CS1 Large Diaphram Condenser Cardioid Bottle Microphone
Switchable dB pad and high pass filter. Transformerless output circuitry.
Personal use items that are used at your mouth or in your ear cannot be returned once opened due to health laws. This includes all microphones, guitar talk boxes, ear plugs, and in-ear earphones.
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
PRODUCT DESCRIPTION
The Studio Projects C1 is a large diaphragm, fixed-cardioid condenser microphone employing a 1.06 in. (27 mm) capsule, high quality, low noise amplifier and balanced, transformerless output circuitry. It features switchable -10dB or -20dB pad and 6dB@75Hz or 150Hz high pass filter for added control in various recording applications and a clear, full response expected from a large capsule microphone design.
Versatility is key in the recording arena, and the Studio Projects C1 is a well-proven and award winning tool. It is designed to deliver the finest quality vocal and instrumental recordings and will serve to enhance any professional or project studio at an unbelievably low price.
Features
Pressure-Gradient Transducer: 1.06 in. (27 mm) 6um mylar diaphragm
High Pass Filter, 6dB/octave@ 75Hz or 150Hz
-10dB, -20dB Pad
Applications
Close miking of instruments with high sound pressure levels
Announcer’s mic for broadcasting/dubbing
Home recording and project studios
Vocalist recording
Spot mic for: wind instruments, strings, percussion and guitar amps
Versatility is key in the recording arena, and the Studio Projects C1 is a well-proven and award winning tool. It is designed to deliver the finest quality vocal and instrumental recordings and will serve to enhance any professional or project studio at an unbelievably low price.
Features
Pressure-Gradient Transducer: 1.06 in. (27 mm) 6um mylar diaphragm
High Pass Filter, 6dB/octave@ 75Hz or 150Hz
-10dB, -20dB Pad
Applications
Close miking of instruments with high sound pressure levels
Announcer’s mic for broadcasting/dubbing
Home recording and project studios
Vocalist recording
Spot mic for: wind instruments, strings, percussion and guitar amps
TECHNICAL DESCRIPTION
Included Accessories
Shockmount
Foam wind screen
Case
CS1 Specifications
Type: Pressure gradient solid state condenser microphone
Polar pattern: Cardioid
Frequency response: 30-20,000Hz.
Sensitivity: 14mV/Pa=-37dB(0dB=1V/Pa).
Output impedance: <200 Ohm.
Load impedance: >1000 Ohm.
Maximum SPL: 131 dB SPL for 1% THD @1000Hz (0dB SPL=0.00002Pa).
Noise: (Line): 27dB (A weighted) 17dB.
S/N: 77dB.
Power requirement: 48 +/- 4V
Current consumption: <2.5mA
Circuit: JFET impedance converter, discrete balanced output
Connector: Gold-plated 3-pin XLR
Size: diameter 2.1 in. length 8.9 in.
Weight: 26.9 oz
Pad: -10dB, -20dB
Low cut: 6dB/Octave at 75 Hz or 150 Hz.
Shockmount
Foam wind screen
Case
CS1 Specifications
Type: Pressure gradient solid state condenser microphone
Polar pattern: Cardioid
Frequency response: 30-20,000Hz.
Sensitivity: 14mV/Pa=-37dB(0dB=1V/Pa).
Output impedance: <200 Ohm.
Load impedance: >1000 Ohm.
Maximum SPL: 131 dB SPL for 1% THD @1000Hz (0dB SPL=0.00002Pa).
Noise: (Line): 27dB (A weighted) 17dB.
S/N: 77dB.
Power requirement: 48 +/- 4V
Current consumption: <2.5mA
Circuit: JFET impedance converter, discrete balanced output
Connector: Gold-plated 3-pin XLR
Size: diameter 2.1 in. length 8.9 in.
Weight: 26.9 oz
Pad: -10dB, -20dB
Low cut: 6dB/Octave at 75 Hz or 150 Hz.
CATALOG DESCRIPTION
Versatile performance for a variety of sources@Cardioid@Switchable pad and high-pass filter@30 Hz - 20 kHz frequency response@Includes shockmount, windscreen, and case
