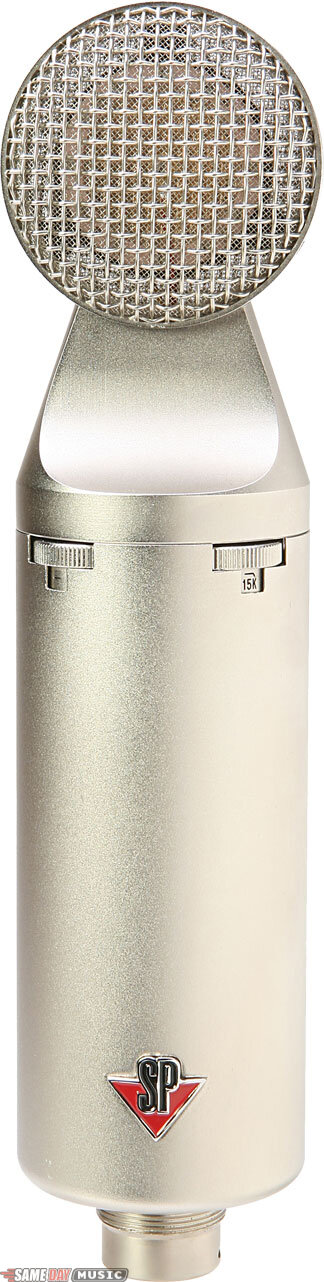

Studio Projects CS5 Large Diaphram Condenser Multi-Pattern Bottle Microphone
Five switchable patterns. Selectable pads and HP/LP filters. FET impedance converter.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
PRODUCT DESCRIPTION
The Studio Projects CS5 is an externally polarized five pattern pressure gradient transducer microphones with FET impedance converter. The capsule is a 1.06 in. (27mm) capsule, with a diaphragm thickness of 6um. It features five selectable polar patterns, four selectable pads, four high pass filters, and four low pass filters for added control in various recording applications and a clear, full response expected from a large capsule microphone design.
Versatility is key in the recording arena, and the Studio Projects CS5 is well equipped to handle any recording application. It is designed to deliver the finest quality vocal and instrumental recordings and will serve to enhance any professional or project studio.
As a result of uncompromising dedication and advanced production capabilities, Studio Projects continues to broaden the range of quality pro audio microphones & electronics for today's recording environment.
Features
Pressure-Gradient Transducer: 1.06 in. (27mm) 6um mylar diaphragm
FET impedance converter
Five Polar Patterns: Cardioid, Wide Cardioid, Hyper Cardioid, Omni, Fig 8
-5dB, -10dB, -15dB, and -20dB Pads
50Hz, 75Hz, 150Hz, and 300Hz High Pass Filters @ 6dB/octave
15kHz, 7kHz, 5kHz, and 3kHz, Low Pass Filters @ 6dB/octave
Applications
Close miking of instruments with high SPLs
Announcer’s mic for broadcasting/dubbing
Home recording and project studios
Vocalist recording
Spot mic for: wind instruments, strings, percussion and guitar amps
XY - Coincident Cardioids
Mid-Side Method
Stereosonic Technique (Blumlein)
Overheads
Versatility is key in the recording arena, and the Studio Projects CS5 is well equipped to handle any recording application. It is designed to deliver the finest quality vocal and instrumental recordings and will serve to enhance any professional or project studio.
As a result of uncompromising dedication and advanced production capabilities, Studio Projects continues to broaden the range of quality pro audio microphones & electronics for today's recording environment.
Features
Pressure-Gradient Transducer: 1.06 in. (27mm) 6um mylar diaphragm
FET impedance converter
Five Polar Patterns: Cardioid, Wide Cardioid, Hyper Cardioid, Omni, Fig 8
-5dB, -10dB, -15dB, and -20dB Pads
50Hz, 75Hz, 150Hz, and 300Hz High Pass Filters @ 6dB/octave
15kHz, 7kHz, 5kHz, and 3kHz, Low Pass Filters @ 6dB/octave
Applications
Close miking of instruments with high SPLs
Announcer’s mic for broadcasting/dubbing
Home recording and project studios
Vocalist recording
Spot mic for: wind instruments, strings, percussion and guitar amps
XY - Coincident Cardioids
Mid-Side Method
Stereosonic Technique (Blumlein)
Overheads
TECHNICAL DESCRIPTION
Included Accessories
Shockmount
Foam wind screen
Case
CS5 Specifications
Type: Pressure gradient transducer microphone
Polar patterns: Cardioid, wide-cardioid, hypercardioid, omni, and figure-8
Frequency response: 20~20,000Hz.
Sensitivity: 14mV/Pa=-32dB(0dB=1V/Pa)
Output impedance: 200 ohm
Load impedance: 1000 ohm
Maximum SPL: 136 dB SPL for 1% THD @1,000Hz (0dB SPL=0.00002Pa) 156dB with -20dB preattenuation
Equivalent Noise Level: 13dB-A
S/N: 81 dB-A
Power requirement: 48 +/- 4V.
Current consumption: 4mA
Circuit: JFET impedance converter, discrete balanced output.
Connector: Gold-plated 3-pin XLR
Size: dia. 2 in. (52mm) length 8.5 in. (215mm)
Pads: -5dB, -10dB, -15dB, and -20dB selectable
High Pass Filters: 50Hz, 75Hz, 150Hz, and 300Hz 6dB/Octave
Low Pass Filters: 15kHz, 7kHz, 5kHz, and 3kHz 6dB/Octave
Shockmount
Foam wind screen
Case
CS5 Specifications
Type: Pressure gradient transducer microphone
Polar patterns: Cardioid, wide-cardioid, hypercardioid, omni, and figure-8
Frequency response: 20~20,000Hz.
Sensitivity: 14mV/Pa=-32dB(0dB=1V/Pa)
Output impedance: 200 ohm
Load impedance: 1000 ohm
Maximum SPL: 136 dB SPL for 1% THD @1,000Hz (0dB SPL=0.00002Pa) 156dB with -20dB preattenuation
Equivalent Noise Level: 13dB-A
S/N: 81 dB-A
Power requirement: 48 +/- 4V.
Current consumption: 4mA
Circuit: JFET impedance converter, discrete balanced output.
Connector: Gold-plated 3-pin XLR
Size: dia. 2 in. (52mm) length 8.5 in. (215mm)
Pads: -5dB, -10dB, -15dB, and -20dB selectable
High Pass Filters: 50Hz, 75Hz, 150Hz, and 300Hz 6dB/Octave
Low Pass Filters: 15kHz, 7kHz, 5kHz, and 3kHz 6dB/Octave
