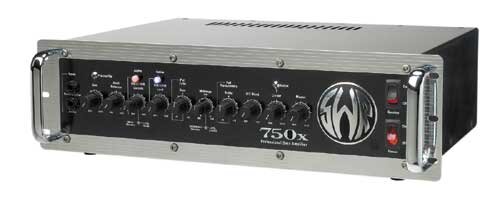

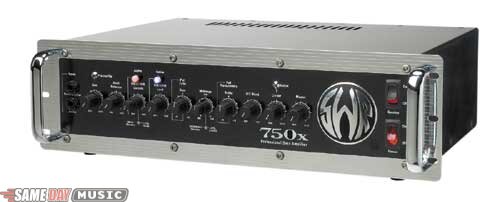

SWR 750X Pro Bass Amplifier Head, 750 Watts

Crushing volume, 2 killer effects, and pure SWR tone. The SWR 750x is the first upgrade to the highest-powered mono professional bass amplifier, the Bass 750. In addition to new chassis graphics--featuring the SWR logo badge in classic chrome--the 750x has inherited 2 popular effects circuits from the SWR Mo' Bass: SubWave (which produces a clean, pure and accurate octave effect) and Overdrive (which affects the pre-amp's 12AX7 tube to create overdrive that can be as subtle as a classic "flip top" or as nasty as a half stack).

Front Panel Features
Dual independent input jacks compatible for both active and passive instruments

Ultra-High-Polished Aluminum Front Panel

Gain control with LED peak clipping indicator

Variable Limiter

Overdrive (with Drive and Level controls)

Overdrive Illuminated on/off switch

Subwave (with Level control)

Subwave Illuminated on/off switch

Active Bass Control with pull Turbo Function

Active Treble Control with pull Transparency Function

Variable mid-range EQ

Exclusive Aural Enhancer Circuitry

Effects Blend Control

Master Volume Control

Rack mountable

Rack Handles

Speaker On/Off Switch

Power On/Off Switch

Aluminum chassis

Rear Panel Features
Sidechain Effects Loop

Stereo Headphone Jack

Balanced XLR Output with Pad

XLR Mode Switch (Direct, Line, or Direct + EFX)

Tuner Send

Preamp Output

Overdrive Footswitch Jack

Subwave Footswitch Jack

Two 1/4 in. Speaker Output Jacks

Two Speakon Output Jacks

Speaker fuse: 3AG, 10 Amp, Fast Blo

Line Fuse:
3AG, 10 Amp, Slow Blo (100 & 120 volt units)
3AG, 5 Amp, Slow Blo (240 volt units)

A/C Line Receptacle

Internal Features
All tube preamp gain stages

Cooling Fan

(1) 12AX7 Preamp Tube

Same Day Music is an authorized dealer of SWR products.

Power Bandwidth (Frequency Response): (@ 850 watts RMS) -3dB @ 20 Hz and 40 kHz

Dimensions (W x H x D): 19 x 5.38 x 15 in. (3 rack spaces)

Weight: 31 lbs.

Power Output
850 Watts @ 2.6 ohms
750 Watts @ 4 ohms
450 Watts @ 8 ohms
(minimum load = 2.6 ohms)

Same Day Music is an authorized dealer of SWR products.

Shipping Weights and Dimensions

Shipping Weight: 40 lbs

Shipping Dimensions: 24 x 20 x 10 in
