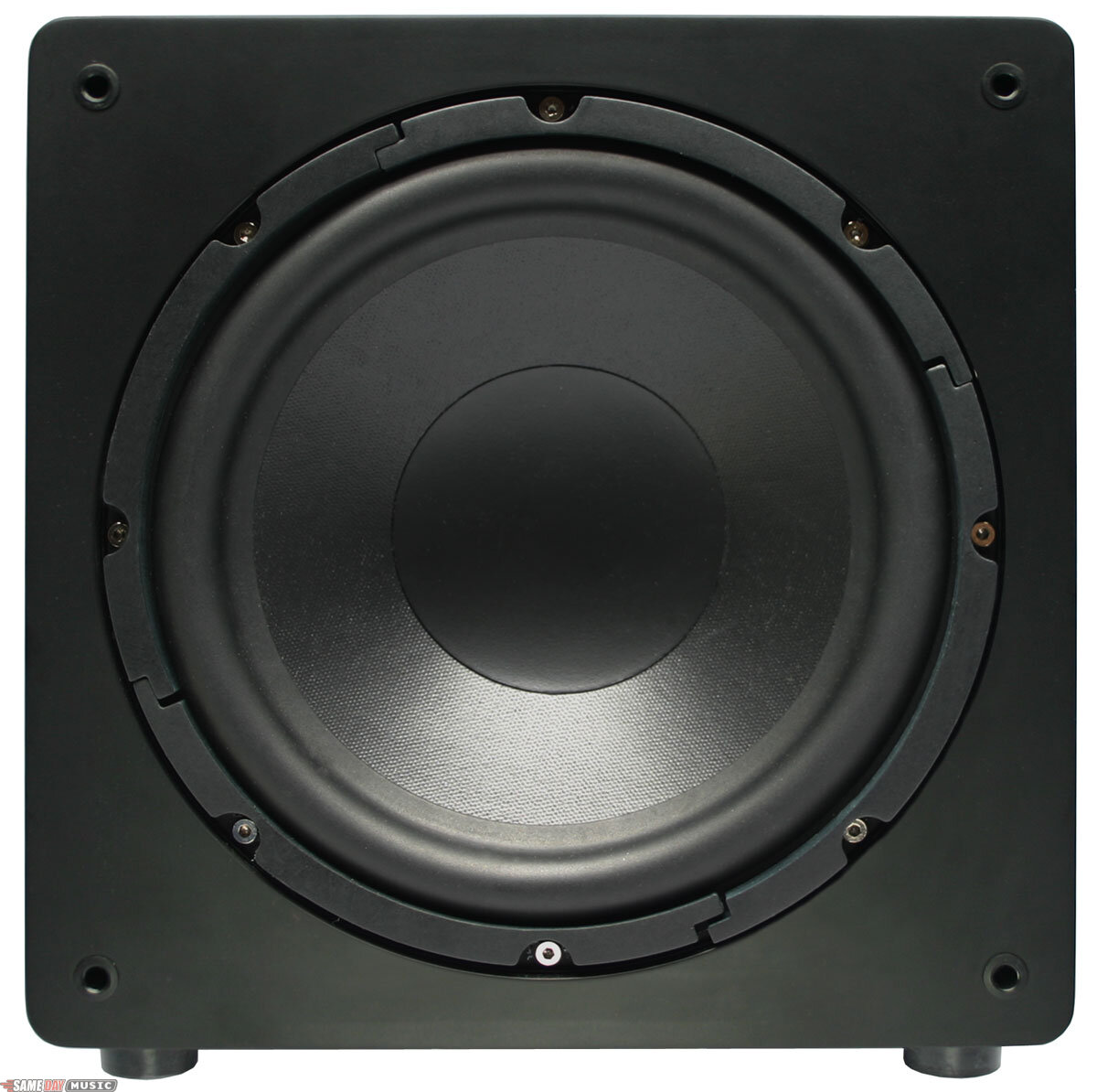

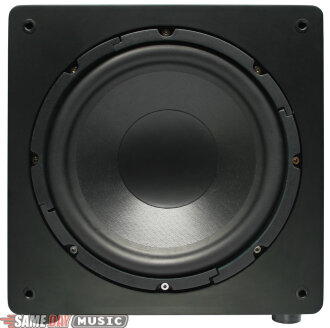

Tapco by Mackie SW10 Active Subwoofer (1x10 in.)
Flat frequency response, 10 in. high-precision woofer, 120-watt power amplifier
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
ADDITIONAL VIEWS:
Main
Rear
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The SW10 Active Studio Subwoofer joins the popular S5 and S8 monitors in TAPCO's active studio monitor lineup. Developed by the renowned Mackie studio monitor team, the SW10 outperforms anything in its class - both sonically and aesthetically. This versatile and compact "mini-sub" offers loud, punchy, and precise low-end down to 34 Hz. With its natural bass, full, powerful sound and superior frequency response, the SW10 is the perfect compact subwoofer to add low-down thump to your tracks.
Features
Flat frequency response (±3 dB, 34 Hz to 110 Hz)
10 in. high-precision woofer with dual-voice coil
120-watt power amplifier
High-strength cabinet constructed of 5/8" MDF composite
High-density adiabatic fiberfill absorbs internal reflections
Balanced XLR and unbalanced RCA input and high-pass output connectors
Individual left and right 24 dB/octave Linkwitz-Riley crossovers, adjustable from 55 Hz to 110 Hz
Rear panel power switch and AC voltage select
User-adjustable sensitivity control
Polarity Switch
Features
Flat frequency response (±3 dB, 34 Hz to 110 Hz)
10 in. high-precision woofer with dual-voice coil
120-watt power amplifier
High-strength cabinet constructed of 5/8" MDF composite
High-density adiabatic fiberfill absorbs internal reflections
Balanced XLR and unbalanced RCA input and high-pass output connectors
Individual left and right 24 dB/octave Linkwitz-Riley crossovers, adjustable from 55 Hz to 110 Hz
Rear panel power switch and AC voltage select
User-adjustable sensitivity control
Polarity Switch
TECHNICAL DESCRIPTION
Acoustic Performance
Free Field Frequency Response: 34 Hz - 110 Hz (±3 dB)
Lower Cutoff Frequency: -3 dB @ 34 Hz
Upper Cutoff Frequency: -3 dB @ 110 Hz
Maximum SPL @ 1 meter, 7.5 dBu into both Balanced Inputs: 103 dB SPL @ 1m
Transducer
Low Frequency Driver: 10 in/254 mm woofer with steel frame,dual voice coil, and paper cone
Amplifiers
Rated Power: 120 watts rms into a 4 ohm load (60 watts rms x 2)
Burst Power: 270 watts rms into a 4 ohm load (135 watts rms x 2)
Slew Rate: > 15 V/µs
Distortion (THD, SMPTE IMD, DIM 100): < 0.03%
Signal-to-Noise Ratio:
> 110 dB, 20 Hz to 20 kHz, A-weighted, referenced to 60 watts into 4 ohms
Type: Monolithic IC, Class AB
Electronic Crossover
Crossover Type: 24 dB/octave Linkwitz-Riley
Crossover Frequency: Variable, 55 Hz to 110 Hz
Input Impedance: 20 kΩ, balanced bridging; 10 kΩ unbalanced
AC Power Requirements
US: 120 VAC, 60 Hz
AC Connector: 2-pin IEC 250 VAC, 16 A male
Fuse: 115 VAC: T 1.6 A/250 V
, 230 VAC: T 800 mA/250 V
Power Consumption: 80 watts with music, loud mix
20 watts quiescent (idle)
Physical Dimensions and Weight
Enclosure: 0.625 in/16 mm thick MDF
Damping: Adiabatic fiberfill
Dimensions (H x W x D): 12.3 (with feet) x 12.0 x 12.4 in (312 x 295 x 315 mm)
Weight: 28 lb/12.7 kg
Free Field Frequency Response: 34 Hz - 110 Hz (±3 dB)
Lower Cutoff Frequency: -3 dB @ 34 Hz
Upper Cutoff Frequency: -3 dB @ 110 Hz
Maximum SPL @ 1 meter, 7.5 dBu into both Balanced Inputs: 103 dB SPL @ 1m
Transducer
Low Frequency Driver: 10 in/254 mm woofer with steel frame,dual voice coil, and paper cone
Amplifiers
Rated Power: 120 watts rms into a 4 ohm load (60 watts rms x 2)
Burst Power: 270 watts rms into a 4 ohm load (135 watts rms x 2)
Slew Rate: > 15 V/µs
Distortion (THD, SMPTE IMD, DIM 100): < 0.03%
Signal-to-Noise Ratio:
> 110 dB, 20 Hz to 20 kHz, A-weighted, referenced to 60 watts into 4 ohms
Type: Monolithic IC, Class AB
Electronic Crossover
Crossover Type: 24 dB/octave Linkwitz-Riley
Crossover Frequency: Variable, 55 Hz to 110 Hz
Input Impedance: 20 kΩ, balanced bridging; 10 kΩ unbalanced
AC Power Requirements
US: 120 VAC, 60 Hz
AC Connector: 2-pin IEC 250 VAC, 16 A male
Fuse: 115 VAC: T 1.6 A/250 V
, 230 VAC: T 800 mA/250 V
Power Consumption: 80 watts with music, loud mix
20 watts quiescent (idle)
Physical Dimensions and Weight
Enclosure: 0.625 in/16 mm thick MDF
Damping: Adiabatic fiberfill
Dimensions (H x W x D): 12.3 (with feet) x 12.0 x 12.4 in (312 x 295 x 315 mm)
Weight: 28 lb/12.7 kg
