Tascam CDBT2 Portable CD Bass Trainer
All new improved ultra compact design! CD-DA/CD-R/CD-RW disc playback.
- LIMITED TIME OFFER
- Summer of Savings with Tascam! Buy a new CDBT2 and get $25 back via mail-in rebate, from 07/01/08 to 08/31/08. See PDF Offer for full details.
60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!
We DO NOT COLLECT TAX except on orders shipped to New Jersey.
RECOMMENDED ACCESSORIES:
ADDITIONAL VIEWS:

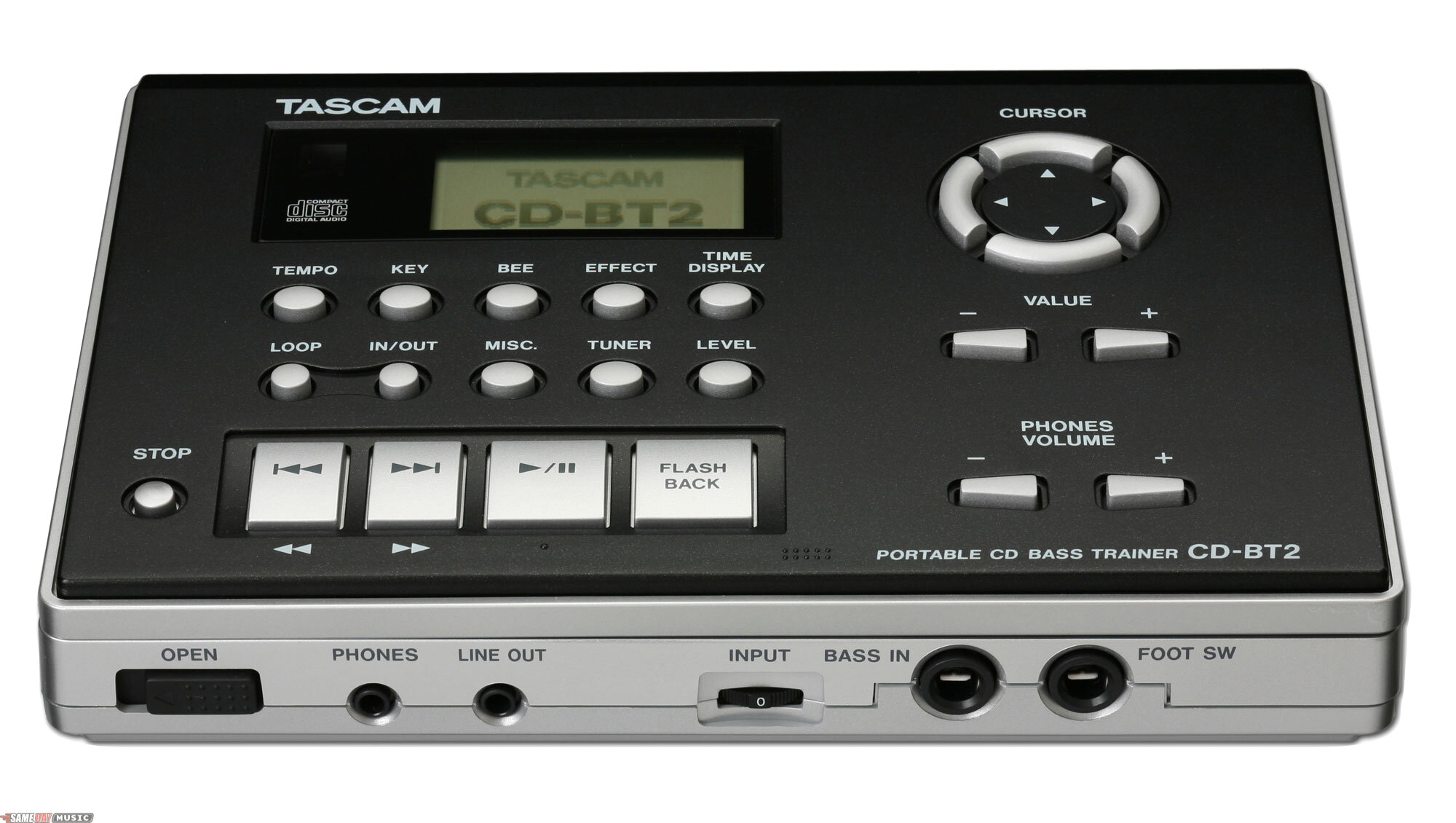

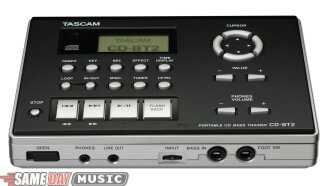

Main
Angle Shot 1
Angle Shot 2
with CD Lid Open
Top
FIND SIMILAR PRODUCTS:
PRODUCT DESCRIPTION
The new CD-BT2, is the latest introduction in the portable CD trainer line by TASCAM. Like the wildly-popular original CD-BT1 bass trainer, musicians have the ability to slow down the speed of a CD without changing the pitch - allowing artists, musicians, students, and music teachers to practice, learn and teach fast licks, rhythm parts and solos from their favorite bass players. With its ultra-compact design and new functionality, the new CD-BT2 trainer from TASCAM is the most user-friendly trainer ever. The new CD-BT2 bass trainer completes our all-new lineup of trainers for the musician, student, teacher and artist on the go.
The new CD-BT2 bass trainer features an all new improved ultra compact design, comprehensive LCD display with graphical user interface, Album title/Track title indication by CD-Text, expanded effect banks for user preset, chromatic tuner, and TASCAM'S pioneering VSA (Variable Speed Audition, pitch control without affecting key) feature lets music fans learn up a continuous mix of their favorite songs anywhere they go.
With TASCAM'S legendary ease of use, pioneering features such as integrated pitch and key control, bass canceller with selectable canceling pan point and selectable frequency range, and seamless integration with CD-DA/CD-R/CD-RW disc playback. Users can now discover the licks their favorite artist really played.
The new CD-BT2 bass trainer features an all new improved ultra compact design, comprehensive LCD display with graphical user interface, Album title/Track title indication by CD-Text, expanded effect banks for user preset, chromatic tuner, and TASCAM'S pioneering VSA (Variable Speed Audition, pitch control without affecting key) feature lets music fans learn up a continuous mix of their favorite songs anywhere they go.
With TASCAM'S legendary ease of use, pioneering features such as integrated pitch and key control, bass canceller with selectable canceling pan point and selectable frequency range, and seamless integration with CD-DA/CD-R/CD-RW disc playback. Users can now discover the licks their favorite artist really played.
TECHNICAL DESCRIPTION
Portable CD bass trainer (More compact than previous CD-BT1MKII)
CD-DA/CD-R/CD-RW disc playback
10 second anti-shock memory
Comprehensive 128 x 64 dot matrix LCD display with graphical user interface
Album title/Track title indication by CD-Text
Elapsed Time/Remain Time display with bar meter
+16 to -50% pitch control in 1% steps
VSA (Variable Speed Audition, pitch control without affecting key)
Key control: +/-6 semi-tone, in semi-tone steps with +/-50 cents fine tune
Single play and continuous play
Single Loop, All Loop, and Seamless IN-OUT Loop
Flash Back function (Instant review up to 5 seconds prior playback)
Bass Canceller with selectable canceling pan point and selectable frequency range
10 effect banks for user preset
Chromatic tuner with calibration (435 to 445Hz)
3 octaves tone oscillator
Metronome (BPM: 40 to 220, Beat: 2 to 6)
1/4 in. Bass input
Bass/Mic input volume
Bass/Mic input level meter indicator on LCD display
CD level meter indicator
Foot switch connector
5 selectable functions by foot switch (Flash Back, Rewind, FF, Bank, Effect on/off)
1/8 in. stereo line output
1/8 in. stereo headphone output
Headphone volume
MONO monitor for CD (L+R, L, R)
Split monitor (Left ch: CD, Right ch: Input or vice versa)
Battery operation
* Optional power supply PS-P520
Specifications
Disc Type: 8cm and 12cm CD
Line Output Connector: 1/8 in. Stereo mini connector
Nominal Stereo Output Level: -10dBV
Output Impedance: 600ohm (2V RMS)
Maximum Output Level (LINE OUT): +6dBV
Headphone Output Connector: 1/8 in. Stereo mini connector
Maximum Output Level (PHONES): 15mW (at 32ohm loaded)
Bass/Mic Input Connector: 1/4 in. Phone Connector
Nominal Input Level
Bass Input: -15dBV
Mic Input: -40dBV
Maximum Input Level
Bass Input: +6dBV
Mic Input: -19dBV
Frequency Response: 20 Hz to 20 kHz (-3/+1dB)
(A weight filter + 20KHz LPF)
Signal to Noise Ratio: Better than 85 dB
Total Harmonic Distortion: < 0.03% (200Hz HPF + 20KHzLPF)
Channel Separation: Better than 80dB
(A weight filter + 20KHz LPF)
Power Requirements: DC 9V (Optional AC adapter PS-P520)
AA batteries x 4
Power Consumption: 4W (with PS-P520)
Dimensions (WxHxD): 194 x 38.7 x 138(mm)
Weight (excluding batteries): 550g
CD-DA/CD-R/CD-RW disc playback
10 second anti-shock memory
Comprehensive 128 x 64 dot matrix LCD display with graphical user interface
Album title/Track title indication by CD-Text
Elapsed Time/Remain Time display with bar meter
+16 to -50% pitch control in 1% steps
VSA (Variable Speed Audition, pitch control without affecting key)
Key control: +/-6 semi-tone, in semi-tone steps with +/-50 cents fine tune
Single play and continuous play
Single Loop, All Loop, and Seamless IN-OUT Loop
Flash Back function (Instant review up to 5 seconds prior playback)
Bass Canceller with selectable canceling pan point and selectable frequency range
10 effect banks for user preset
Chromatic tuner with calibration (435 to 445Hz)
3 octaves tone oscillator
Metronome (BPM: 40 to 220, Beat: 2 to 6)
1/4 in. Bass input
Bass/Mic input volume
Bass/Mic input level meter indicator on LCD display
CD level meter indicator
Foot switch connector
5 selectable functions by foot switch (Flash Back, Rewind, FF, Bank, Effect on/off)
1/8 in. stereo line output
1/8 in. stereo headphone output
Headphone volume
MONO monitor for CD (L+R, L, R)
Split monitor (Left ch: CD, Right ch: Input or vice versa)
Battery operation
* Optional power supply PS-P520
Specifications
Disc Type: 8cm and 12cm CD
Line Output Connector: 1/8 in. Stereo mini connector
Nominal Stereo Output Level: -10dBV
Output Impedance: 600ohm (2V RMS)
Maximum Output Level (LINE OUT): +6dBV
Headphone Output Connector: 1/8 in. Stereo mini connector
Maximum Output Level (PHONES): 15mW (at 32ohm loaded)
Bass/Mic Input Connector: 1/4 in. Phone Connector
Nominal Input Level
Bass Input: -15dBV
Mic Input: -40dBV
Maximum Input Level
Bass Input: +6dBV
Mic Input: -19dBV
Frequency Response: 20 Hz to 20 kHz (-3/+1dB)
(A weight filter + 20KHz LPF)
Signal to Noise Ratio: Better than 85 dB
Total Harmonic Distortion: < 0.03% (200Hz HPF + 20KHzLPF)
Channel Separation: Better than 80dB
(A weight filter + 20KHz LPF)
Power Requirements: DC 9V (Optional AC adapter PS-P520)
AA batteries x 4
Power Consumption: 4W (with PS-P520)
Dimensions (WxHxD): 194 x 38.7 x 138(mm)
Weight (excluding batteries): 550g
CATALOG DESCRIPTION
New compact design@Plays CD-DA/CD-R/CD-RW discs@10-second anti-shock memory@Change speed without altering pitch@Bass canceller
REVIEWS
