Product Description

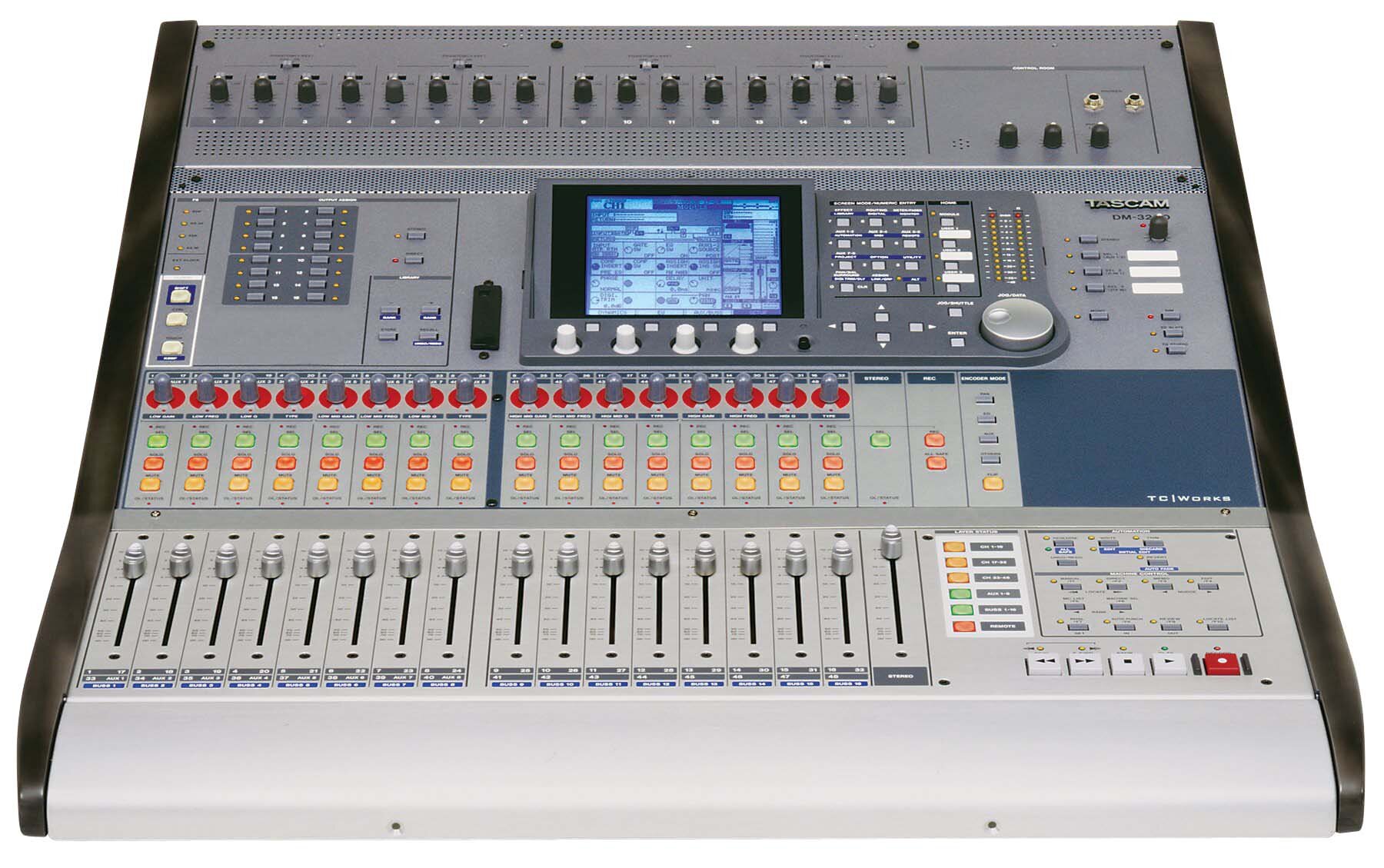

More channels. More inputs. The new TASCAM DM-3200 has more of everything that made the DM-24 a pedigreed studio workhorse. Plus an improved physical interface with per-channel multi-function LED ring encoders, more comprehensive DAW control, vastly improved routing flexibility, easier and robust data backup/ restore, greatly expanded mix storage using compact flash media and much more.

The DM-3200 is a 32-channel digital mixing console, even at its full 96kHz / 24-bit audio resolution. It features 48 inputs at mixdown, 4-band fully-parametric EQ and dynamics on every channel, and four effects processors. It mixes in surround, panning up to 6.1 output channels, and the optional IF-SM/DM expansion card adds surround monitoring and downmixing to the DM-3200. An additional expansion card, the IF-FW/DM FireWire card, turns the console into a 24-channel computer audio interface, making it a complete studio solution for professional DAW recording.

32 channels and 16 auxiliary returns for 48 total inputs

16 busses

8 Aux Sends

16 analog mic/line inputs with phantom power for condenser mics and analog inserts

24 channels of TDIF and 8 channels of ADAT built in

2 expansion card slots support optional FireWire, ADAT, AES/EBU, Analog & TDIF cards

Dedicated cascade port supports cascade of two DM-3200s

Per channel LED ring encoders for pan, aux sends and EQ

Built-in DAW control

All inputs, effects and processing are available at 96k -- no features are sacrificed at full sampling rate

Transport controls

Powerful automation with touch-sensitive motorized faders

EQ and compression on each channel

Two built-in effects processors at 44.1/48k or 88.2/96k

Flexible routing

Offload data to convenient Compact Flash media using built-in CF slot

Optional MU-1000 meter bridge

Stylish, professional design with rear panel I/O connections

TASCAM Mixer Companion software (Win XP/OSX) with:

Driverless USB connection to computer

Backup/restore data via USB

On screen timecode, transport and meter displays

Technical Description

(16) XLR analog mic/line inputs with phantom power for condenser mics

(16) 1/4 in. TRS Analog Inserts

(16) Balanced 1/4 in. TRS line inputs

(3x) 8-channel TDIF digital inputs and outputs

8-channel ADAT optical digital input and output

2 expansion card slots support optional FireWire, ADAT, AES/EBU, Analog & TDIF cards (listed below)

(2) Stereo AES/EBU digital inputs on XLR connectors

(2) Stereo S/PDIF digital inputs on coaxial connectors

(2) Stereo AES/EBU digital outputs on XLR connectors

(2) Stereo S/PDIF digital outputs on coaxial connectors

Stereo XLR balanced line outputs

1/4 in. Stereo TRS balanced Monitor outputs

Stereo RCA Studio outputs

Stereo RCA 2-Track input

(4) 1/4 in. TRS balanced Assignable Insert sends

(4) 1/4 in. TRS balanced Assignable Insert returns

RCA Timecode Input

MIDI In, Out and Thru connectors

BNC Word Sync Input and Out/Thru with termination

GPI output for replay control

RS-422 connector for device control

USB 1.1 connector

1/4 in. Footswitch jack

Dedicated cascade port supports cascade of two DM-3200 mixers

Connector for (optional) MU-1000 24-channel meter bridge

Catalog Description

Powerhouse 24-bit, 96kHz digital mixer sports@32 channels with 4-band parametric EQ and compression@16 aux returns; 48 channels at mixdown@16 mic pres w/ phantom power and inserts@16 touch-sensitive, motorized faders@2 effects processors@USB and CompactFlash backup
