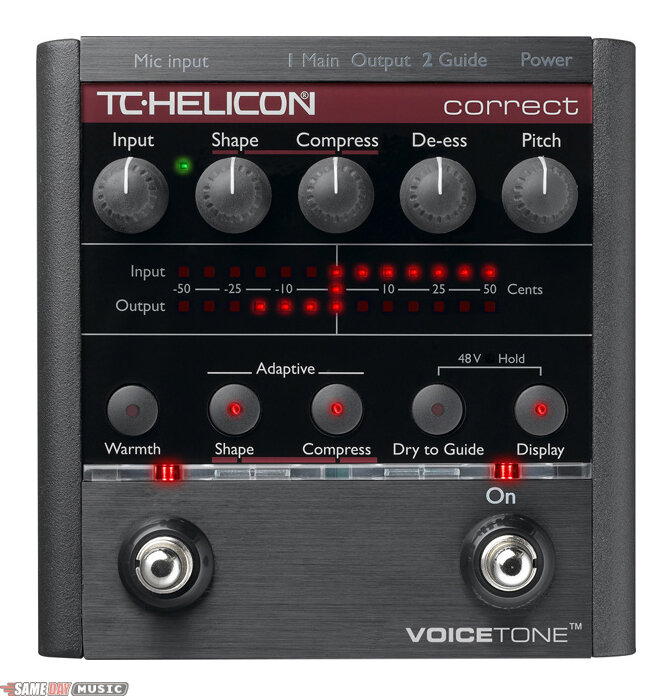

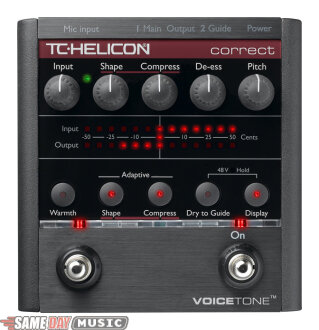

Product Description

The nicest and most simpatico sound engineer you will ever meet is inside VoiceTone Correct. It combines pitch correction with tone and dynamic shaping that put a recorded gloss on live singing. Sensing algorithms developed at TC-Helicon automatically adjust the recording industry techniques of multiband EQ, compression and de-essing for you, so you get the best sound with the least amount of effort.

Partner your new sound with auto-chromatic pitch correction which helps you sing more in tune, much like a metronome helps for playing in time. The miniaturization of sound engineers and vocal coaches was a challenge, but the results will surely impress you and your audience!

Features
Auto-chromatic pitch correction improves your pitch

Adjustable auto-smooth compression

Multiband auto-shape EQ dynamically sweetens raw mic sound

Sibilance-smoothing de-ess algorithm

Add rich lows on deep voices with the Warmth button

Accurate input pitch and correction display

XLR mic level I/O: Correction can go to monitors, mains or both

Clean, studio quality mic preamp with phantom power

Technical Description

Analog Inputs
Connectors: Balanced XLR
Input Impedance: 1 kOhm
Mic Input Sensitivity @ 0 dBFS: -44 dBu to +2 dBu
Mic Input Sensitivity @ 12 dB headroom: -56 dBu to -10 dBu
EIN: -128 dBu @ max. mic amp gain, Rg = 150 Ohm

Analog Outputs
Connectors: Balanced XLR
Output Impedance: 40 Ohm
Output Level @ 0dBFS: +2dBu

Input to Output Analog Audio Performance
Dynamic Range, Mic. @ Min gain: >108 dB, 20 Hz - 20 kHz (A-weighted)
Dynamic Range, Mic. @ -18dBu sensitivity: > 104dB, 20hz – 20kHz (A-weighted)
THD+ Noise, Mic. @ Min gain: <-90dB
Frequency Response, max gain: -1.5 dB @ 40 Hz, +0/-0.3 dB (200 Hz to 20 kHz)

Conversion Characteristics
Sample Rate: 48 kHz
Converter: AKM AK4620B
A to D / D to A Conversion: 24 bit, 128x oversampling bitstream
A to D Delay: 0.65 ms
D to A Delay: 0.63 ms
EMC Complies with: EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B

Safety
Certified to: IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093

Environment
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Storage Temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: Max. 90 % non-condensing

Supplementary
Dimensions (WxHxD): 130 x 41 x 132 mm (5 x 1.5 x 5.25 in.)
Weight: 1.5 lb. (0.72 kg)
Warranty Parts and labor: 1 year

Catalog Description

Powerful processing for cleaner vocals@Automatic pitch correction@Adjustable compression@Auto-shape EQ@Send correction to mains, monitors, or both

Product Rated 8.6 Out of 10 (7 ratings)

Read 2 TC Helicon VoiceTone Correct Vocal Effects Pedal Full Reviews >>

• "Fantastic product. Thanks TC Helicon for making a user friendly device that works at a resonable price." - Read More
• "This unit is AWESOME!" - Read More
