Product Description

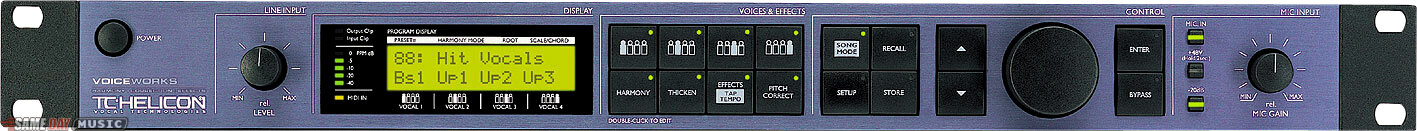

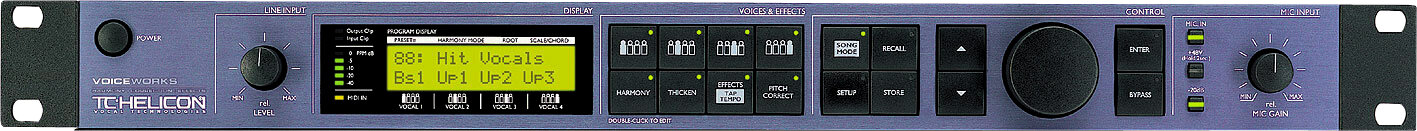

TC Helicon VoiceWorks Harmony FX Voice Processor
VoiceWorks has multi-voice harmonies, transparent pitch correction and fat automatic double-tracking, all so realistic you can solo them with confidence. VoiceWorks includes superb TC Electronic effects and the new HarmonyHold (tm), which lets you freeze your backing harmonies while you sing over them. For live performance, Song Mode allows you to save internal 'sequences' of up to 50 songs with 30 user presets per song. Add TC Helicon's quality mic preamp (w/48V phantom) and TC Electronic Compression, EQ, Tap-Tempo Delay and Reverbs and you have an amazing vocal channel with 100 user presets at your fingertips.

Features:
HybridShift (tm) harmony generation for smooth, natural sound

4 independent harmony voices, 4 distinct harmony Modes: Scale, Chord, Shift and MIDI Notes

2 Lead-voice Thickening Voices - one voice above and one voice below

Humanization of harmony voices utilizing: FlexTime(tm), Vibrato, Inflection, Pitch randomization, Portamento

Selectable Equal-tempered and Just tuning for harmonies

HarmonyHold (tm)

Scale-based Pitch Correction for studio and live performance

Fully adjustable Gender and Voicing per voice

High Quality Mic Preamp with 48V phantom power

TC Electronic 3-band EQ plus low cut

TC Electronic Compressor/Gate

TC Electronic Reverb/Tap-tempo Delay

Song Mode for live performance allows you to save internal 'sequences' of up to 50 songs with 30 user presets per song

MIDI CC control over all parameters

Optional Accessory: TC Electronic G-Switch 3-Button Footswitch

Technical Description

Digital Inputs and Outputs
Connectors: RCA Phono (S/PDIF)
Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
Sample Rates: 44.1 kHz, 48 kHz
Frequency Response: DIO DC to 22/23.9 kHz ± 0.01 dB @ 44.1/48 kHz

Analog Inputs
Connectors, balanced: Mic.: XLR, Line: 1/4 in. phone jack
Impedance:
Bal./Unbal: Mic.: 3.6/1.8 kOhm, Line: 21/13 kOhm
Line Input Level @ 0 dBFS: +24 dBu to +0 dBu
Line Sensitivity @ 12 dB headroom: -12 dBu to +12 dBu
Mic. Input Level @ 0 dBFS (Pad Off/On): -14 dBu/+6 dBu to -51 dBu/-31 dBu
Mic. Sensitivity @ 12 dB headroom (Pad Off/On): -26 dBu/-6 dBu to -63 dBu/-43 dBu
Line, Mic. @ Min gain, Dynamic Range: > +92 dB, 20 Hz to 20 kHz
NF/Vi @ Max. micamp. gain, Rg = 200 Ohm: < +2 dB / -127.4 dBu
THD: < -100 dB (0,001 %) @ 1 kHz
Line Frequency Response: +0/-0.1 dB, 20 Hz to 20 kHz
Mic. Frequency Response, max gain: -1.5 dB @ 40 Hz, +0/-0.1 dB (200 Hz to 20 kHz)
Crosstalk: < -85 dB, 20 Hz to 20 kHz
A to D Conversion: 24 bit, 128 x oversampling bitstream
A to D Delay 0.65/0.70 ms @ 48/44.1 kHz

Analog Outputs
D to A Conversion: 24 bit, 128 x oversampling bitstream
D to A Delay: 0.63/0.68 ms @ 48/44.1 kHz
Connectors, balanced: 1/4 in. phone jack
Output Impedance: 40 Ohm
Max. Output Level
Bal./Unbal.: +20 dBu/+14 dBu, R-load >= 1200 Ohm
Output Range: Variable up to +20 dBu
Dynamic Range: > +104 dB, 20 Hz to 20 kHz
THD: <-98 dB (0.0013 %) @ 1 kHz
Frequency Response: 20 Hz to 20 kHz, +0/-0.3 dB
Crosstalk: <-100 dB, 20 Hz to 20 kHz
EMC
Complies with IEN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B
Safety
Certified to IEC 65, EN 60065, UL6500 and CSA E60065 CSA FILE #LR108093

Environment
Operating Temperature: 32° F to 122° F (0° C to 50° C)
Storage Temperature: -22° F to 167° F (-30° C to 70° C)
Humidity: Max. 90 % non-condensing

Control Interface
MIDI: In/Out/Thru: 5 Pin DIN
Pedal: 1/4 in. phone jack

Supplementary
Display: 2x16 backlit LCD

Dimensions: 19 in. x 1.75 in. x 8.2 in. (483 x 44 x 195 mm)

Weight: 4.1 lb. (1.85 kg)

Mains Voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)

Power Consumption: <15 W

Warranty: Parts and labor 1 year

Note: Due to continuous development and standardization all specifications are subject to change without notice.

Catalog Description

Pitch correction, double-tracking, and multiple harmonies in one unit@Smooth, natural harmony generation@Scale-based pitch correction@Mic preamp with phantom@Reverb, tap-tempo delay, plus compression and EQ@XLR and TRS inputs; TRS stereo outputs; S/PDIF and MIDI I/O
