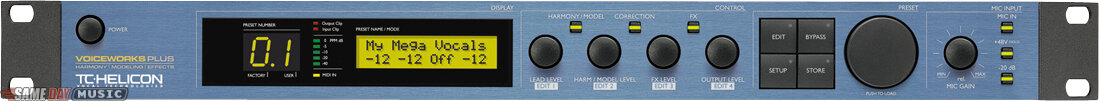

TC-Helicon VoiceWorks Plus Rackmount Vocal Processor

VoiceWorksPlus has all of the features you need to make your vocals shine brighter. It continues on from the success of its predecessor, VoiceWorks, with an updated feature list including 4th generation TC-Helicon harmony technology, Voice Modeling(TM), and the Transducer and Micro-Mod blocks from VoicePro.

The quiet Burr Brown-based mic preamp, transparent pitch correction, TC Electronic reverb, delay and dynamics algorithms from VoiceWorks round out its capabilities. Whether you're playing live gigs with a MIDI sequencer for backup or recording songs in your studio, VoiceWorksPlus offers high quality vocal processing options and advancements allowing you to realize the perfect vocal sound you're looking for.

Features:
Interchangeable voice modeling or harmony

Advanced harmony humanization and control

Individually-adjustable harmony voice gender

Megaphone effects with high Q band limiting

Distortion

Chorus

Microtuning

Flange with pitch feedback

Pitch correction

Reverb

Delay with tap tempo

Compressor

De-Ess

3-band EQ

Gate

Footswitch or volume pedal control

Burr Brown mic preamp with phantom power for condenser mics

Stereo or mono output

Optional Accessory: TC Electronic G-Switch 3-Button Footswitch

Same Day Music is an authorized dealer of TC Electronic and TC-Helicon products.

Digital Inputs and Outputs
- Connectors: RCA phono (S/PDIF)
- Formats: S/PDIF (24 bit), EIAJ CP-340, IEC 958
- Sample rates: 44.1 kHz, 48 kHz
- Frequency response DIO: DC to 22/23.9 kHz +/- 0.01 dB @ 44.1/48 kHz
- Connectors, balanced: Mic.: XLR, line: 1/4 in. phone jack

Impedance:
- Balanced/unbalanced: Mic.: 3.6/1.8 kOhm, Line: 21/13 kOhm
- Line input level @ 0 dBFS: +24 dBu to +0 dBu
- Line sensitivity @ 12 dB headroom: -12 dBu to +12 dBu
- Mic. in high sens @ 0 dBFS: Pad off/on 24 dBu/-4 dBu to -61 dBu/-41 dBu
- Mic. in norm sens @ 0 dBFS: Pad off/on -14 dBu/6 dBu to -51 dBu/-31 dBu
- Mic. in low sens @ 0 dBFS: Pad off/on -2 dBu/18 dBu to -39 dBu/-19dBu
- Line, mic. @ min gain, dynamic range: > +92 dB, 20 Hz - 20 kHz
NF/Vi @ max. micamp. gain,
- Rg = 200 ohm: < +2 dB / -127.4 dBu
- THD: < -100 dB (0,001 %) @ 1 kHz
- Line frequency response: +0/-0.1 dB, 20 Hz to 20 kHz
- Mic. frequency response, max gain: -1.5 dB @ 40 Hz, +0/-0.1 dB (200 Hz to 20 kHz)
- Crosstalk: < -85 dB, 20 Hz to 20 kHz
- A to D conversion: 24 bit, 128 x oversampling bitstream
- A to D delay: 0.65/0.70 ms @ S.R. = 48/44.1 kHz
- D to A conversion: 24 bit, 128 x oversampling bitstream
- D to A delay: 0.63/0.68 ms @ S.R. = 48/44.1 kHz
- Connectors, balanced: 1/4 in. TRS phone jack
- Output impedance: 40 ohm
- Balanced/unbalanced: 20 dBu/14 dBu, R-load = 1200 ohm
- Output range: variable up to +20 dBu
- Dynamic range: > +104 dB, 20 Hz to 20 kHz
- THD: <-98 dB (0.0013 %) @ 1 kHz
- Frequency response: 20 Hz to 20 kHz, +0/-0.3 dB
- Crosstalk: <-100 dB, 20 Hz to 20 kHz
- Complies with: IEN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B

Control Interface
- MIDI: In/out/thru: 5 pin DIN
- Pedal: 1/4 in. phone jack

Supplementary
- Display: 16x 2 character LCD display
- Dimensions: 19 in. x 1.75 in. x 8.2 in. (483 x 44 x 195 mm)
- Weight: 4.1 lb. (1.85 kg)
- Mains voltage: 100 to 240 VAC, 50 to 60 Hz (auto-select)
- Power consumption: <15 W
- Warranty parts and labor: 1 year

Same Day Music is an authorized dealer of TC Electronic and TC-Helicon products.

Shipping Weights and Dimensions

Shipping Weight: 7 lbs

Shipping Dimensions: 22 x 11 x 5 in

All-in-one vocal processor@Voice modeling@Latest-generation harmony technology@Scale-based pitch correction@Mic preamp with Burr Brown chip and phantom power@Reverb, tap-tempo delay, plus compression and EQ@XLR and TRS inputs; TRS stereo outputs; S/PDIF and MIDI I/O
