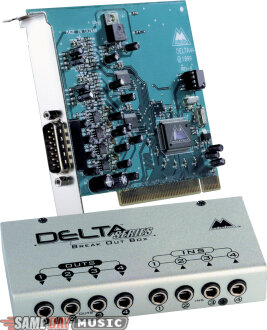

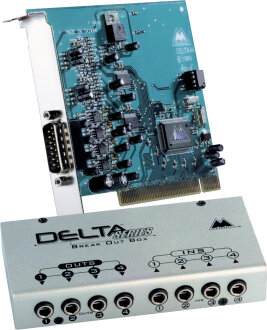

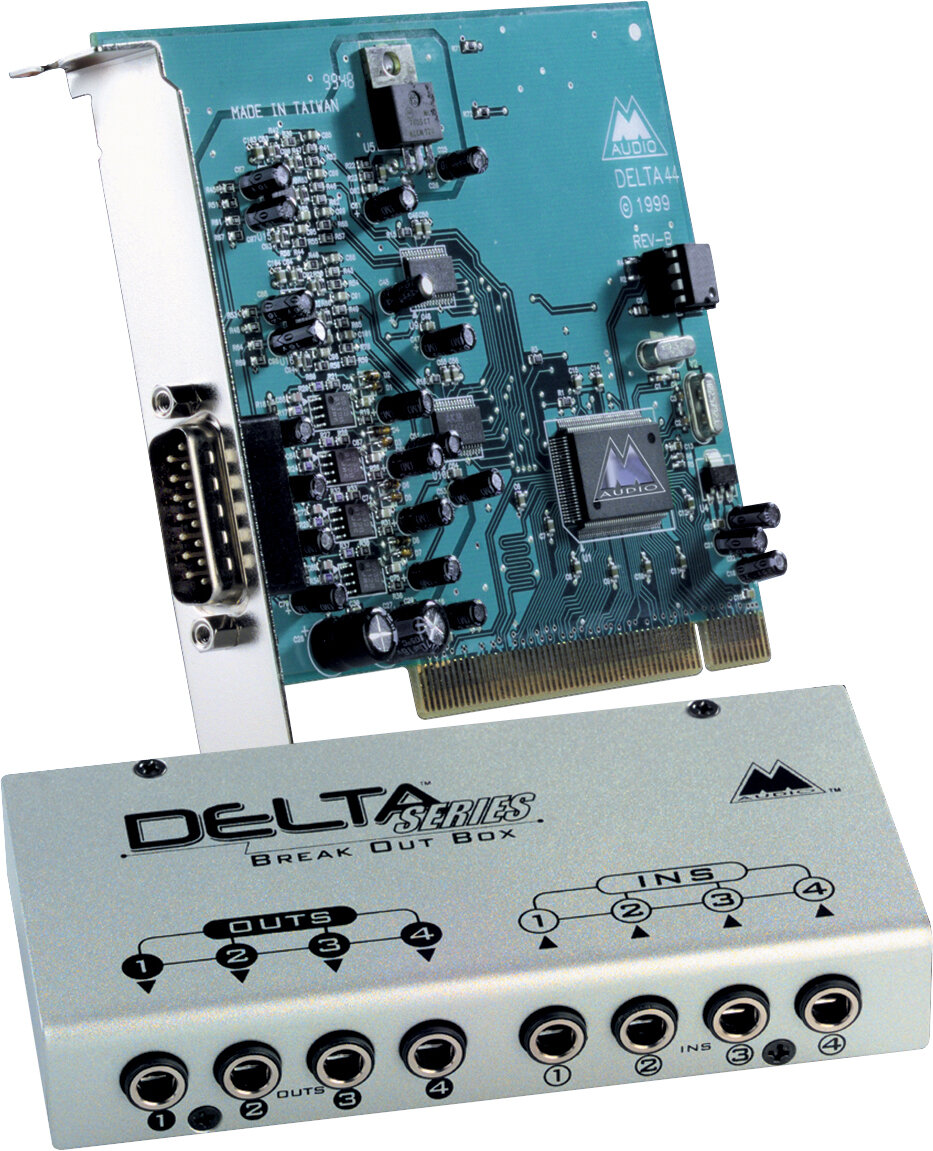

M-Audio Delta 44 PCI Interface

The Delta 44 offers the same features and high performance as the Delta 66, but is designed for the person who does not require S/PDIF digital I/O. The Delta 44 features the same 24-bit 96kHz converter section that makes the Delta 66 the envy of the audio card community. And like the Delta 66, the Delta 44's breakout box handles 4 balanced or unbalanced, +4dB or -10dB signal level analog inputs and outputs. Also included is the Delta control panel software, which configures the card and controls digital mixing and routing.

Features
4x4 24-bit/96kHz full-duplex recording interface.

Configured as a PCI Host card with external audio break-out box.

4x4 analog break-out box accepts balanced or unbalanced connections
on 1/4 in. tip-ring-sleeve (TRS) jacks.

Analog I/O configurable for +4dB or -10dB signal levels.

Measured D/A specs: 103dB (A-weighted) dynamic range, 0.0015% THD @ 0dBFS.

Measured A/D specs: 99dB (A-weighted) dynamic range, 0.0023% THD @ 0dBFS.

All data paths support up to 24-bit/96kHz performance, no upgrades necessary.

Powerful digital mixing, routing, and monitoring capabilities.

Drivers Include: Windows 95/98, Windows NT, ASIO, ASIO2, Direct Sound, EASI, Multi-card 95/98, and Multi-card NT (up to 3 in a system), Gigasampler, Mac Sound Manager, and Mac ASIO.

Same Day Music is an authorized dealer of M-Audio products.

Compatibility

ASIO 2
MME
Sound Manager
OMS
DirectX
GSIF 2
Mac OS X Core Audio / Core MIDI

Minimum System Requirements (PC)

Windows 98SE* / ME* / 2000 (SP4)* / XP (SP2)**
For 96kHz operation: Pentium III 500MHz w/ 128MB RAM
For 48kHz operation: Pentium II 400MHz w/ 64MB RAM
* No ongoing updates/support for Windows 98SE, Me or 2000
** Home and Professional Edition only. Windows Media Center Edition is not supported.

M-Audio suggests you also check the minimum system requirements for your software, as they may be greater than the above.

Minimum System Requirements (Mac)

G3/G4* 500MHz
G5 w/PCI-X expansion slots** - Incompatible exceptions
OS 9.2.2 w/128MB RAM, Opcode OMS 2.3.8 for MIDI
Mac OS X 10.2.8, 10.3.8 w/256MB RAM
Mac OS X 10.4.5, 10.5.1 w/512MB RAM
* G3/G4 accelerator cards not supported
** Intel based Mac Pro & DuelCore G5 with PCI-Express expansion slots not supported.
*** No ongoing updates/support for Mac OS 9 or Mac OS X 10.2.8

M-Audio suggests you also check the minimum system requirements for your software, as they may be greater than the above.

Same Day Music is an authorized dealer of M-Audio products.

Shipping Weights and Dimensions

Shipping Weight: 3 lbs

Shipping Dimensions: 10 x 9 x 3 in

PCI card with breakout box@4 x 1/4 in. TRS I/O jacks@Mac or PC compatible

Same Day Music is an authorized dealer of M-Audio products.
