M-Audio Delta 66 PCI Audio Interface

The Delta 66 boasts an incredible sounding converter section with 24-bit 96kHz operation. Its S/PDIF I/O makes it possible to perform digital transfers in and out of the system, useful in mastering to DAT or utilizing outboard FX via digital I/O. The breakout box handles 4 balanced or unbalanced, +4dB or -10dB signal level analog inputs and outputs. Also included is the Delta control panel software which configures the card and controls digital mixing, routing, and even SCMS (Serial Copy Management System) output on S/PDIF.

Features
6x6 24-bit/96kHz full-duplex recording interface

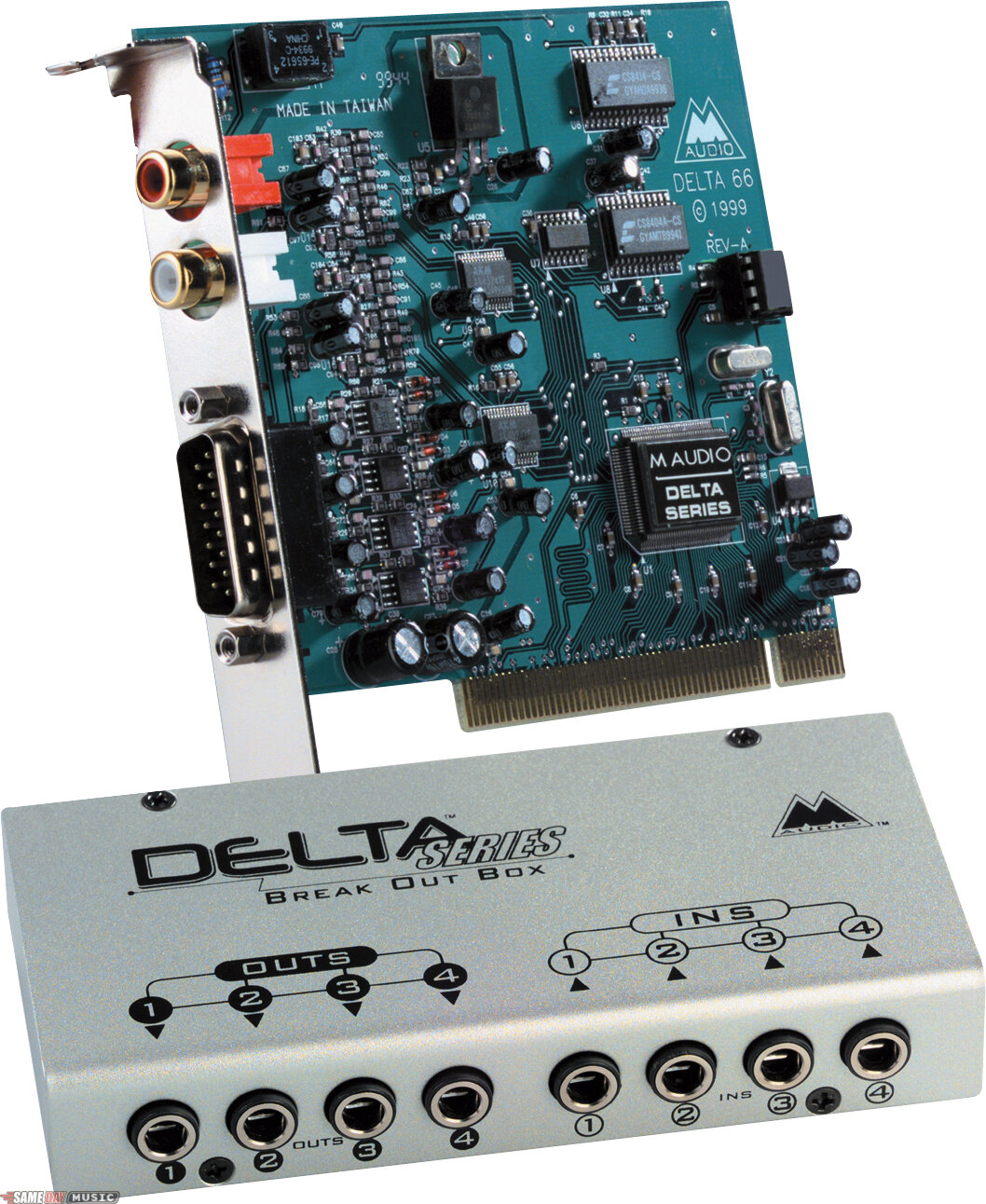

Configured as a PCI Host card with external audio break-out box

PCI card provides S/PDIF inputs and outputs on RCA jacks

4x4 analog break-out box accepts balanced or unbalanced connections on 1/4 in. TRS jacks.

Analog I/O configurable for +4dB and -10dB signal levels

Measured D/A specs:
103dB (A-weighted) dynamic range, 0.0015% THD @ 0dBFS

Measured A/D specs:
99dB (A-weighted) dynamic range, 0.0023% THD @ 0dBFS

All data paths support up to 24-bit/96kHz performance, no upgrades necessary

Powerful digital mixing, routing, and monitoring capabilities

Drivers include: Windows 95/98, Windows NT, ASIO, ASIO2, Direct Sound, EASI, Multi-card 95/98 and Multi-card NT (up to 3 in a system), Gigasampler, Mac Sound Manager, and Mac ASIO

Same Day Music is an authorized dealer of M-Audio products.

Minimum System Requirements for PC

Windows 95, 98, or NT

Pentium II 266MHz - (96kHz operation)

Pentium 200 MMX - (48kHz or less)

128 MB of PC100 RAM - (96kHz operation)

64 MB of SDRAM - (48kHz or less)

UDMA EIDE or SCSI HDD

Minimum System Requirements for Mac

G4, G3, or G3 accelerator

128 MB RAM for 96kHz operation

96 MB RAM for 48kHz operation
