    T-Rex PolySwitch Stereo AB Line Switcher Pedal

    True hardwire stereo A-B switch. Not only does PolySwitchAB let you split your stereo signal and switch between outputs. It also works "backwards."
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 16K7-4TWX

    Web Item #TRXPOLYSWITCH

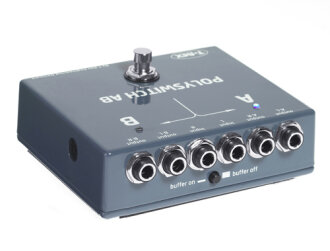

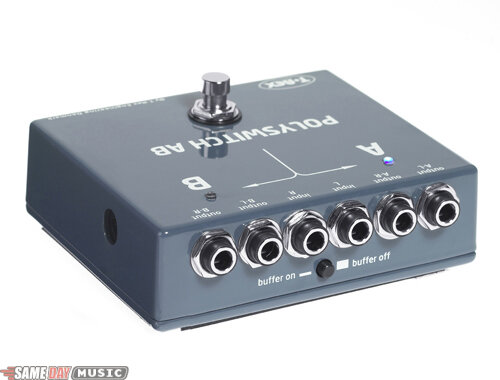

    T-Rex PolySwitch Stereo A/B Pedal

    More Resources

    Manuals and Documents: Manual Setups Specifications Sheet
    T-Rex Warranty: If you have additional warranty questions, please call the manufacturer at 866-832-8679
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Today
    •
    • 2 Day: $4
    • Overnight: $18
    SpeedPlay: on orders of
    $249
    $99 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    T-Rex PolySwitch Stereo A/B Pedal Product Description

    T-Rex Engineering is pleased to announce its breakthrough stereo PolySwitch AB - a true hardwire stereo A-B switch. PolySwitchAB is the perfect solution for guitarists looking to route their signal to two different setups - even in stereo - and easily switch between these.

    Precision versatility
    Not only does PolySwitchAB let you split your stereo signal and switch between outputs. It also works "backwards", letting you run two separate stereo instruments into a single amplifier or other signal destination. And with every input and output available in stereo, it's a great solution for keyboardists or anyone else needing to route a stereo signal to two destinations or two stereo signals to a single stereo in.

    Signal integrity
    As you'd expect from a T-Rex product, PolySwitchAB is specially engineered to protect the natural integrity of your sound - all the way through the signal path. True hardwire signal routing, top-grade electronics, and a built-in buffer switch for low-level signals caused by long cables, for instance, make sure you don't lose a single ounce of your precious tone.

    Same Day Music is an authorized dealer of T-Rex products.

    T-Rex PolySwitch Technical Description

    Specifications
    Input Impedance @ 1KHz with buffer OFF: 3,5Mohm

    Input Impedance @ 1KHz with buffer ON: 862Kohm

    Output Impedance @ 1KHz with Buffer OFF: >10Mohm

    Output Impedance @ 1KHz with Buffer ON: 120Ohm

    Power supply: 9V DC (Power tool 9)

    Minimum Power supply Voltage: 8V DC

    Maximum Power supply Voltage: 12,5V DC

    Current Draw @ 9V DC: 19mA

    Maximum input signal Vp/p With buffer OFF: Input = output. No limit

    Maximum input signal Vp/p With buffer ON: 4Vp/p

    Battery Type: 9V battery 6F22

    Battery Life: 5 to 8 hours

    External connectors: Input(L), Input(R), Out(A)left/ Right, Out(B)left/ Right

    Controls: On/Off, buffer

    Depth: 120mm

    Width: 110mm

    Height: 55mm

    Weight (excl. Battery): 430g

    Designed by the T-Rex guitar geniuses in Denmark with a 2 year unconditional warranty

    Same Day Music is an authorized dealer of T-Rex products.
    Shipping Weights and Dimensions
    Shipping Weight: 2 lbs
    Shipping Dimensions: 6 x 5 x 3 in
