    Universal Audio 2-1176 Twin Vintage Limiting Amplifier

    Classic Custom 1176LN Output Transformers. Matched FETs and Output Transformers. Stereo or mono operation. Rack space of Two 1176s in a 2U Rack Design.

    This product has been discontinued or is no longer sold by SameDayMusic.

    We recommend this product instead:

    Universal Audio 1176LN Limiting Amplifier

    $1,999

    The 1176LN Classic Limiting Amplifier is a modern reproduction, yet every effort was made to remain faithful to UA founder Bill Putnam Sr.'s visionary design and intentions. The original UA 1176LN was a major breakthrough in limiter technology--the first true peak limiter with all transistor circuitry offering superior performance with a signature sound--and set the standard for all limiters to follow. The ultra-fast attack time and trademark sound have lured legendary artists and studio moguls alike to the 1176LN--Peter Frampton, Joe Satriani, Joe Chiccarelli, Vance Powell, and Mike Elizondo are just a few names on a list that's continued to grow, for nearly 50 years. > More

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

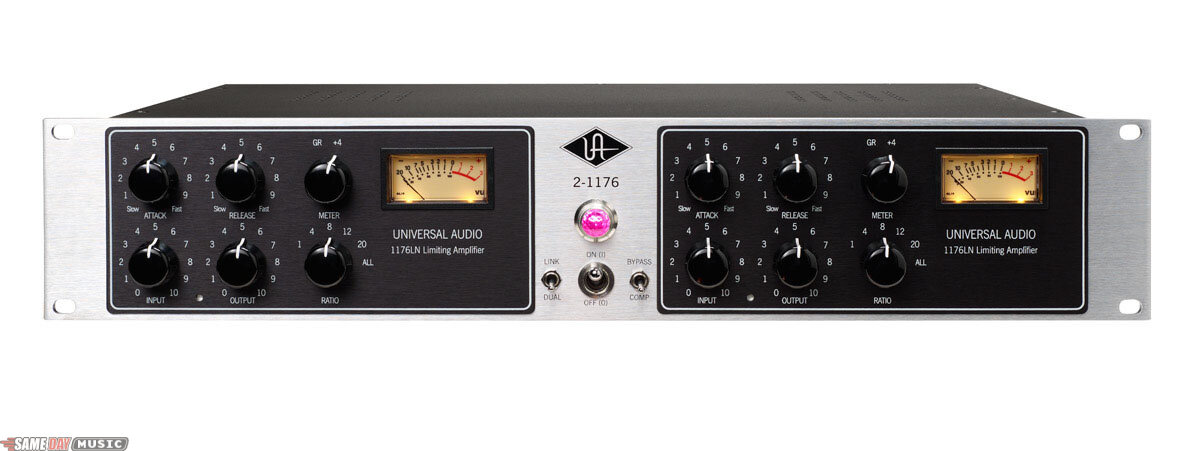

    Universal Audio 2-1176 Twin Vintage Limiting Amplifier Product Description

    Finally, a true stereo 1176! With over 2000 units already sold to date since the year 2000 re-birth of Universal Audio's 1176LN, it is clear the public's love affair with the legendary sound of the 1176 is still as passionate as ever.

    Features
    - Sound and Features of the Original 1176LN

    - Classic Custom 1176LN Output Transformers

    - Stereo or Dual Mono Operation

    - Totally Independent Compression and Gain Controls in Dual Mono Mod

    - Matched FETs and Output Transformers

    - Rack Space Convenience of Two 1176s in a 2U Rack Design

    The 2-1176 builds from the circuit design of UA's hugely successful 6176 Channel Strip and combines two 1176 channels from that unit -- an uncompromising design, with all the same components - stereo matched to boot!

    With the release of the 2-1176, UA once again put that sound into your rack but with twice the tone, twice the character and twice the compression -- at an unbelievable price, and half the space. As you would expect from UA, it also retains all the features and trademark sound of its ancestor, and switches easily between dual mono and stereo link.

    And yes - it does have an All-Button!

    Same Day Music is an authorized dealer of Universal Audio products.

    Universal Audio 2-1176 Technical Description

    Specifications
    Input Impedance: Selectable, 15k W or 600 W

    Output Load Impedance: 600 ohms, floating,

    External Connections: XLR connectors

    Frequency Response: +/-1 dB 20 Hz to 20kHz

    Gain: 40 dB, +/- 1dB

    Distortion: Less than 0.5% total harmonic distortion from 50 Hz to 15 kHz with limiting, at 1.1 seconds release setting. Output of +20 dBm with no greater than 0.5% T.H.D.

    Signal to Noise Ratio: Greater than 85 dB

    Attack Time: 20 microseconds to 800 microseconds

    Release Time: 50 milliseconds to 1.1 seconds

    Stereo Interconnection: Chan. A Attack and Release links to Chan. B via LINK mode

    Meter: dB gain reduction and dB output

    Power Requirements: 120/240 V

    Dimensions: 19-inch Rackmount chassis, 2U

    Weight (unboxed) 9.6 lbs.

    Same Day Music is an authorized dealer of Universal Audio products.
