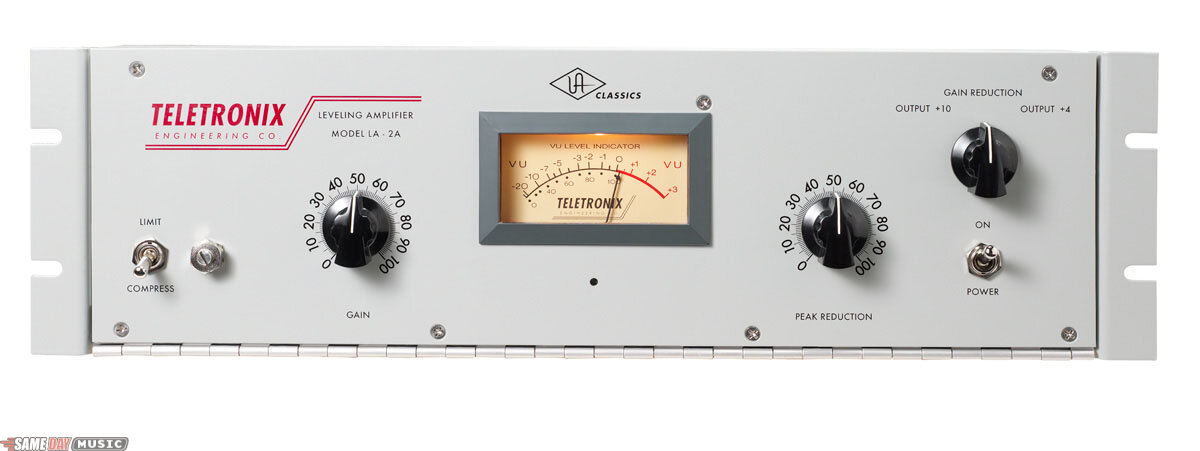

UA LA-2A Classic Leveling Amplifier

Audio professionals passionate about their compressors revere the LA-2A. The original was immediately acknowledged for its natural compression characteristics. A unique electro-optical attenuator system allows instantaneous gain reduction with no increase in harmonic distortion - an accomplishment at the time, still appreciated today.

Features
- True to the original in design, manufacturing and performance

- Lag free, distortion free optical attenuator system

- Distortion less than 0.5% THD

- 0 to 40 dB gain limiting

- Balanced stereo interconnection

- Frequency response 1 dB, 30 to 15,000 cps

- Output level of 10 dBm and 40 dB gain

- Low noise - less than 70 dB below +10 dBm output

Universal Audio now announces the rebirth of the Teletronix LA-2A, a Universal Audio Classics product. Painstaking care has been taken to ensure that every new LA-2A provides the performance and characteristics of the original. Each unit is hand built, each component carefully evaluated for authenticity. No expense has been spared to guarantee that this LA-2A will bring that classic sound to your recording. Demand the original. Accept no copy.

Same Day Music is an authorized dealer of Universal Audio products.

Specifications
Input Impedance: 50, 150, 250, 600 ohms

Output Load Impedance: 50, 150, 250, 600 ohms

External Connections: Jones Barrier terminals and XLR connectors

Frequency Response: +0/-1 dB 30 Hz to 15kHz

Gain: 40 dB +/-1dB

Input Level: +16 dB maximum

Output Level: +10 dB nominal, +16 dB maximum

Distortion Less: than 0.5% THD (0.25% typical) at +/-10 dBm

Noise: 70 dB below +10 dBm output level

Attack Time: 10 milliseconds

Release Time: 0.06 seconds for 50% release; 0.5 to 5 seconds for complete release

Meter: dB gain reduction and dB output

Power Requirements: 35 watts, 120/240 volts, 50/60 Hz

Environmental: Maximum operating temperature 160*F

Dimensions: 19-inch Rackmount chassis, 3U

Weight: 13 lbs.

Same Day Music is an authorized dealer of Universal Audio products.

Shipping Weights and Dimensions

Shipping Weight: 13 lbs

Shipping Dimensions: 24 x 10 x 12 in
