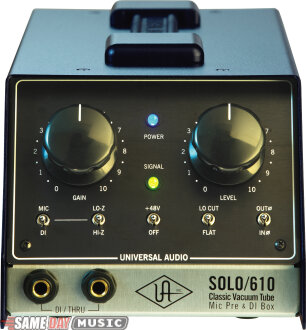

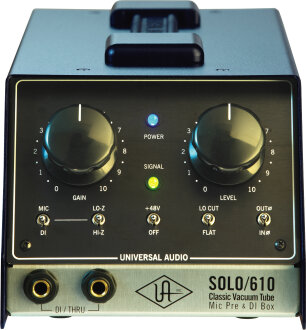

The SOLO/610 delivers the classic Putnam 610 console sound to the single channel format in a rugged, highly versatile form factor, at a price every project studio can afford. The all-tube SOLO/610 provides the silky vintage warmth of the original UA 610 console used by artists ranging from Sinatra to Van Halen. The SOLO/610 will flatter the cheapest to the most esoteric microphone with its signature sound. Unlike stationary rack gear, the SOLO/610 can be conveniently used in the control room or recording room, on stage or desktop, due to its portable "go anywhere" design. Functionally lean but sonically mean, the SOLO/ 610 was carefully created to maintain all of the character of its vintage predecessor, and has the same solid build and audiophile components professionals expect from its more expensive UA siblings like the 2-610 and M610.
The SOLO/610 offers Mic and DI inputs, and features Gain and Level control for a wide variety of clean to colored tonal shaping. Unlike its predecessors, the SOLO/610 has continuous a Gain control with even greater range, allowing for more precise gain structuring and doubles as input signal padding. The SOLO/610 has all the essential features like 48v Phantom Power, Lo Cut filtering, Phase Reverse, and for even greater tonal variety, maintains the 610's flexible dual impedance selection for both Mic and DI inputs. The SOLO/610 also includes essential DI features like Thru for when used in conjunction with an amplifier, plus Ground Lift and and a versatile Mic/Line level output switch. The SOLO/610 is hand-assembled by Universal Audio in the USA.
Features
Classic Putnam 610 console Mic Preamplifier and DI
Legendary all-tube sound finally at project studio price
Gain, Level, and impedance selection for maximum tonal variety
Portable design for studio, desktop or stage
Rugged construction-steel chassis
DI features like Thru and Mic/Line level output
UA build quality and heritage, hand-assembled in USA
Input Impedance;
Mic Input - Selectable 500 ohms (Lo-Z) or 2k ohms (Hi-Z)
DI Input - Selectable 2.2M ohms (Lo-Z) or 47k ohms (Hi-Z)
Frequency Response; 20 Hz to 20 kHz +/- 1 dB
Maximum Gain; 61 dB
Tube Complement; (1) 12AX7, (1) 6072
Maximum Mic Input Level; -12 dBu, 1.0% THD+N Ratio
Maximum Instrument Input Level; +4 dBu, 1.0% THD+N Ratio
Maximum Output Level into 600 ohms; +14 dBu, 1% THD+N Ratio
Maximum Output Level into 100k ohms; +18 dBu, 1.0% THD+N Ratio
Internal Output Impedance; 80 W
Recommended Minimum Load; 600 ohms
Mic/Instrument In Frequency Response; 20 Hz to 20 kHz, +/- 0.1 dB
Maximum Gain Instrument Input; 37 dB
Maximum Gain Mic Input; 55 dB (2k input), 60 dB (500 input)
Power Requirements; 100-130 VAC 200-240 VAC
Maximum Power Consumption; 18 watts
dimensions; H: 5 in. W: 5 3/4 in. L: 14 in.
Weight; 9 lbs.
