    Voodoo Lab ISO-5 Pedal Power Isolated Power Supply

    The Voodoo Lab Pedal Power ISO-5 is an isolated power supply for powering guitar pedal effects and accessories.
    The fastest way to the lowest price, guaranteed!
    Found a lower price? We'll beat it, fast.
    Call 866-SHIP-SDM (866-744-7736) with service code 13ZR-M18H

    Web Item #VDLISO5

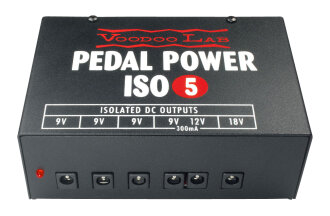

    Voodoo Lab Pedal Power ISO-5 Supply

    More Resources

    Manuals and Documents: Manual
    Voodoo Lab Warranty: Voodoo Lab Warranty ´╗┐Voodoo Lab offers a full five-year warranty on their products. If you have additional warranty questions, please call the manufacturer at 707-545-0600
      Pay only half today and get playing faster. Pay the remainder in 60 days -
    only if you're 100% satisified.
    Just choose the SpeedPlay option at checkout.
    In Stock | Will Ship Wed
    •
    • 2 Day: $4
    • Overnight: $22
    SpeedPlay: on orders of
    $249
    $109 Seen a lower price?
    This product ships to: Can ship to United States Can ship to Canada Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Voodoo Lab Pedal Power ISO-5 Isolated Power Supply Product Description

    The Voodoo Lab Pedal Power ISO 5 is an isolated power supply for powering guitar pedal effects and accessories. It's the ultimate compact solution for smaller pedalboards, rack shelves, or even as an additional power supply for larger boards. With five isolated, filtered and regulated output sections, the Voodoo Lab ISO 5 keeps even the most sensitive vintage and boutique analog pedals dead quiet.

    The Voodoo Lab Pedal Power ISO 5 includes a high-current output which will properly power modern digital power-hungry effects like those from Eventide, Line 6, and TC Electronic. There's also a dedicated 18V output for those pedals which need the higher voltage for extra headroom.

    Designed to meet the needs of professional users, the Voodoo Lab Pedal Power ISO 5 will provide clean, consistent power, even with the poor AC line conditions often found on stage. Completely isolated output sections eliminate ground loops and unwanted interactions between effects, resulting in lower noise and noticeably improved tone.

    Features

    - Five isolated outputs
    - Compatible with all battery operated pedals
    - Includes high current 9V and 12V outputs, plus dedicated 18V output
    - Powers Boss Twin, Eventide, Line 6 modelers, and TC Electronic Nova pedals
    - Linear regulation and toroidal transformer for lowest possible noise
    - Compact design fits small pedalboards and rack shelves
    - Includes cables and detachable AC line cord
    - Engineered and handmade in the USA
    - 5-year warranty

    Short Circuit Protection

    Every output on Pedal Power ISO 5 is individually short-circuit protected. This means that if you have a short in a power cable, or one of your pedals malfunctions, ISO 5 will turn off the power to only that pedal. All other outputs will continue to function normally with no long-term damage.

    Same Day Music is an authorized dealer of Voodoo Lab products.

    Voodoo Lab Pedal Power ISO-5 Isolated Power Supply Technical Description

    Input:
    - Detachable IEC (computer-type) line cord
    - 120V 50/60Hz

    Outputs:
    - 5.5x2.1mm barrel connectors center negative (Short circuit protected)
    - 9VDC (3) - 100mA
    - 9/12VDC - 300mA
    - 18VDC - 100mA

    Included Cables:
    - 5.5x2.1mm right angle barrel connectors (4)
    - 5.5x2.1mm right angle to straight barrel connector (1)
    - 5.5x2.5mm right angle red barrel (1)
    - 3.5mm right angle mini plug (1)

    Physical:
    - 4.9 wide x 3.4 deep x 1.8 inches tall (124 x 86 x 44 mm)

    Weight: 1.24 lbs (0.56 kg)

    Special: Toroidal power transformer

    Same Day Music is an authorized dealer of Voodoo Lab products.
    Shipping Weights and Dimensions
    Shipping Weight: 3 lbs
    Shipping Dimensions: 11 x 8 x 2 in
