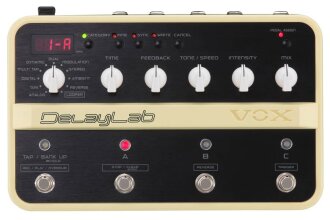

    Vox DelayLab Multi Delay Pedal
    View Larger Image

    More Resources

    Vox Warranty: If you have additional warranty questions, please call the manufacturer at 631-390-6500
    Order Now | Limited Qty
    • 2 Day: $4
    • Overnight: $24
    This product ships to: Can ship to United States Can ship to Puerto Rico Can ship to APO/FPO

    60-Day Return Policy Applies on This Item - Get it shipped today and if it isn't perfect, send it back!

    Payment Options We DO NOT COLLECT TAX except on orders shipped to New Jersey.

    Vox DelayLab Multi-Delay Pedal Product Description

    The Vox DelayLab is the ultimate delay effect, with a vast array of features and abilities. Instantly brings any guitarist's inspiration to life! Delay effects are a must for satisfying the individualistic creativity of any guitarist. Their long history encompasses both the analog and digital eras. Many classic delay units have played a prominent role through the years, contributing to numerous memorable phrases, generating dreamlike spaces, and producing psychedelic performances, both on stage and in the studio. These sought-after units - as well as delays destined to become standards for the coming generation - are all included in the VOX DelayLab.

    In addition to 30 diverse delay effects, the DelayLab offers a stereo looper that can capture up to 28 seconds, 30 stage-ready programs, and a wealth of extras, all packed into a sturdy diecast body. With an expressly vintage vibe, the easy-to-use front panel offers satisfying hands-on control over a diverse array of sounds and features. In short, the DelayLab delivers virtually infinite potential, befitting its status as the standard for effect processors.

    From Vintage to Mainstays and Beyond

    Over the years, numerous delay effects have come along; tape echoes, analog delays, digital delays, etc. Each has varied by type, manufacturer, and internal structure. From the distinctive distortion and warmth of tape, the unique tonal change produced by an analog BBD (Bucket Brigade Device) circuit, to the lo-fi sound typical of low-resolution digital circuitry, the DelayLab delivers perfect models for a carefully selected set of historically significant delay units that have fascinated guitarists through the years. There are also numerous special types of effects such as pitch change, panning, and reverse. Parameters not found on the original models are also provided, offering unique expressive possibilities that go beyond simply modeling the classic units of the past.

    Delay Innovations

    The DelayLab also contains numerous practical and original delay effects that will inspire any guitarist. Dual Delay makes effective use of two delays; Distortion Delay adds distortion to only the delayed sound; Reverse Delay can adjust the mix ratio between forward and reverse sound; Space Delay applies a string-like tonal effect to deepen the sound. An incredible array of possibilities are available, as any of these effects are capable of creating aggressive and radical sounds, as well as being used to add a subtle sense of depth.

    Integrated Stereo Looper

    The DelayLab provides extensive looper capabilities that can be combined with the delay effects to surpass the abilities of the numerous dedicated units that have been in the spotlight of guitar performance in recent years. The DelayLab goes well beyond simply layering sounds by providing features that open up creative possibilities - such as reverse playback, triggered playback, and using an expression pedal to control various parameters. There are also three types of delay that can be used simultaneously with the looper. Plus, the DelayLab is able to create performances overflowing with originality by adjusting the L/R delay times independently, or by attenuating the volume of the looped phrases each time you overdub so that the overdub will stand out.

    Thirty Stage-Ready Preset Programs

    The thirty preset programs take full advantage of the DelayLab's extensive features and parameters. Editable and re-writable, these programs range from simple and versatile types, to complex and distinctive effects. There are also programs that reproduce the delay sound of famous guitarists as heard on classic recordings.

    Preset Programs

    30 types: Analog Delay, Saturated Delay, Stereo Analog Delay, Echo Plus, Tube Echo, Multi Head, Stereo Digital Delay, Lo-Fi Delay, Pitch Shifting Delay, Multitap Delay, Rhythmic Delay, Multitap Filter Delay, Ducking Delay, Sweep Delay, Distortion Delay, Parallel Delay, Series Delay, Dual Band Delay, Modulation Delay, Filter Delay, Phaser Delay, Cross Delay, Panning Delay, Left Center Right Delay, Space Delay, Reverb Delay, Early Reflections Delay, Reverse Stereo Delay, Reverse Analog Delay, Reverse Filter Delay,

    Classic Song Programs: Total = 10 Programs Welcome to the Jungle - Lateralus - Cliffs of Dover - Rope - Walking On The Moon - Where The Streets Have No Name - Run Like Hell - 2112 - Lovers in Japan - Give It Away

    Intuitive Interface

    All of the delay effects can be controlled simply using five knobs, ensuring that creating complex delay sounds is easy and intuitive. All parameters can also be assigned to an optional expression pedal for realtime control as you play, allowing the creation of even more creative performances. Superb specs, surprising features

    The DelayLab boasts studio-quality specifications to guarantee flawless audio fidelity, including 24-bit/48 kHz processing. Innovative Seamless Bypass and Seamless Program Change features ensure a smooth transition in sound when you bypass the unit or switch between programs. Other convenient functions include a Sync Mode which makes it easy to set up complex polyrhythmic effects, and the Kill Dry feature which completely mutes the direct sound. In every respect, the DelayLab is designed to satisfy the guitarist who insists on superior audio response rival the finest equipment available.


    - Thirty types of delay effects, ranging from vintage to standards to originals
    - Precision modeling of vintage delay effects such as analog BBD devices and tape echo
    - Numerous original types such as Dual Delay and Distortion Delay offer expressive power
    - Stereo Looping can capture up to 28 seconds; multiple variations and types
    - Combine Loop and Delay effects simultaneously for exciting performances
    - Thirty diverse rewritable preset programs, ready for immediate use
    - Delay time is adjustable in 1 ms steps, to a maximum of four seconds
    - Easy access to multiple parameters allows the creation of complex effects
    - All parameters can be controlled using an expression pedal [optional]
    - Sync Mode allows poly-rhythmic effects to be created quickly and easily
    - Seamless Program Change feature ensures smooth transitions
    - Advanced Bypass function with decay avoids abrupt effect cut-offs
    - High-quality 24-bit/48 kHz audio sampling rivals professional equipment
    - Diecast metal body stands up to hard use on stage
    - Stereo Inputs; Stereo Outputs (all 1/4")
    - Assignable Pedal Control input

    Same Day Music is an authorized dealer of Vox products.

    Vox DelayLab Multi-Delay Pedal Technical Description

    - Delay Effects: 30 types
    - Classic Song Programs: 10 Programs
    - Looper Delay Effects: 3 types: Looper (Digital Delay, Analog Delay, Space Delay)
    - Programs: 30
    - Audio Input: R, L/MONO
    - Audio Output: R, L/MONO
    - Signal processing: A/D Converter = 24 bit, D/A Converter = 24 bit, Sampling Frequency = 48 kHz
    - Power supply: AA alkaline battery x 6, (Option) AC Adapter
    - Current consumption: DC9V 200 mA (Typical)
    - Dimensions (W x D x H):260 x 164 x 66 mm / 10.23 x 6.45 x 2.59 inches
    - Weight: 1.5 kg / 52.91 Oz.
    - Included items: AA alkaline battery x 6 for verifying operation
    - Options:
    - XVP-10 Expression/Volume Pedal
    - EXP-2 Foot Controller
    - AC Adapter
