Wi Digital AudioLink JMWAL35MP Digital Wireless System

The Wi Digital AudioLink JMWAL35MP digital wireless system is the first stereo digital wireless system ever to combine all the features required for musical instruments, audio monitoring, MAC, PC, Tablet PC, iPad, DJ, virtual instruments, audio monitoring, silent practice, wireless studio audio setups and audio line level applications in a small, rugged, lightweight design. The entire system can fit into the palm of your hand!

Package Includes:

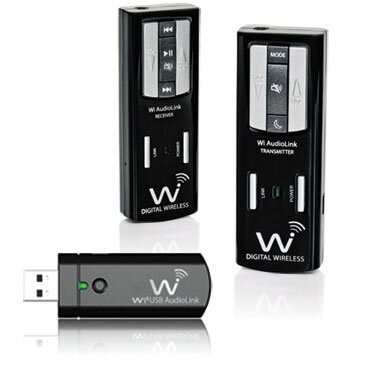

- One AudioLink Transmitter with 1/8" TRS input for instruments
- One AudioLink Receiver
- One JMUST01 AudioLink USB Transmitter for direct connection to PCs, Macs, USB-equipped audio mixers, keyboards, or DJ controllers
- Two 1/8" to 1/4" TRS Y-Split Stereo Cable
- Two 1/8" to 1/4" TRS Mono Cable
- One 1/8" to 1/8" TRS Stereo Cable & 1/4" Adapter
- USB Power Cable
- Universal USB Power Adapter
- Hard Shell Carrying Case
- User Guide and Quick User Guide

This visually unobtrusive, rugged, wearable system, offers intuitive function buttons and easy-to-read LEDs that display operation mode, power, and battery life status. This powerful, dual internal antennas, frequency diversity, 2.4GHz stereo digital wireless system operates without radio frequency (RF) interference inherent in UHF/VHF systems and provides up to 100 feet of secure, uncompressed 16bit, 48kHz CD quality wireless audio connectivity with wide15Hz to 20kHz frequency response that delivers crisp highs and thundering low tones that will satisfy the most demanding user.

The included JMUST01 USB AudioLink Stereo Digital Wireless transmitter ( 2.0 plug-and play audio interface), is designed to wirelessly integrate your MAC, PC, Tablet PC and iPad on stage, in your studio or at home with your musical gear. This dynamic solution puts all of your computer, TabletPC and iPad essential audio controls including volume, mute, track control, and audio signal routing control in the palm of your hand.

Same Day Music is an authorized dealer of Wi Digital Systems products.

- Transmission Format: 2.4 GHz Digital Wireless

- Bit Rate: 16-bit, 48 kHz stereo Quality (Uncompressed Audio)

- Frequency Response: 15Hz - 20kHz

- Frequency Selection: Auto

- Connectors: 1/8 in. TRS Stereo

- Input Impedance: 1 M ohm

- Max Input Level: 3V RMS

- Output Impedance: <10 ohm

- Max Output Level: 700mV RMS

- SNR: >89 dB

- Distortion: 0.12% THD

- Antenna: Two internal Antennas (May not be dependent on line sight, Range my very due to local conditions)

- Wireless Range: > 100 Feet

- Input Support: Passive Guitar, Active Guitars and Stereo/Mono Line-in

- Audio Signal Routing: One transmitter can route audio signal to eight (8) receivers

- Rechargeable Battery Life: 4 - 6 Hours (10-13 hours with optional AA battery power booster)

- Power Input: 5V DC, 500 mA (USB Bus Power)

- Maximum Units Operating at the Same Time: 8

- WiFi Safe: Yes!

- Mounting: Metal Belt Clip

Same Day Music is an authorized dealer of Wi Digital Systems products.

Shipping Weights and Dimensions

Base Item

Shipping Weight: 2 lbs

Shipping Dimensions: 9 x 5 x 3 in
