    Whiteridge Industrial CRM-1 Rack Mount Monitor

    This product has been discontinued or is no longer sold by SameDayMusic.

    Shop our website for related products:

    (In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

    FIND SIMILAR PRODUCTS

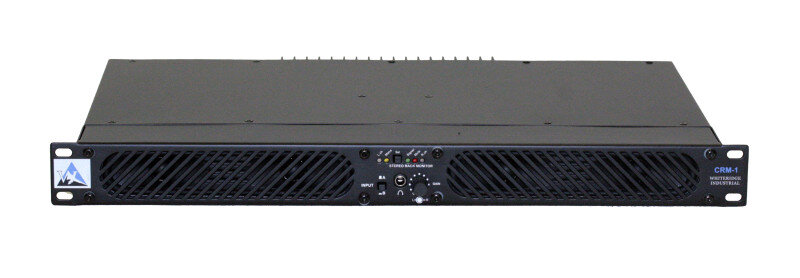

    Whiteridge Industrial CRM-1 Rack Mount Monitor Product Description

    The Whiteridge Industrial CRM-1 rack mount monitor was designed for industrial 24 hour use. The CRM-1 utilizes the latest technology in both speaker drivers and electronic circuitry.

    The CRM-1 is the perfect speaker amplifier for machine rooms, VTR monitoring, surveillance, mobile and stationary control rooms, theme park applications or any situation where monitoring is needed and space is tight. The unit is a 1 rack space high industrial design, utilizing robust construction for around the clock operation. The aluminum front panel has a multitude of user options so that the audio output may be configured for the application at hand. The Whiteridge CRM-1 employs a unique driver technology that makes frequency response outstanding.

    Features:

    - Two stereo balanced 1/4 inputs with (4) XLR/1/4"
    - Neutrik combo connectors.
    - High intensity multi colored LEDs for mode tallies.
    - On board electronic matrix for switching for: L Channel only, R Channel only, Mono, Stereo, and Mute.
    - Front panel stereo Gain control.
    - Front panel headphone jack with gain control; mutes speakers when used.
    - A/B input select switch.
    - Signal Presence Indicator that changes with intensity of audio input.
    - Multi-line frequency conversion possible with on-board 3 voltage transformer.
    - 2x 15-watt into 8 ohms amplifiers.
    - Special designed drivers providing 100Hz-15K frequency bandwidth

    Same Day Music is an authorized dealer of Whiteridge products.

    Whiteridge Industrial CRM-1 Rack Mount Monitor Technical Description

    - Input impedance: Combo XLR input 78K balanced
    - Input impedance: Combo Phone input 20K balanced
    - Max input level: Combo XLR +24 dBu balanced
    - Max input level: Combo phone jack + 13.8 dBV (+15.8 dBu balanced)
    - Common mode rejection ratio: 40 dB typical at 60 Hz
    - Nominal input level: Combo XLR + 4 dBu
    - Nominal input level: Combo phone jack -10 dBV (-8.2 dBu)
    - Power Output per Power Amp: 15 watts into 8 ohms at 1 kHz at 0.03 percent THD Both channels driven
    - Power output each headphone output: 10mW into 50 ohms at 1 kHz at 0.06 percent THD Both channels driven
    - Sensitivity Combo XLR Input: 82 dB SPL at 1m at -10dBu (Volume Max) Stereo Mode 500 to 2 kHz band limited pink noise input
    - Sensitivity Combo Phone Input: 82 db SPL at 1m at -24dBV (Volume Max) Stereo Mode 500 to 2kHz band limited pink noise input
    - Frequency Response: 100 Hz to 20 kHz
    - Input Signal LED threshold: -20 dBu
    - Signal to Noise ratio: 90 dB
    - Dimensions (WxHxD): 19 x 1.75 x 10 inches
    - Weight: 10 lbs

    Same Day Music is an authorized dealer of Whiteridge products.
